Limit Switch Signals (Section 24)

For aid in testing limit switch signals refer to illustration. See Fig 1 -Fig 4 .

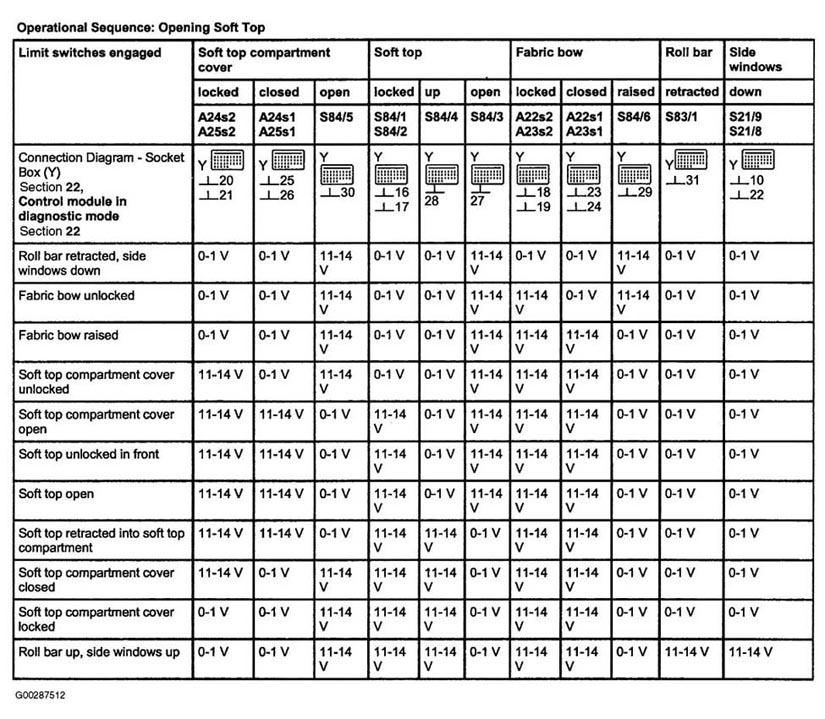

Fig 1: Operational Sequence Opening Soft Top

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

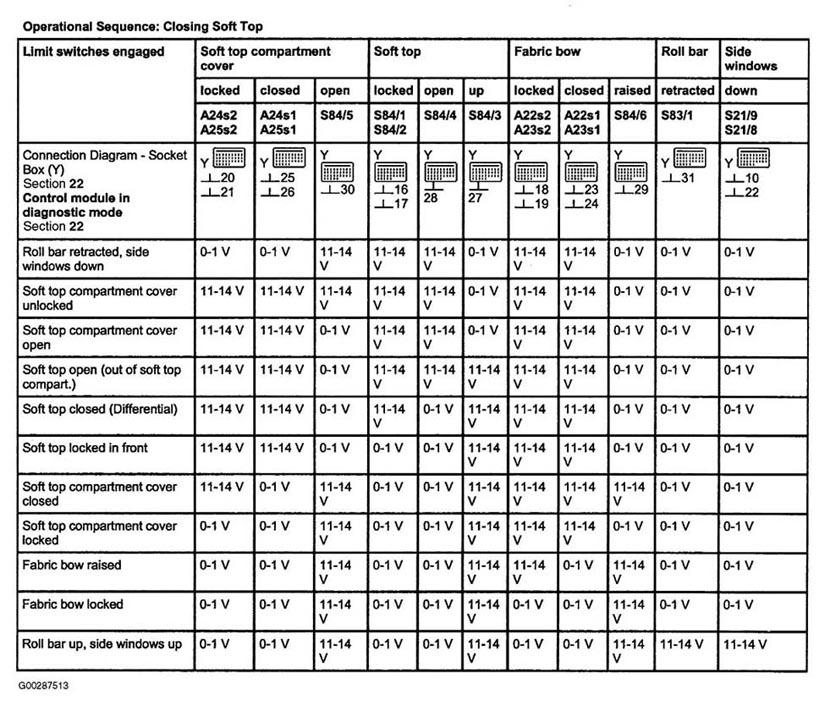

Fig 2: Operational Sequence Closing Soft Top

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

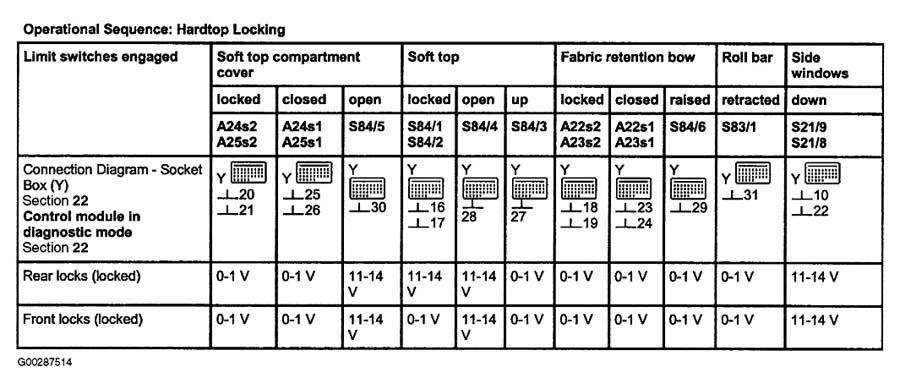

Fig 3: Operational Sequence Hard Top Locking

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

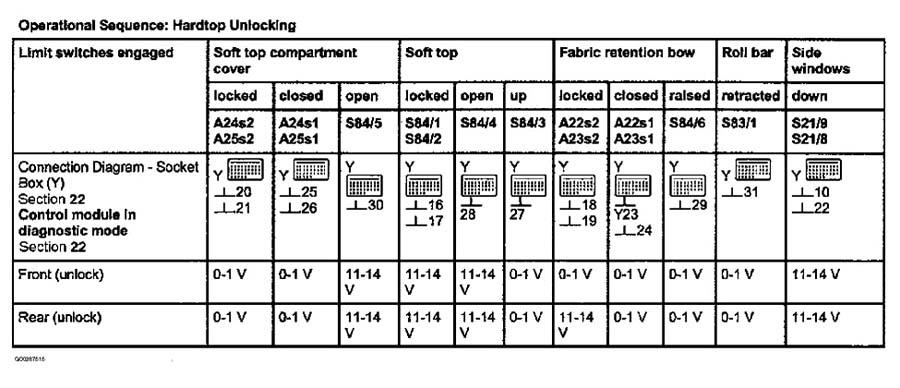

Fig 4: Operational Sequence Hard Top Unlocking

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
