Valve Blocks

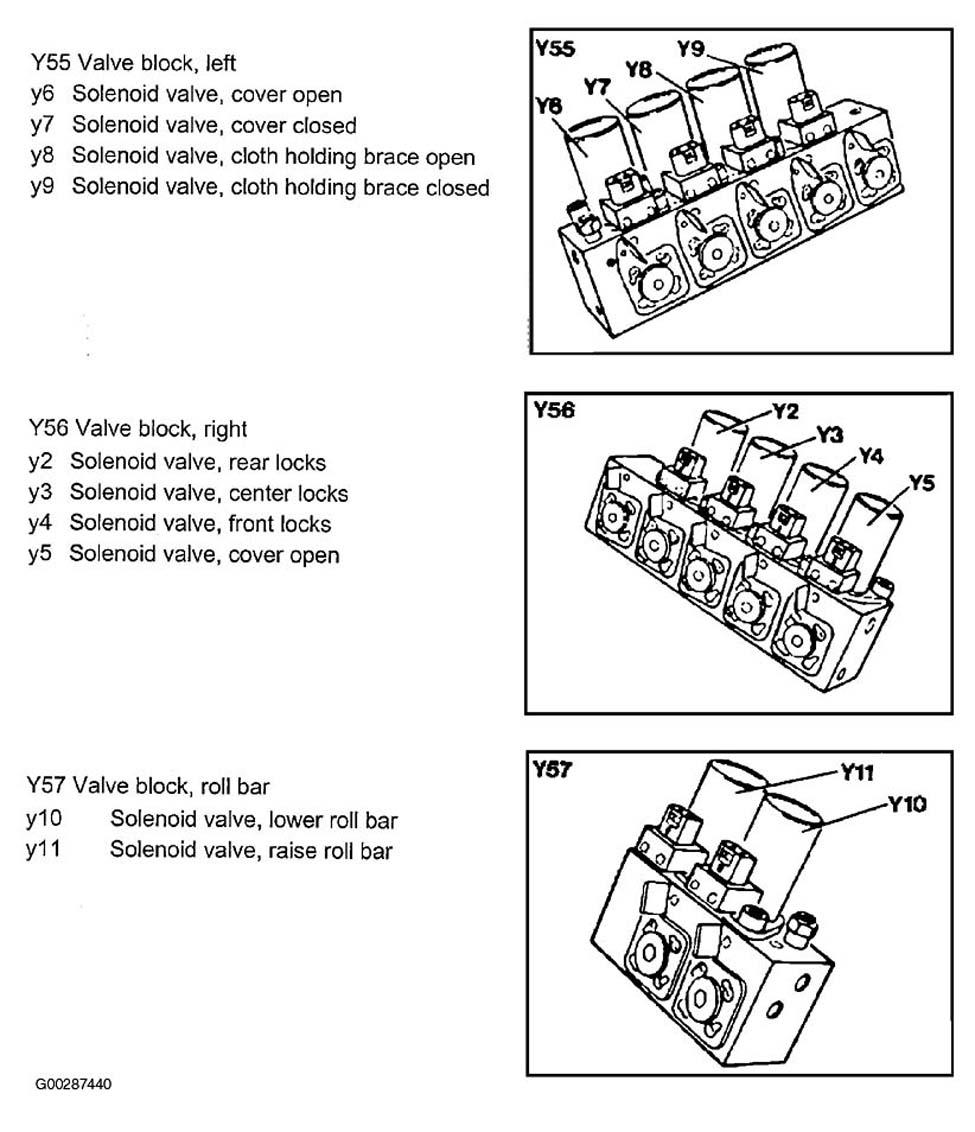

Solenoid valves are integrated into the valve blocks. In some cases these are consolidated to form one assembly. The allocation of the solenoid valves and the connections is indicated with numbers on the retaining plates. See Fig 1 .
Solenoid valves are integrated into the valve blocks. In some cases these are consolidated to form one assembly. The allocation of the solenoid valves and the connections is indicated with numbers on the retaining plates. See Fig 1 .
