Hydraulic Components: Solenoid

Solenoid valves consist of 3/2 way solenoid valves designed as insert cartridges. See Fig 1 .

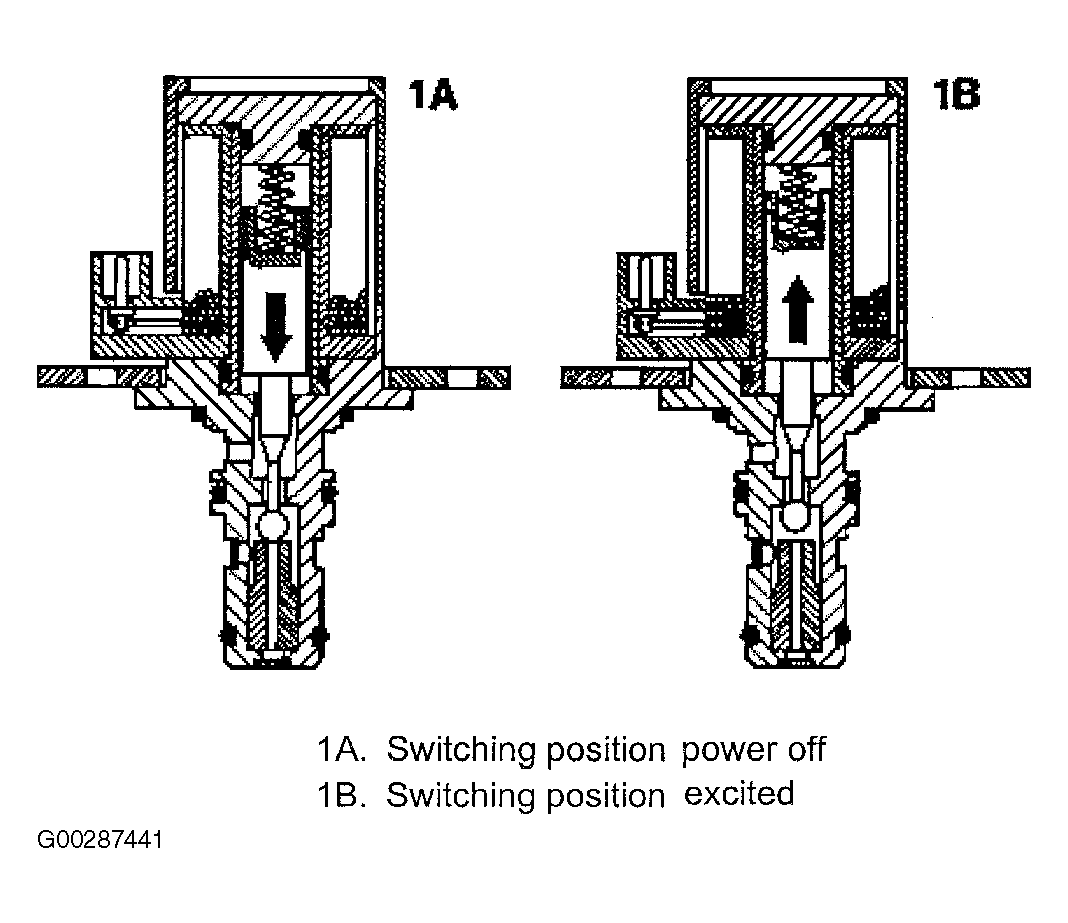

Fig 1: Identifying Solenoid Valves Switching Positions

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
