Hydraulic Line Connection Fittings

Hydraulic lines are connected to the valve blocks and distributors with rotary slide fittings, and to the cylinders with safety slide fittings. Supply lines from pumps to valve blocks are fastened with threaded fittings. See Fig 1 and Fig 2 .

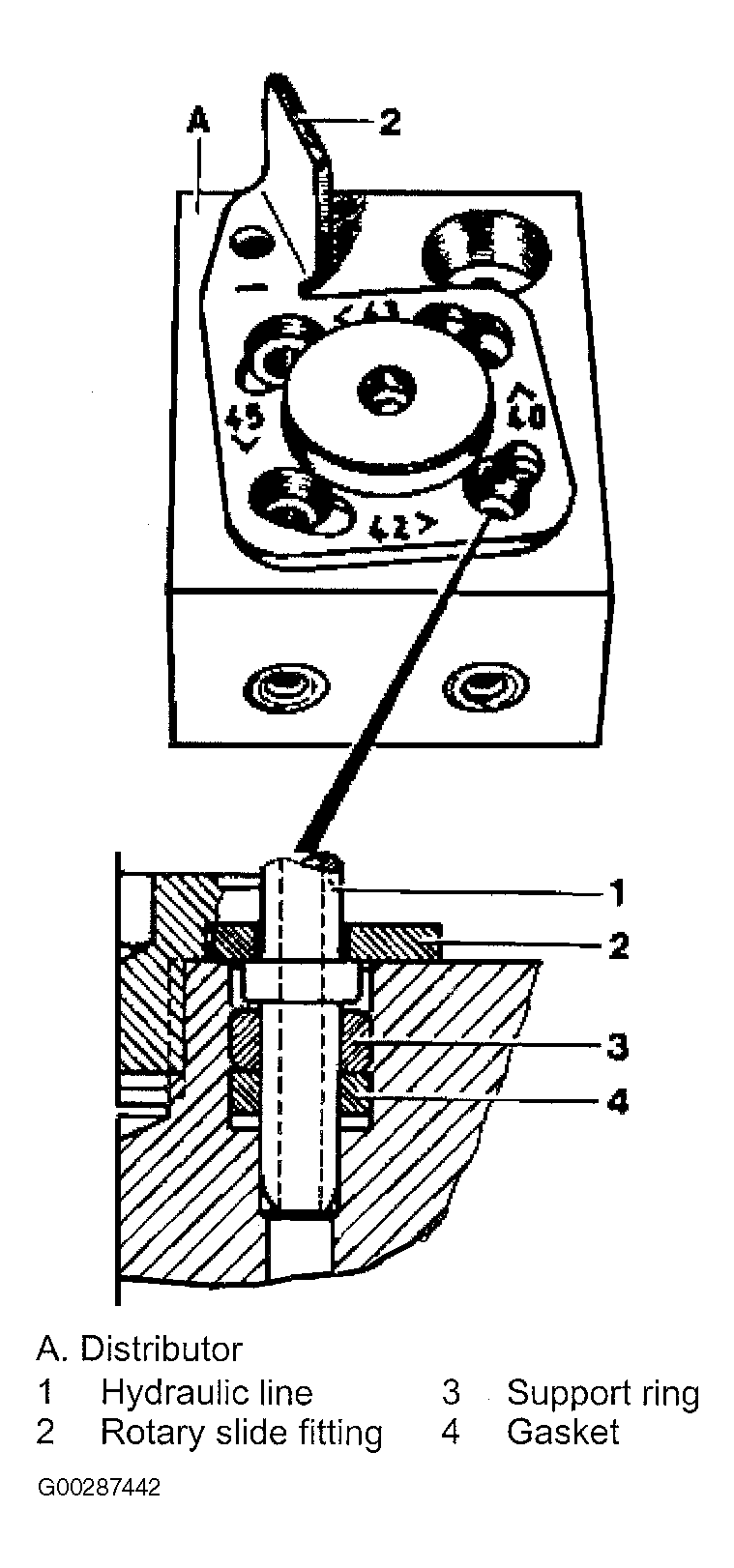

Fig 1: Identifying Hydraulic Distributor Line Connection Fittings

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

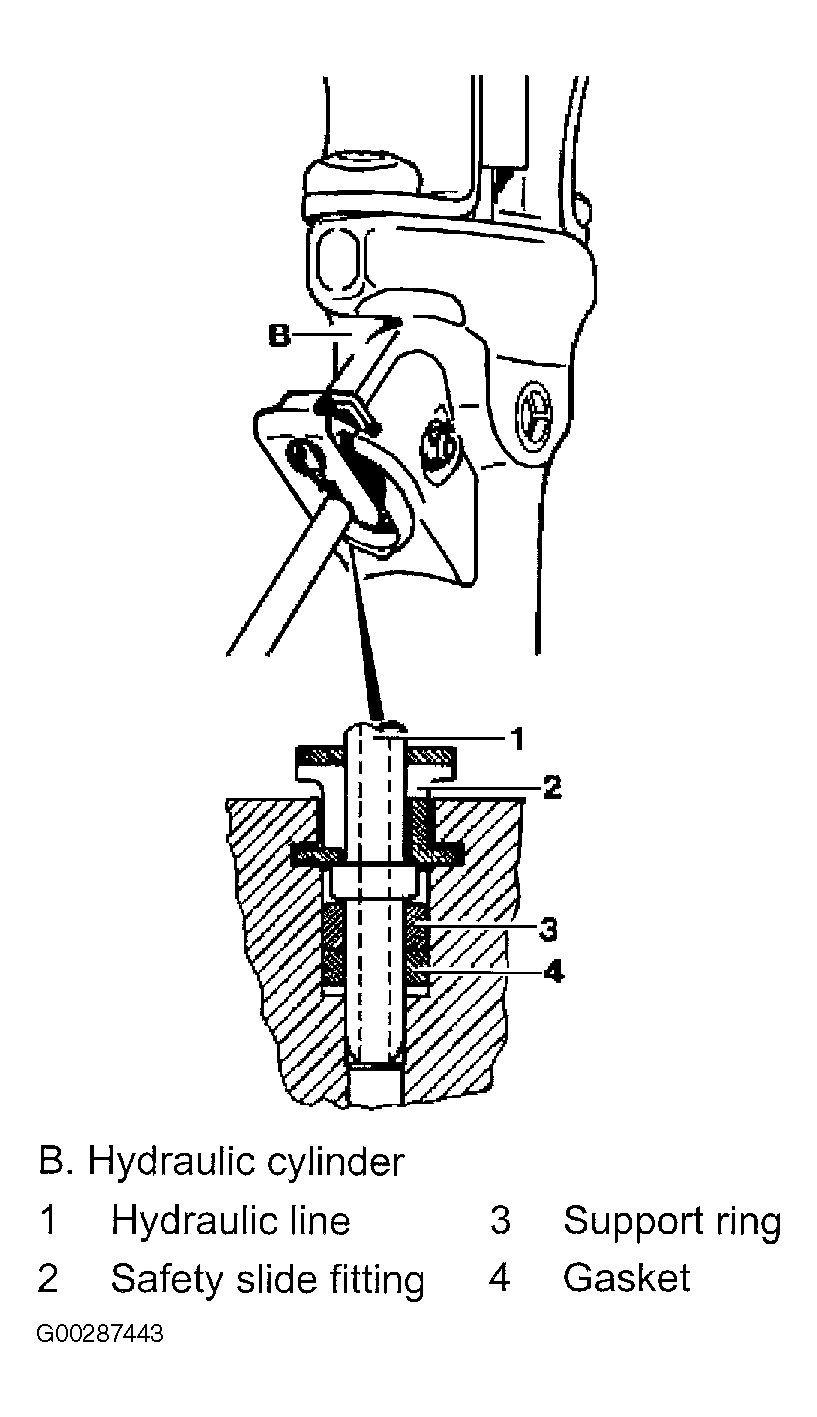

Fig 2: Identifying Hydraulic Cylinder Line Connection Fittings

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
