Hydraulic Cylinders

There are 13 double-acting cylinders and 2 single acting cylinders are used for actuation of the entire system. See Fig 1 .

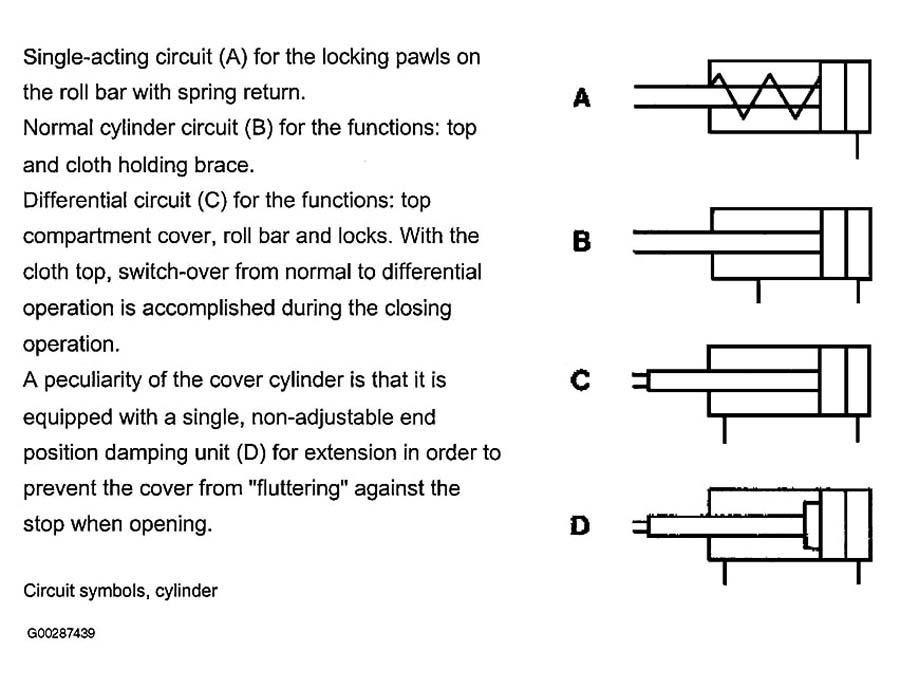

Fig 1: Description & Operation Of Hydraulic Cylinders

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
