Hydraulic Components: Catches

Catches are designed so that they are locked mechanically in the closed state. Hydraulic system is used only for actuation. See Fig 1 -Fig 3 .

Fig 1: Identifying Front Catch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

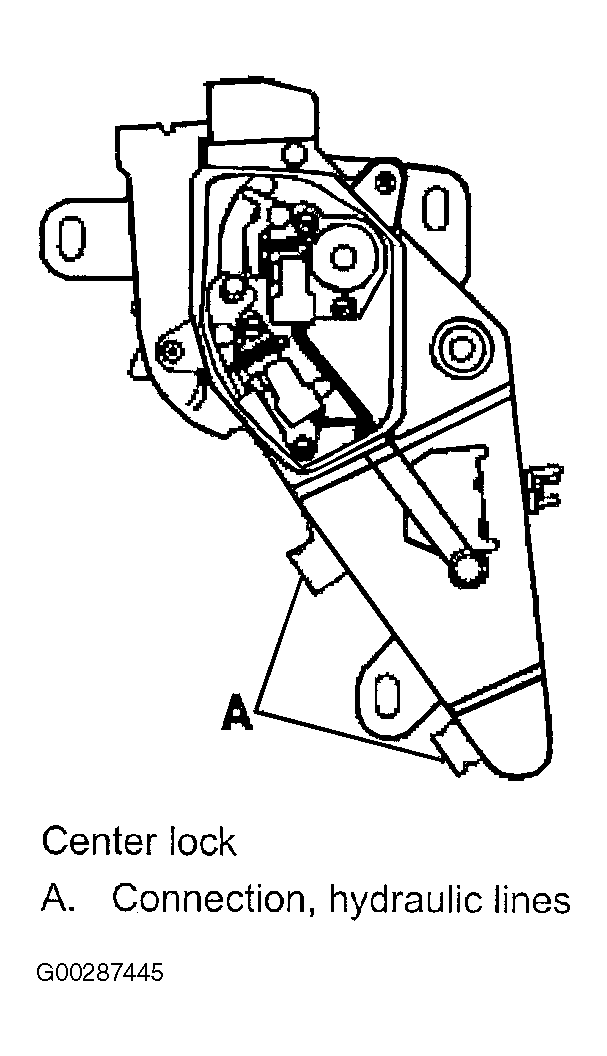

Fig 2: Identifying Center Catch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

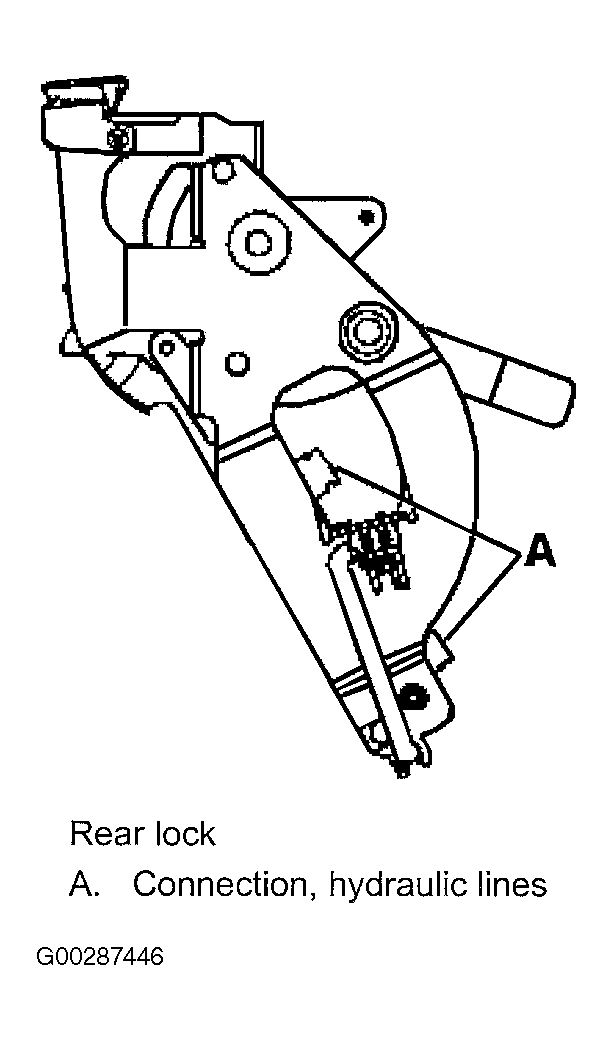

Fig 3: Identifying Rear Catch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
