Tension Soft Top

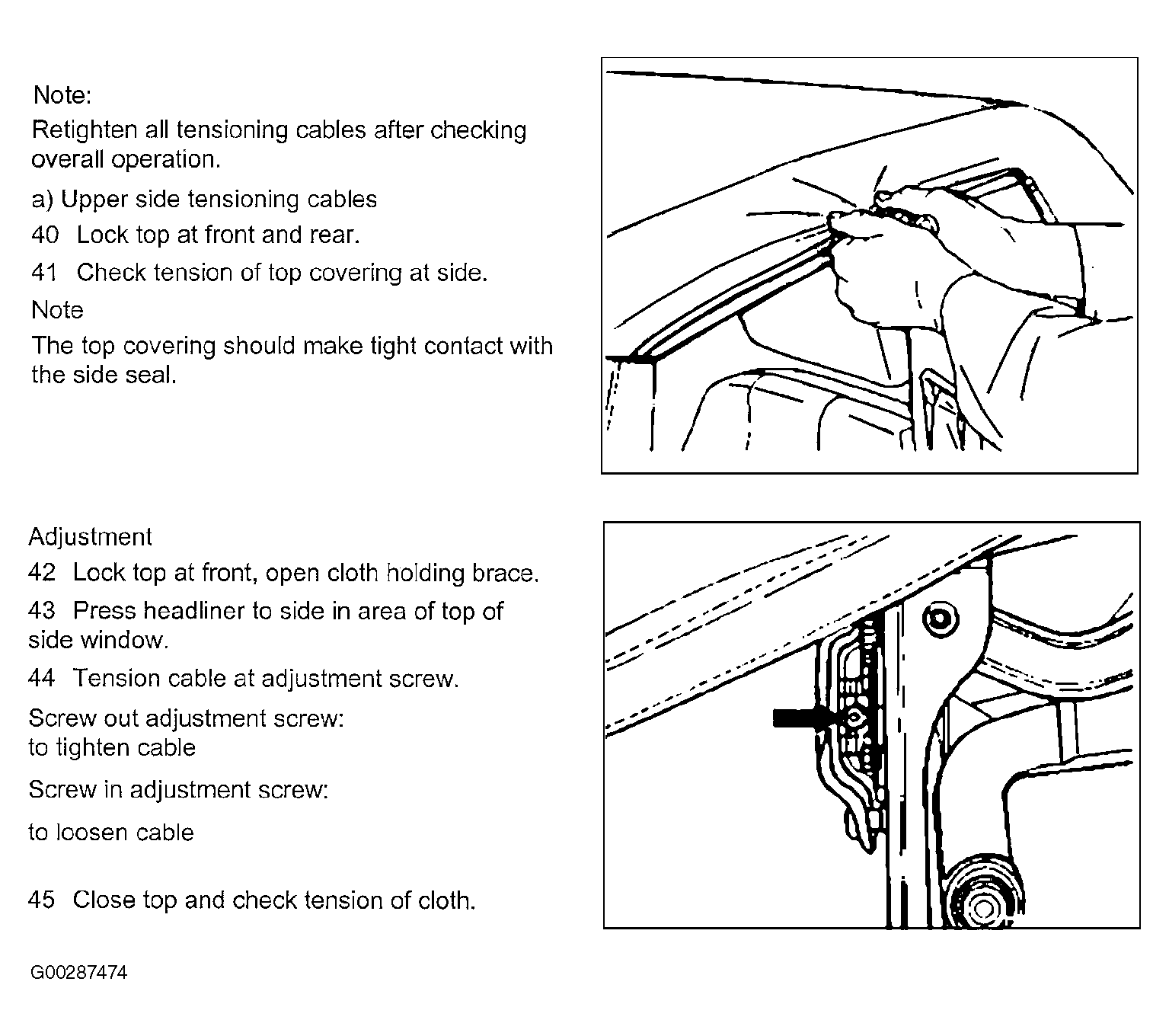

Fig 1: Adjusting Tension Of Soft Top Cover (Steps 40-45)
G00287474Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

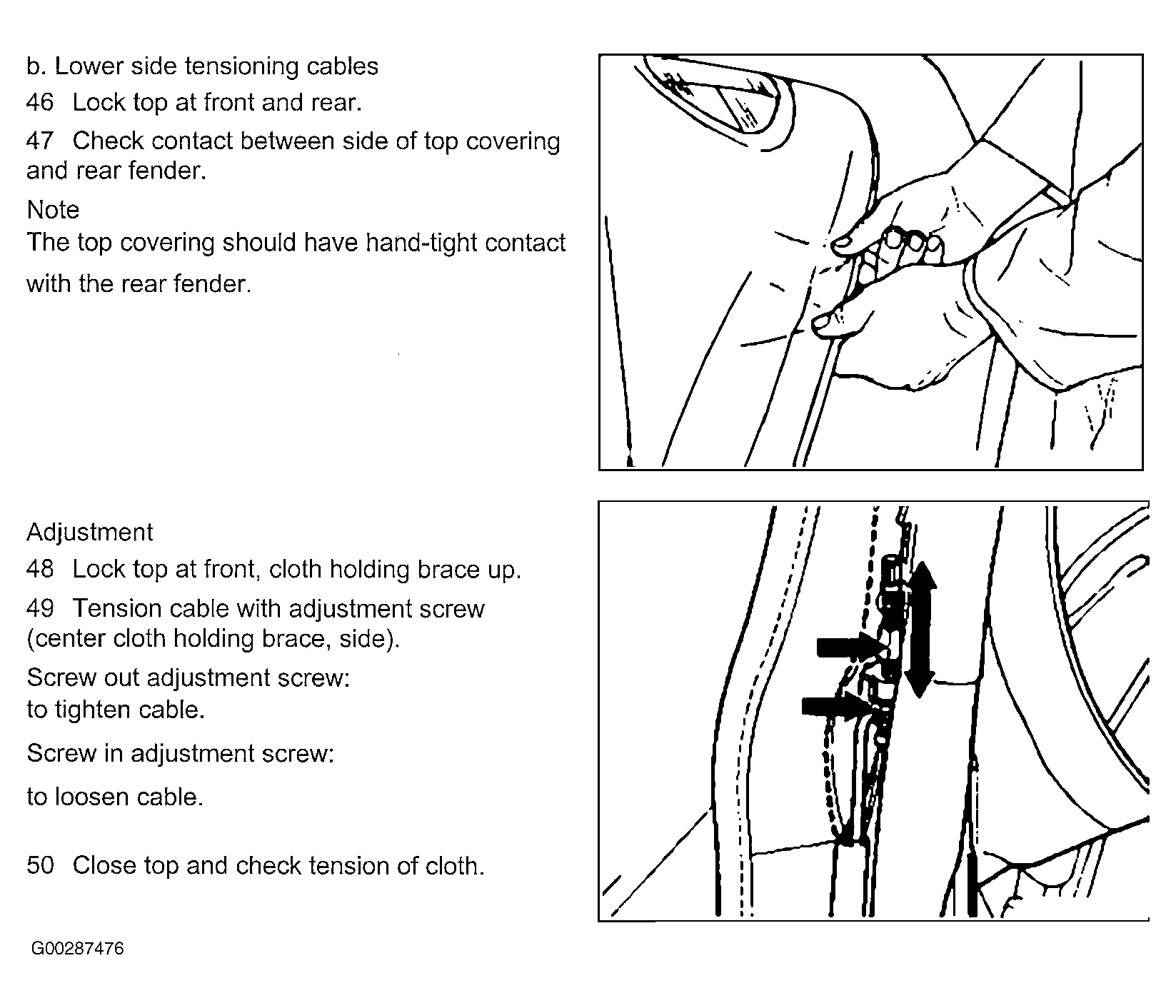

Fig 2: Adjusting Tension Of Soft Top Cover (Steps 46-50)
G00287476Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

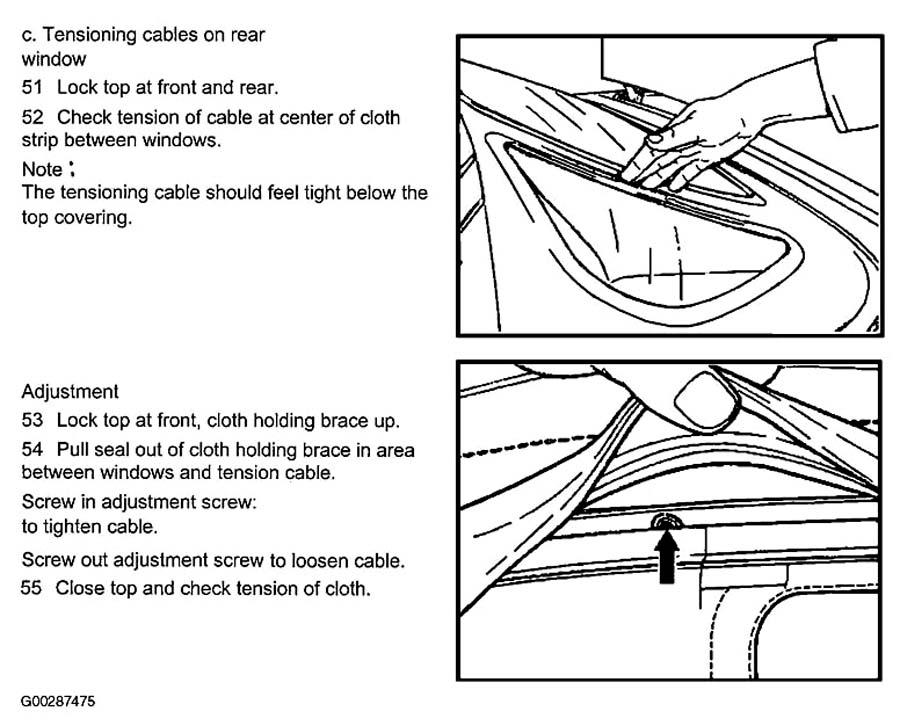

Fig 3: Adjusting Tension Of Soft Top Cover (Steps 51-55)
G00287475Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
