Roof Gap

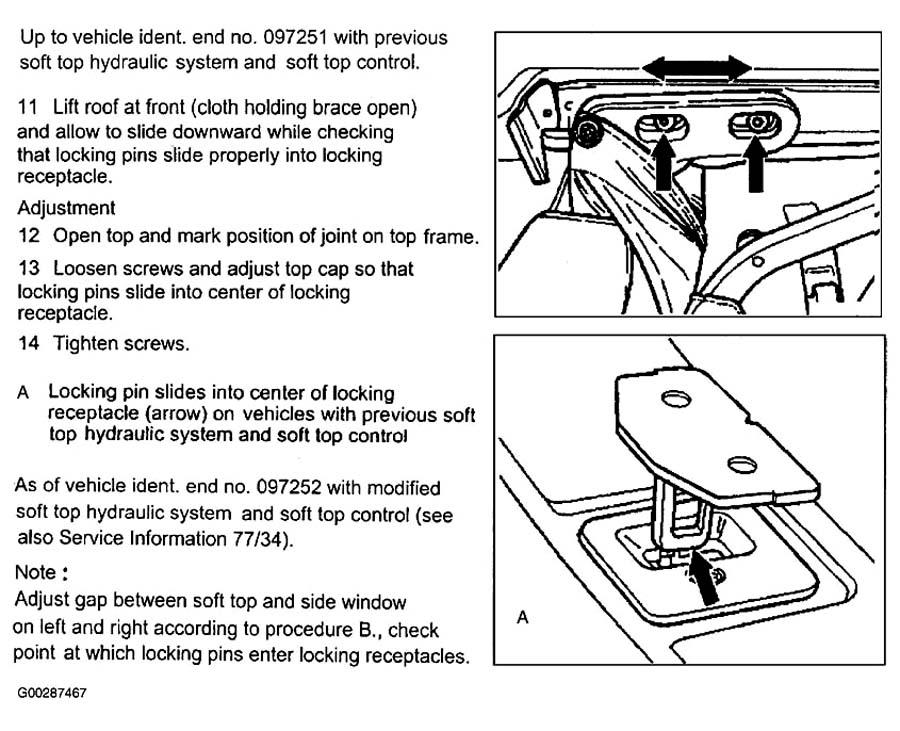

Fig 1: Adjusting Roof Gap, Left & Right (Steps 11 & 14)
G00287467Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

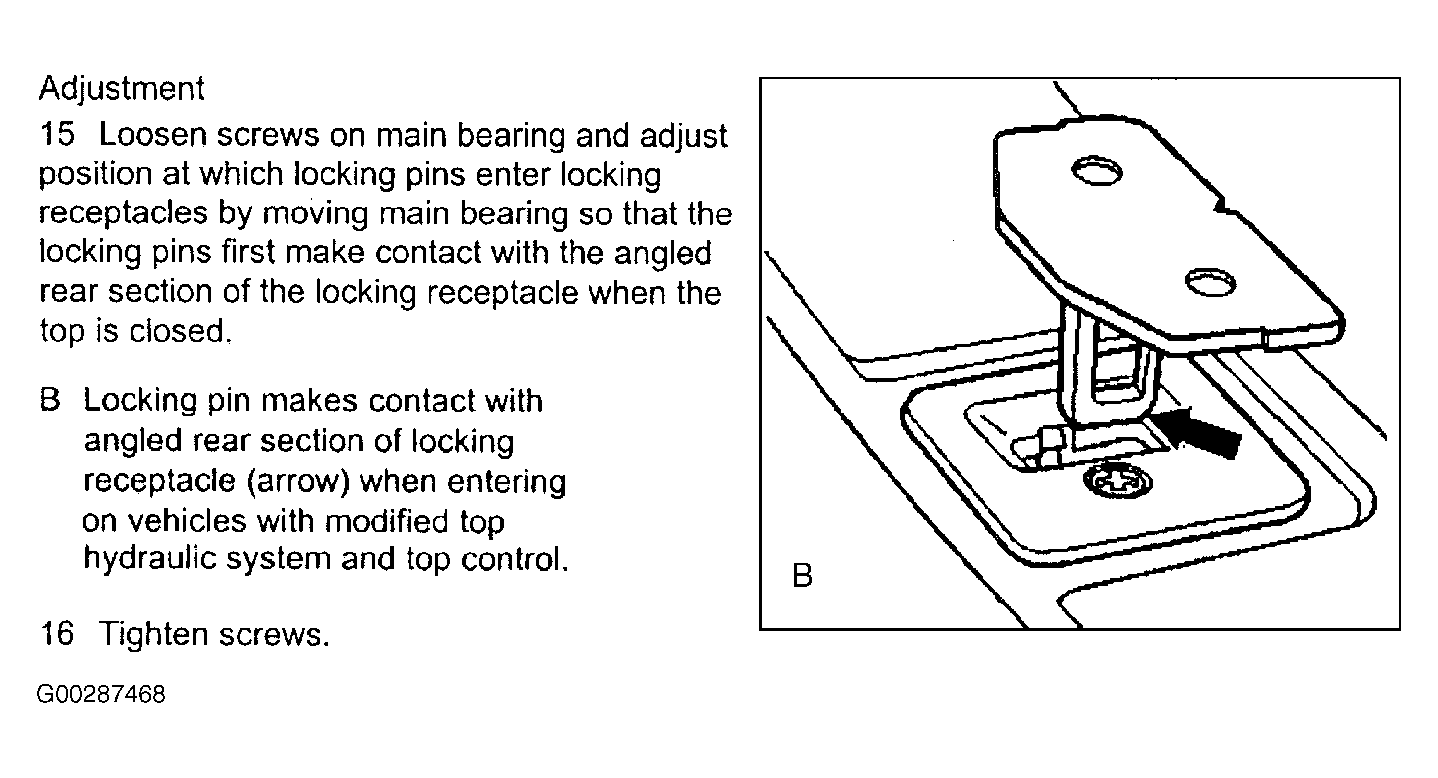

Fig 2: Adjusting Roof Gap, Left & Right (Steps 15 & 16)
G00287468Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
