Soft Top Adjustments: Notes

NOTE: Numbers in parentheses, within steps, correspond to numbers inside the illustration(s). The word arrow(s) in parentheses, within steps, is used to point out specific components or movement.

Perform adjustment work in order specified. Before making adjustments, remove cover from over center pillar. See Fig 1 . To identifying soft top gap and tension adjustment points. See Fig 2 and Fig 3 . For special tool identification. See SPECIAL TOOLS .

Fig 1: Removing & Installing Center Pillar Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

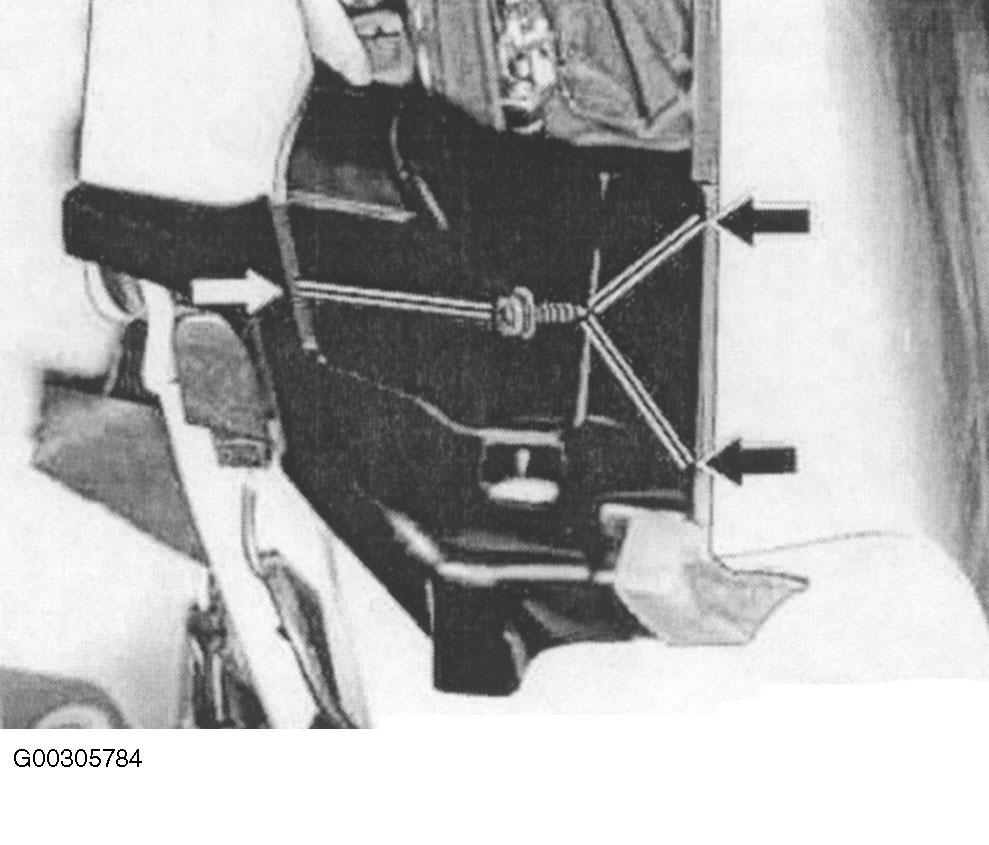

Fig 2: Identifying Soft Top Gap & Tension Adjustment Points (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

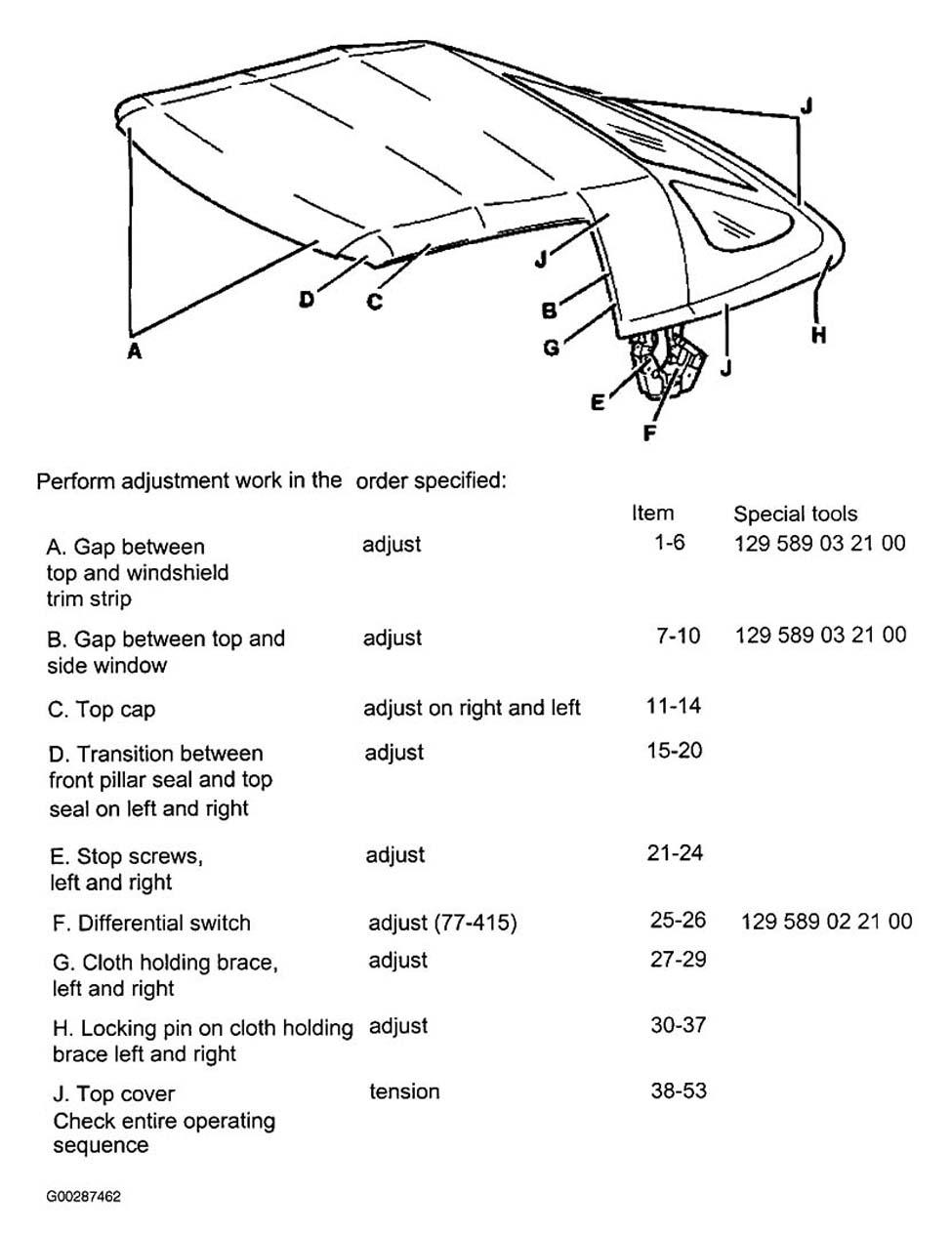

Fig 3: Identifying Soft Top Gap & Tension Adjustment Points (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
