Locking Pins
Locking Pins

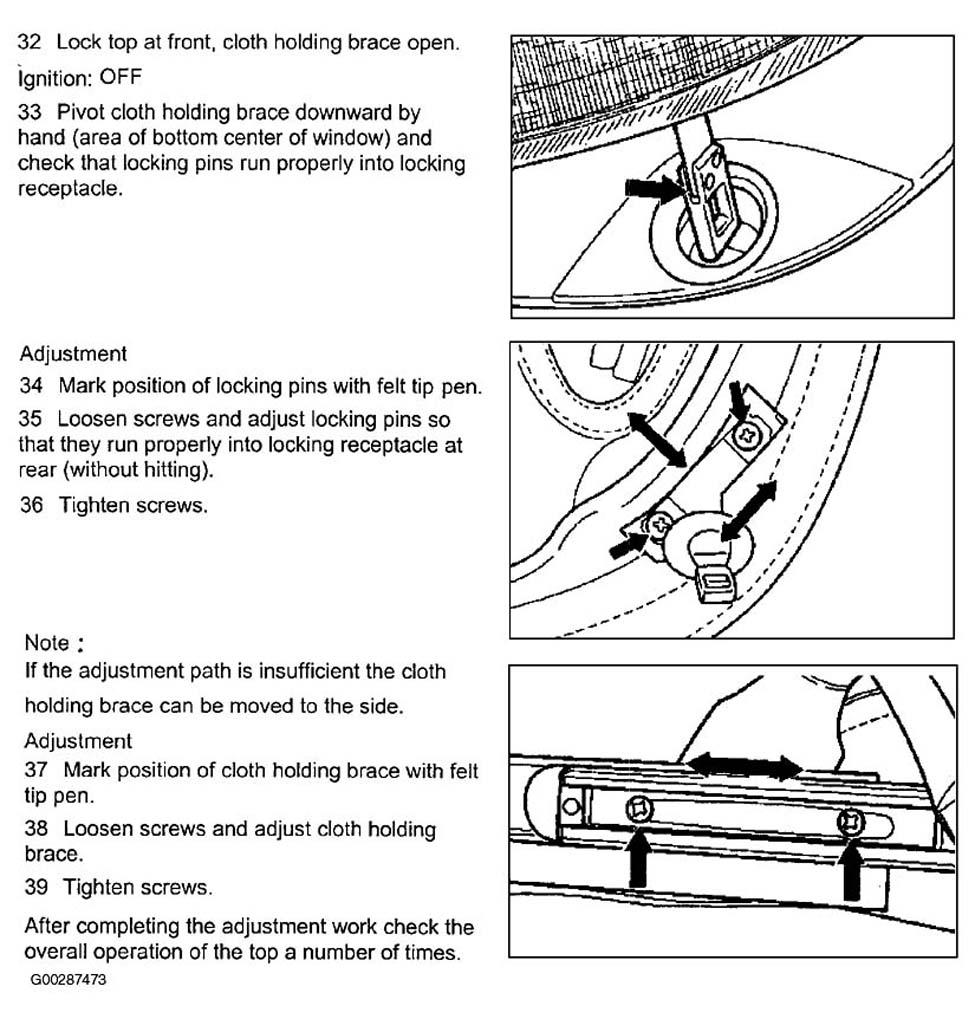

Fig 1: Adjusting Locking Pins On Cloth Holding Brace, Left & Right Sides (Steps 32-39)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
