Gap Between Soft Top & Windshield Trim Strip

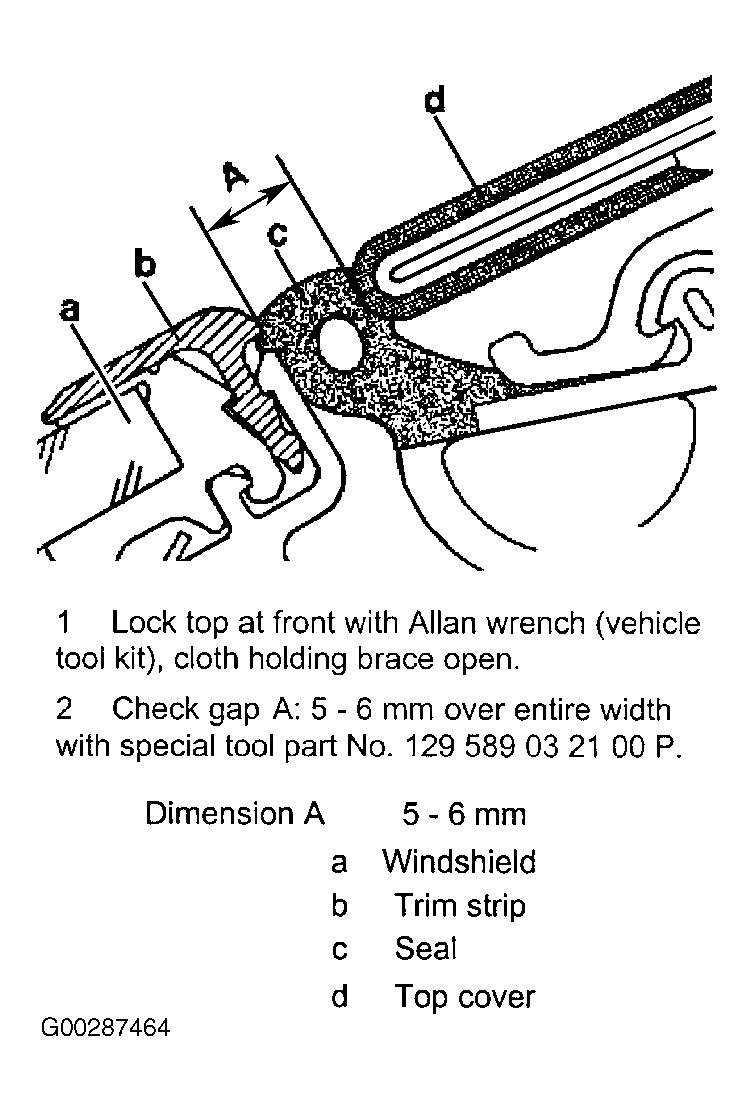

Fig 1: Adjusting Gap Between Soft Top & Windshield Trim Strip (Steps 1 & 2)
G00287464Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

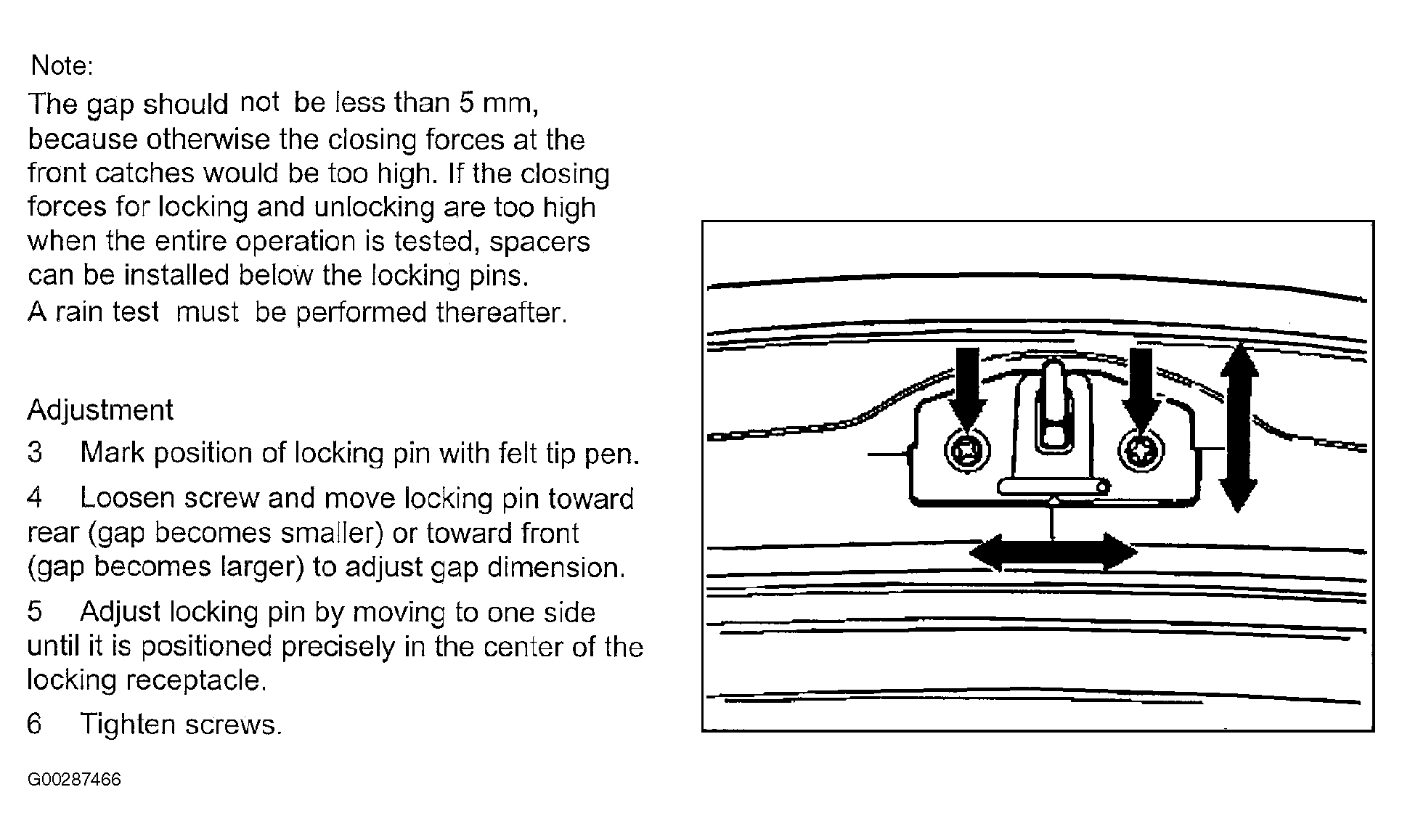

Fig 2: Adjusting Gap Between Soft Top & Windshield Trim Strip (Steps 3 & 6)
G00287466Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
