Cloth Holding Brace
Cloth Holding Brace

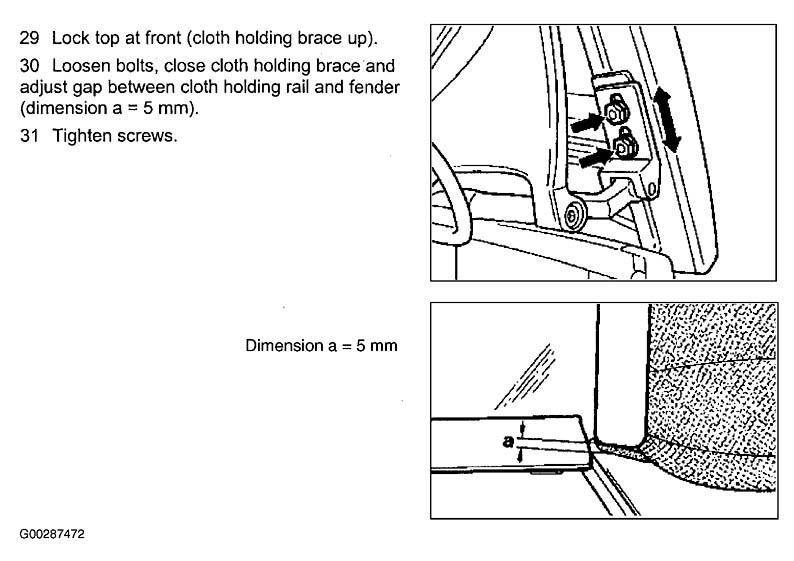

Fig 1: Adjusting Cloth Holding Brace, Left & Right Sides (Steps 29-31)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
