Hard Top Adjustment: Notes

NOTE: Numbers in parentheses, within steps, correspond to numbers inside the illustration(s). The word arrow(s) in parentheses, within steps, is used to point out specific components or movement.

Perform adjustment work in order specified. Identifying hard top areas of adjustments (A, B & C). See Fig 1 . Before making adjustments, remove cover from over center pillar. See Figure . For special tool identification. See SPECIAL TOOLS .

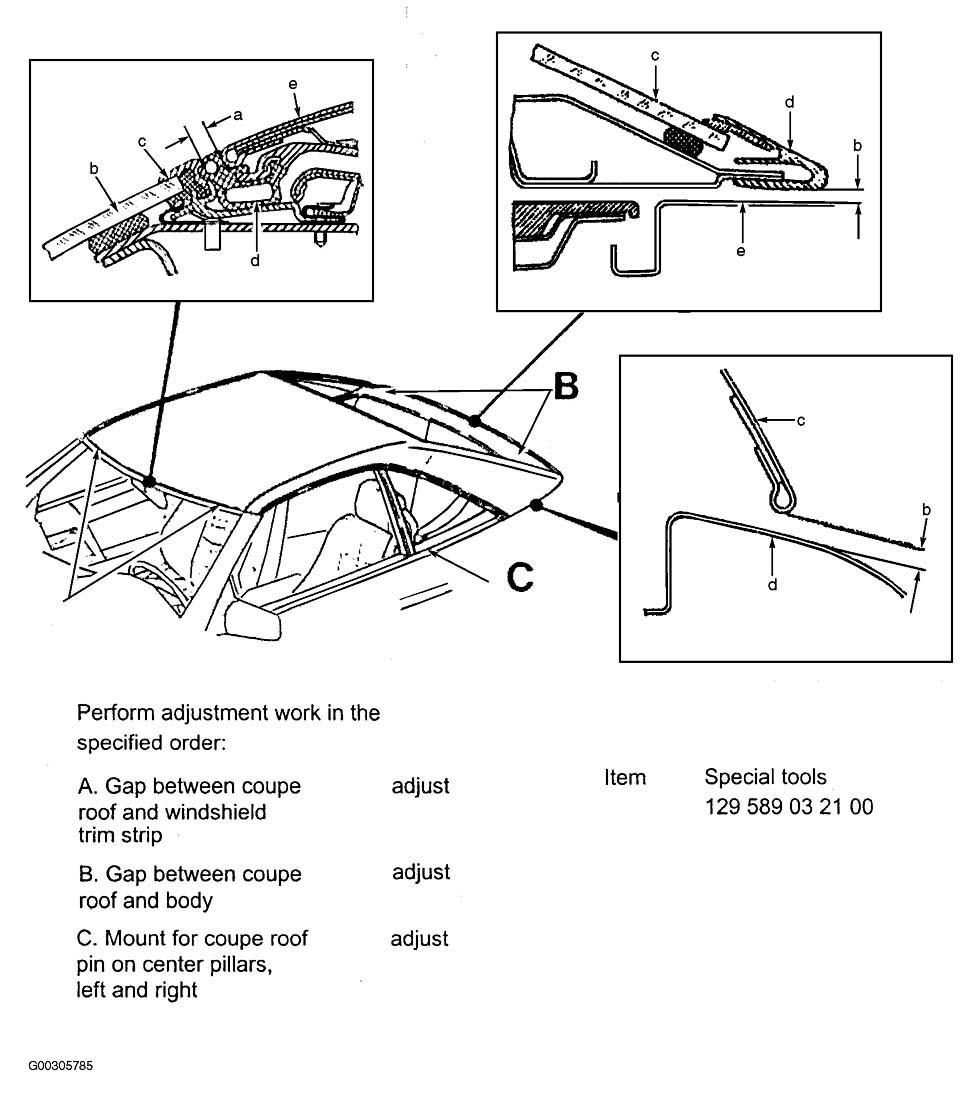

Fig 1: Identifying Hard Top Areas Of Adjustments (A, B & C)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
