C - Adjustment Of Mount For Pins For Coupe Roof On Center Pillars On Left And Right

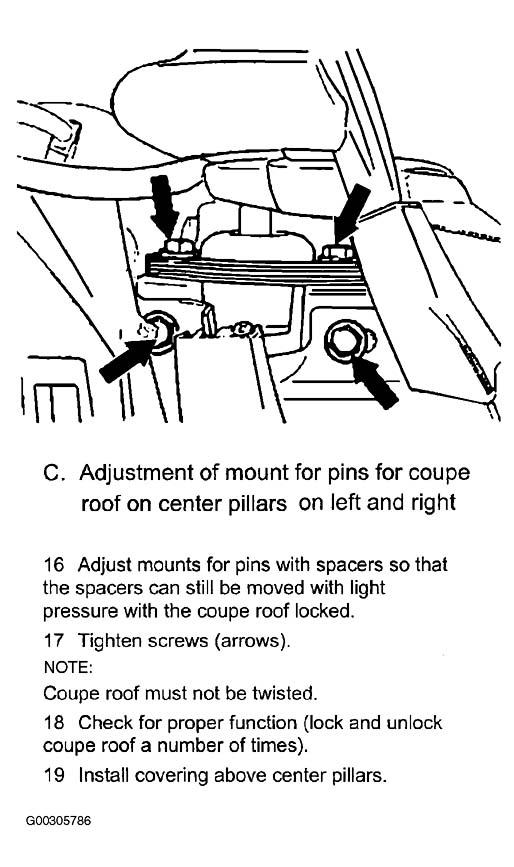

Fig 1: Adjustment (C) Mount For Pins For Coupe Roof On Center Pillars On Left & Right (Steps 16-19)
G00305786Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
