B - Adjustment Of Gap Between Coupe Roof And Body

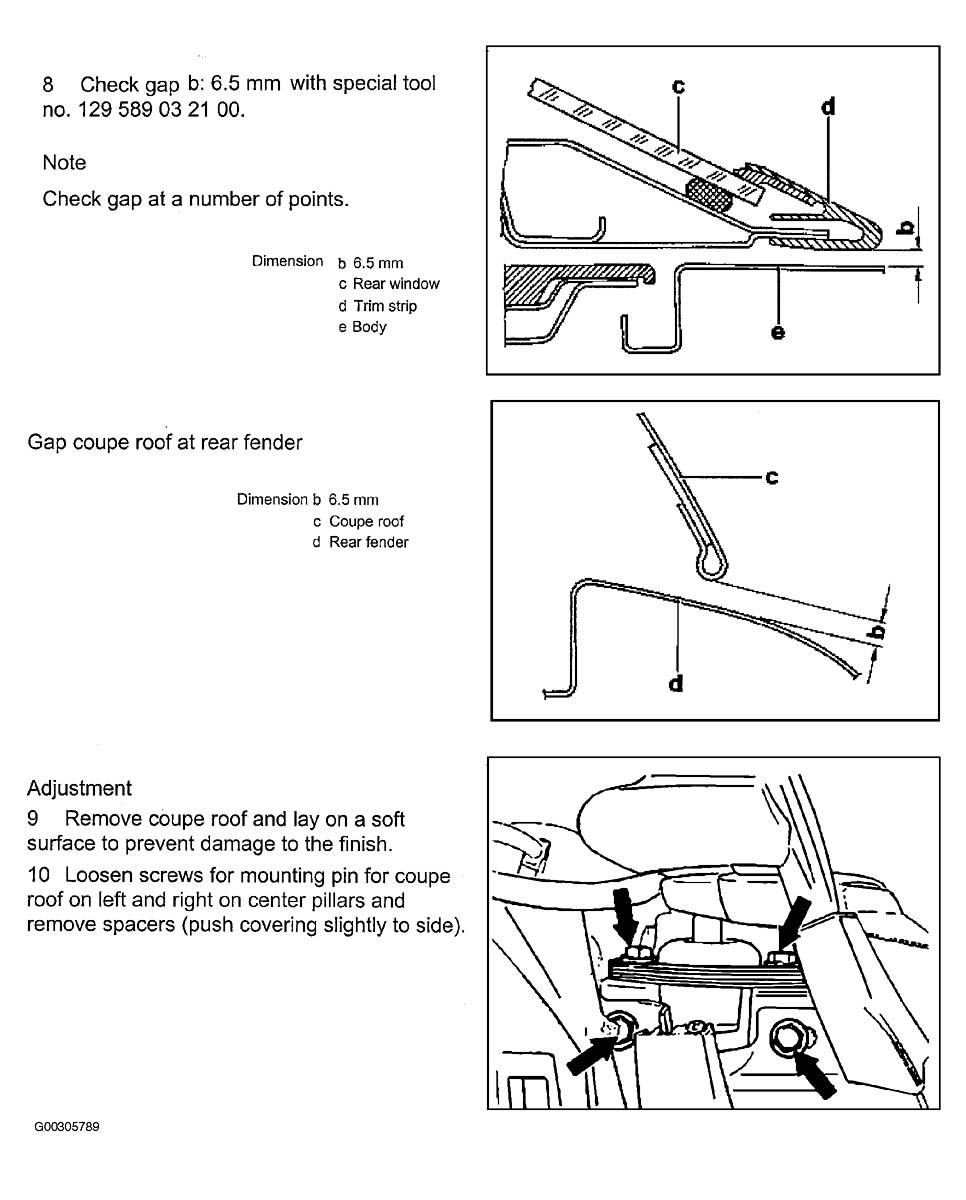

Fig 1: Adjustment (B) Gap Between Coupe Roof & Body (Steps 8-10)
G00305789Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

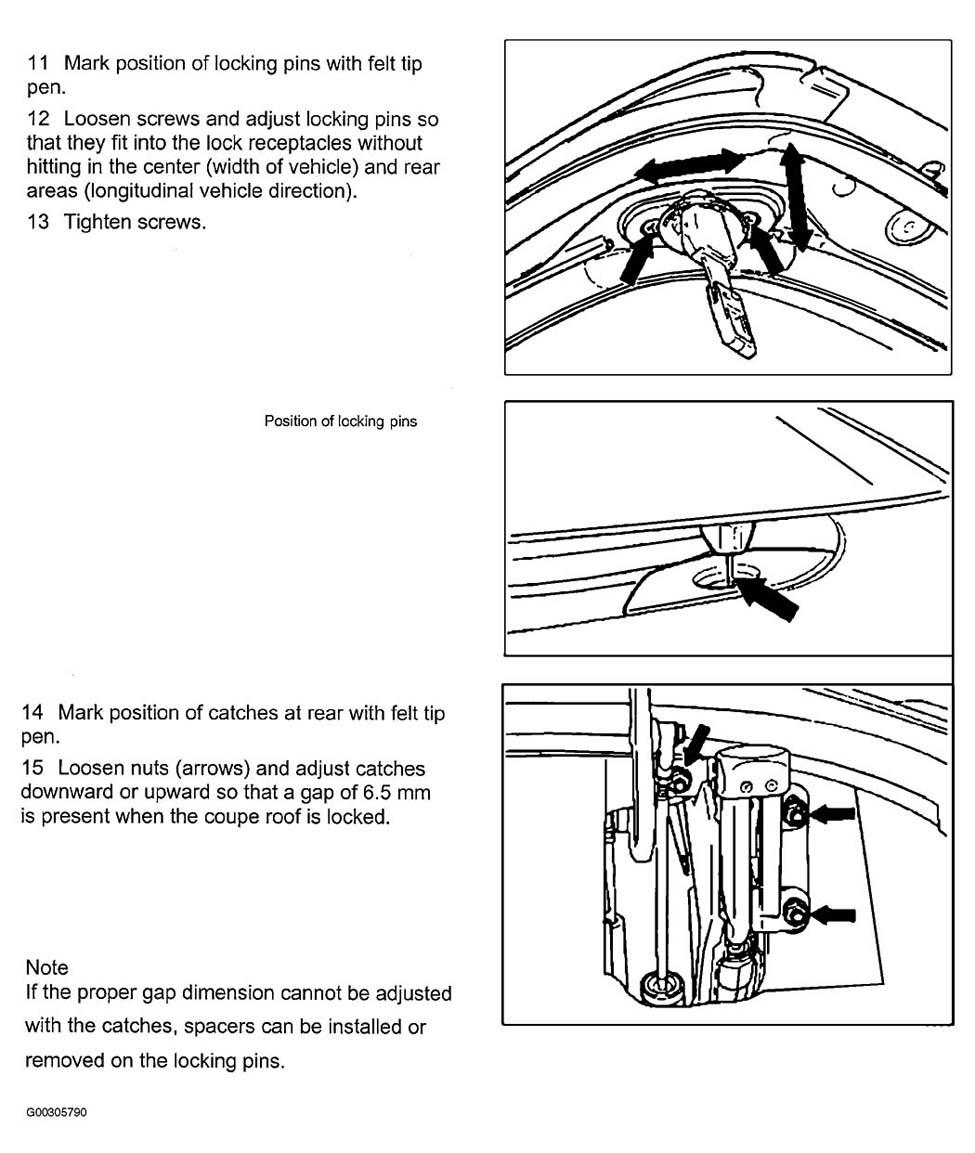

Fig 2: Adjustment (B) Gap Between Coupe Roof & Body (Steps 11-15)
G00305790Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
