A - Adjustment Of Gap Between Coupe Roof And Windshield Trim Strip

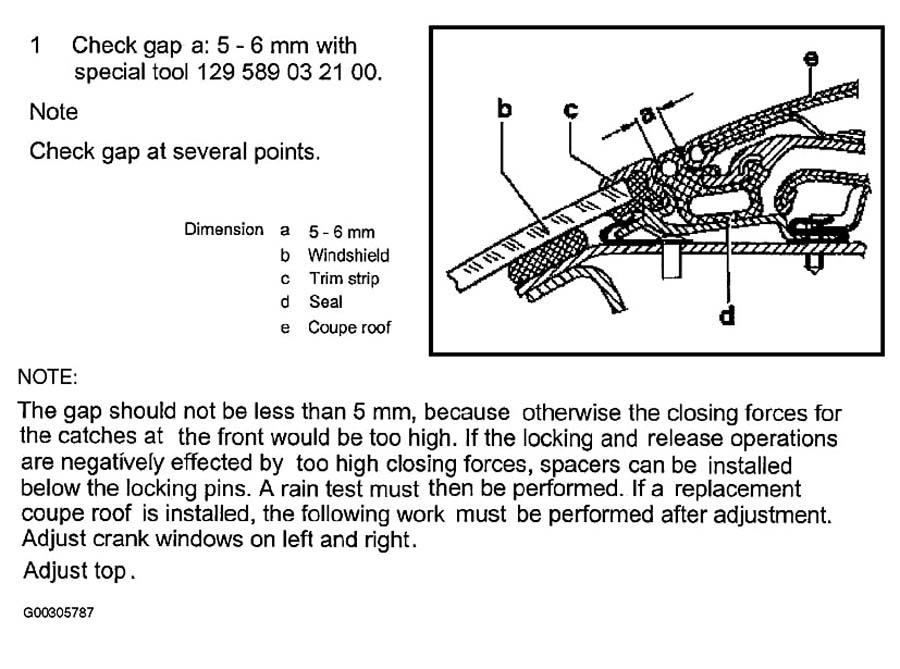

Fig 1: Adjustment (A) Gap Between Coupe Roof And Windshield Trim Strip (Step 1)
G00305787Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

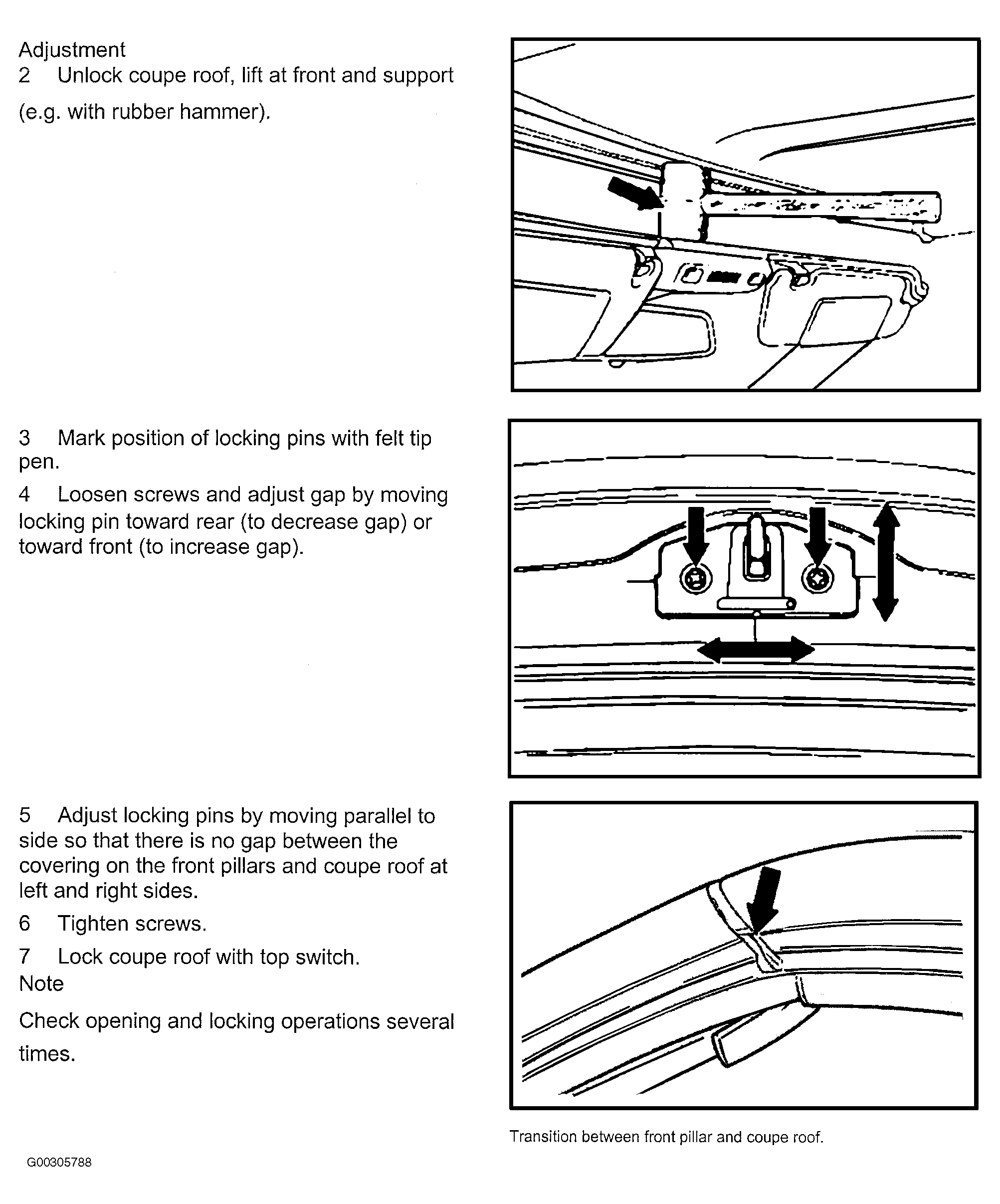

Fig 2: Adjustment (A) Gap Between Coupe Roof And Windshield Trim Strip (Steps 2-7)
G00305788Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
