Removing and installing trunk lid remote control - AR88.50-P-5035C

MODEL 129 as of 1.6.97

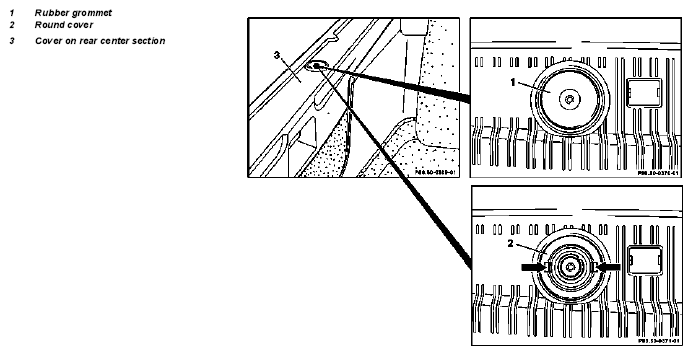

Fig 1: Identifying Rubber Grommet, Round Cover And Cover On Rear Center Section

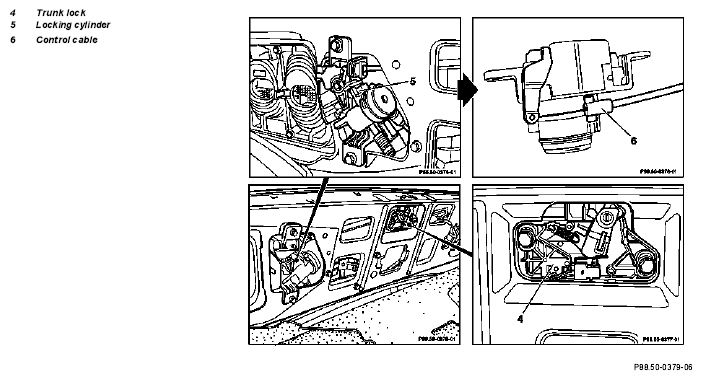

Fig 2: Identifying Trunk Lock, Locking Cylinder And Control Cable

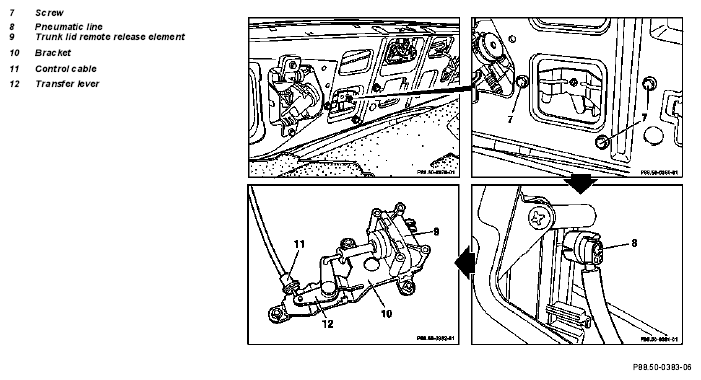

Fig 3: Locating Pneumatic Line, Control Cable And Screw

	Removal, installation
1	Pull rubber grommet (1) off of pneumatic element for putting up trunk lid (6)
2	Press catches on round cover (2) in direction of arrow
3	Pull round cover (2) off of pneumatic element for putting up trunk lid
4	Remove covering on rear center section (3)
5	Remove trunk lock (4)		ra88001290502x
6	Remove lock cylinder (5) and unhook control cable (6)		ra88001290502x
7	Unscrew screw (7)
8	Disconnect pneumatic line (8)
9	Remove trunk lid remote release element (9) with bracket (10) through cutout for lock cylinder in rear center section
10	Unhook control cable (11) on bracket (10) and transfer lever (12)
11	Install in opposite order
