Removing and installing trim surround on glass roof - AR88.85-P-3001C
MODEL 129 with CODE (415a) Glass roof
| Removal, installation | |||
| 1 | Remove glass roof | ||

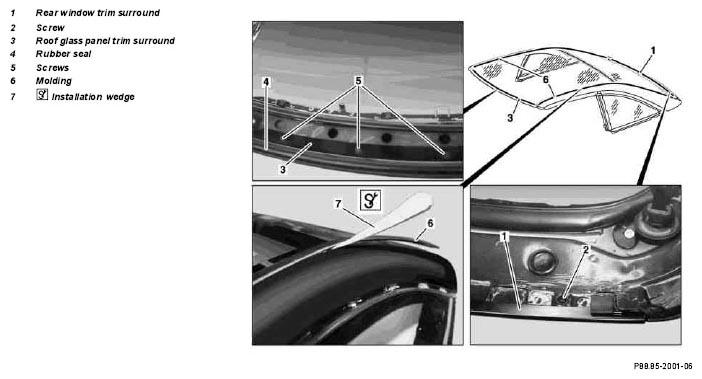

| 2 | Remove rear window trim surround (1) by unscrewing screws (2) | ||
| 3 | Remove roof glass panel trim surround (3) by unscrewing screws (5) | ||
| 4 | Unclip molding (6) on both sides with installation wedge (7) | Figure | |
| 5 | Install in opposite order |
