Removing and installing remote trunk lid release switch - AR88.50-P-5040C

MODEL 129 as of 1.6.97

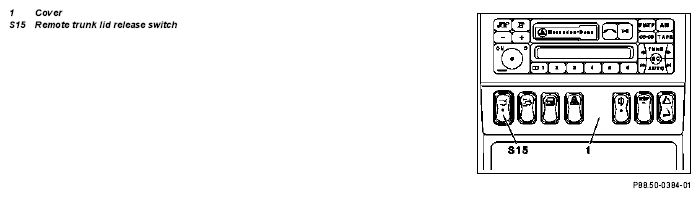

Fig 1: Identifying Remote Trunk Lid Release Switch Components
G04689015
REMOVINGINSTALLING Removal, installation
1 Remove cover on shift lever (1)   ra68001290230x
2 Unclip remote trunk lid release switch (S15) from rear of cover (1) and remove toward rear
3 Install in opposite order
