Removing and installing pneumatic element for putting up trunk lid - AR88.50-P-5037C
MODEL 129 as of 1.6.97
| Removal, installation | |||

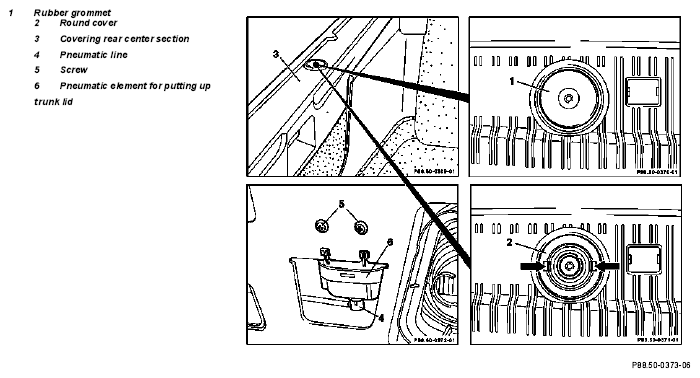

| 1 | Pull rubber grommet (1) off of pneumatic element for putting up trunk lid (6) | ||
| 2 | Press catches on round cover (2) in direction of arrow | ||
| 3 | Pull round cover (2) off of pneumatic element for putting up trunk lid (6) | ||
| 4 | Remove covering on rear center section (3) | ||
| 5 | Disconnect pneumatic line (4) from pneumatic element for putting up trunk lid (6) | ||
| 6 | Unscrew screws (5) | ||
| 7 | Remove pneumatic element for putting up trunk lid (6) from rear center section | ||
| 8 | Install in opposite order |
