Removing and installing control module for radio frequency remote control - AR80.35-P-4500C

MODEL 129 as of 1.6.97

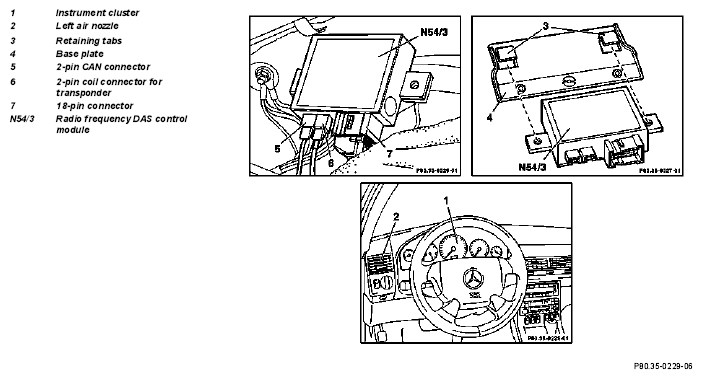

Fig 1: Identifying Radio Frequency Remote Control Module

	Removal, installation
1	Remove instrument cluster (1)	Models 129, 202, 208, 210	AR54.30-P-6015EA
2	Remove left air nozzle (2)		ra68001290110x
3	Remove heater duct
4	Unclip radio frequency DAS control module (N54/3)	For this purpose, press the two retaining tabs (3) on the base plate (4) up and move radio frequency DAS control module (N54/3) toward front
5	Disconnect 2-pin CAN connector (5)
6	Disconnect 2-pin coil connector for transponder (6)
7	Disconnect 18-pin connector (7)
8	Remove radio frequency DAS control module (N54/3)	When replacing the radio frequency DAS control module (N54/3) or the remote control key, always specify the lock system number, because the two parts are matched to one another. After replacing the radio frequency DAS control module (N54/3), perform version coding according to Diagnosis Manual
9	Install in opposite order
