Trunk Fuse Panel F4

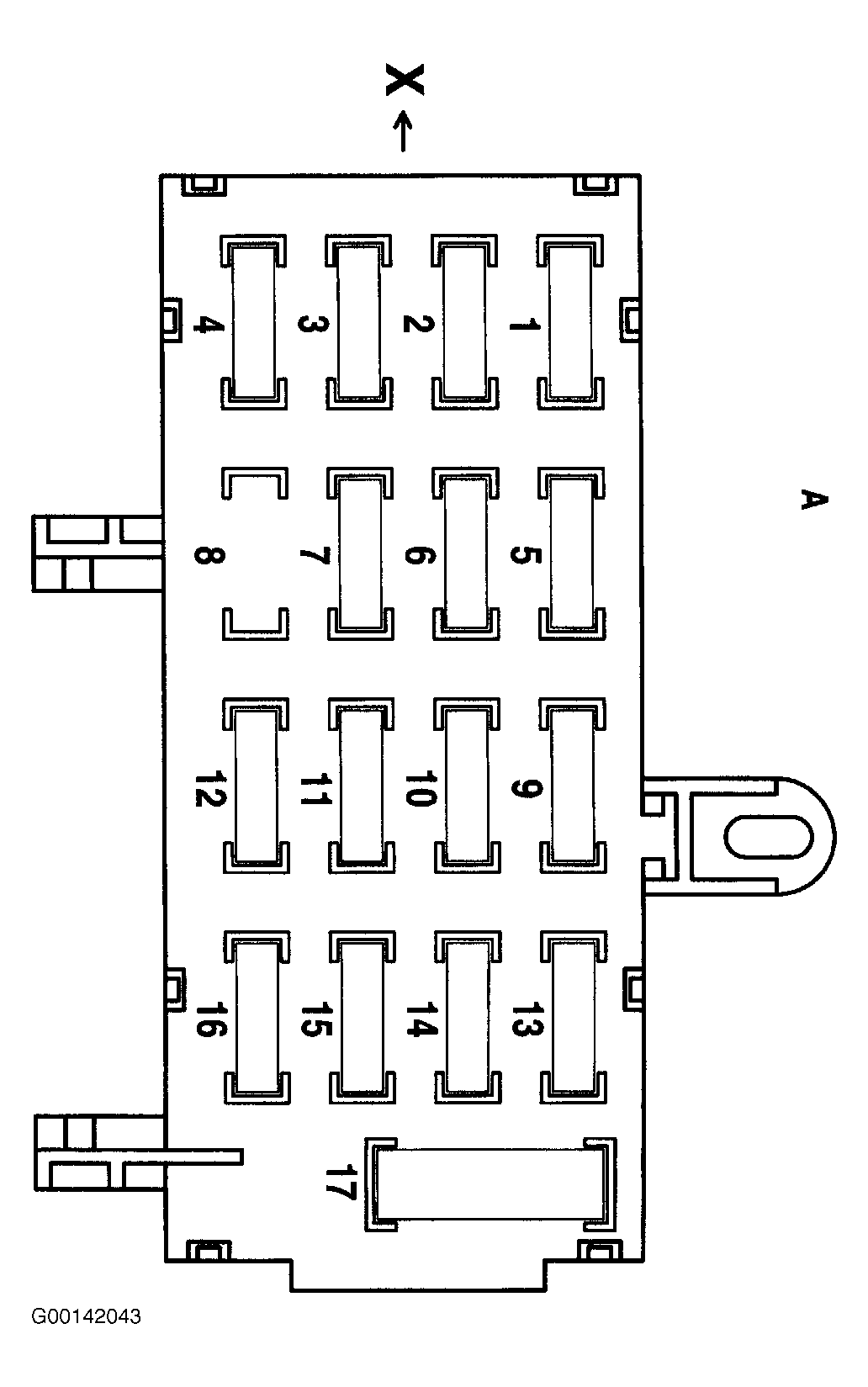

Fig 1: Identifying Trunk Fuse Panel F4 (Top View) - Fuse Identification (1 Of 4)
G00142043Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

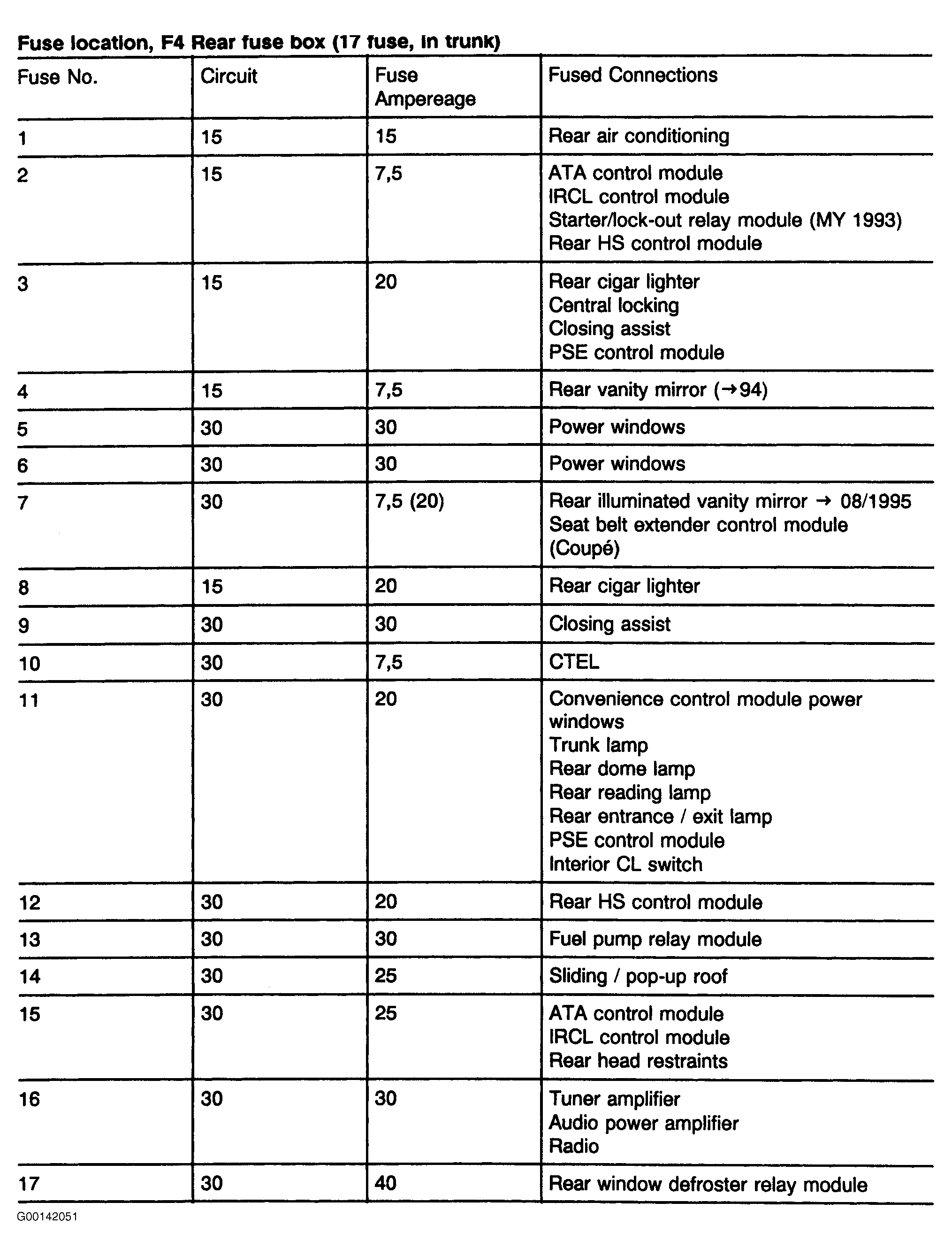

Fig 2: Identifying Trunk Fuse Panel F4 - Fuse Identification (2 Of 4)
G00142051Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

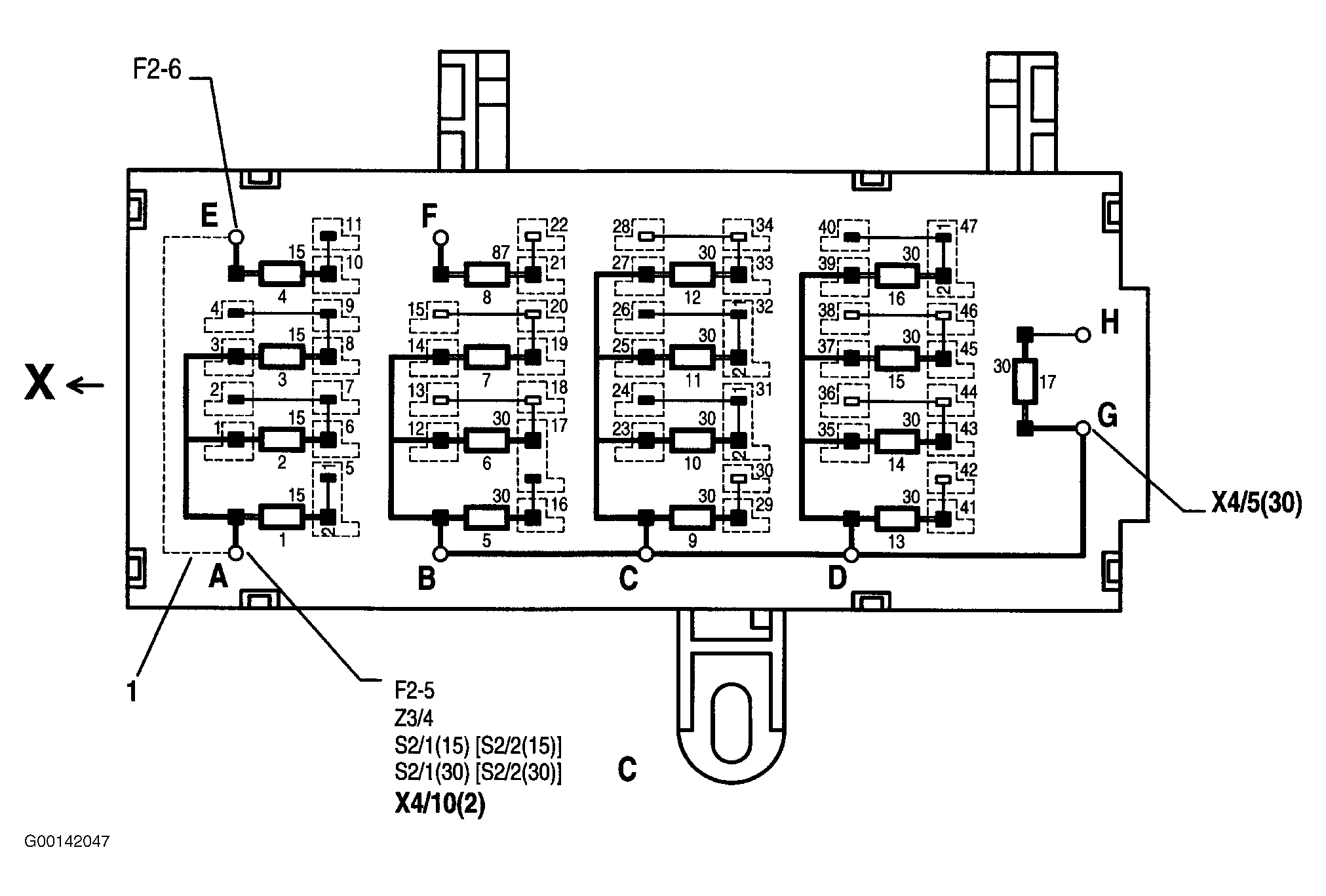

Fig 3: Identifying Trunk Fuse Panel F4 (Bottom View) - Circuit Identification (4 Of 4)
G00142047Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

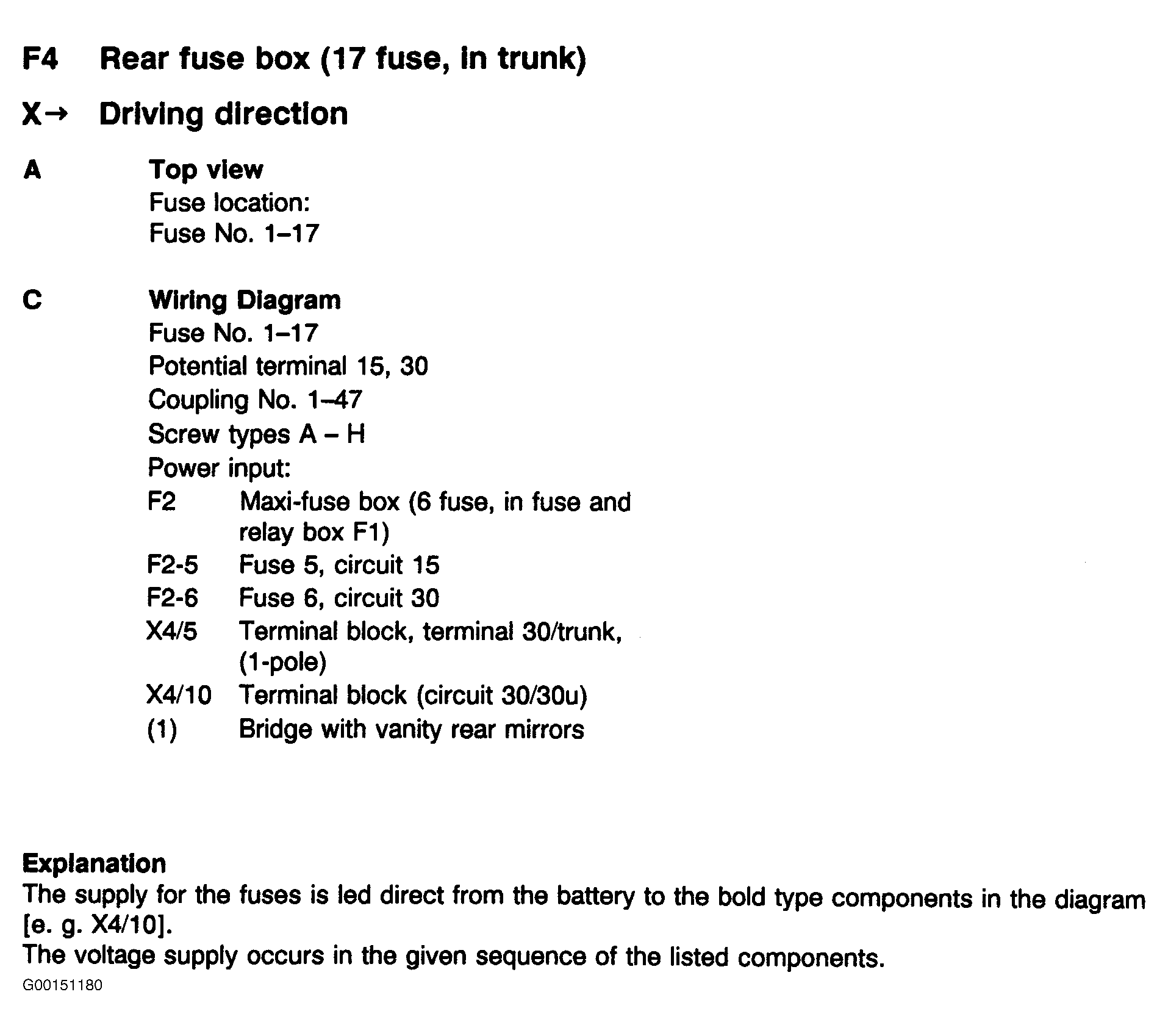

Fig 4: Identifying Trunk Fuse Panel F4 - Legend (4 Of 4)
G00151180Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
