Fuses & Circuit Breakers - 300SD, 300SE, 400SEL, 500SEL, 600SEL, 500SEC & 600SEC
>>
Fuse & Relay Identification
>>
Engine Compartment Relay Panel
Engine Compartment Relay Panel

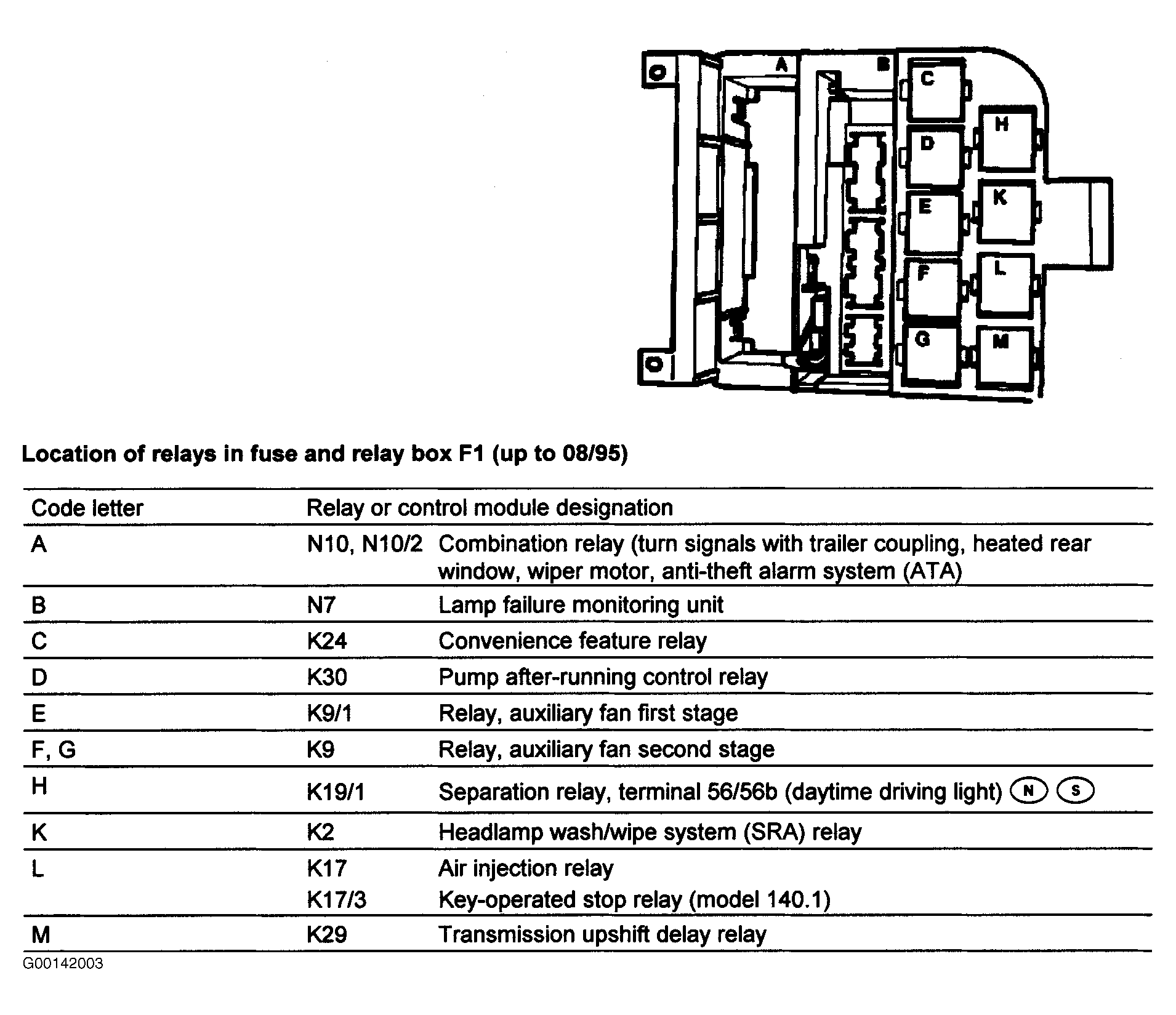

Fig 1: Identifying Engine Compartment Relay Panel Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
