Engine Compartment Maxi-Fuse Panel F2

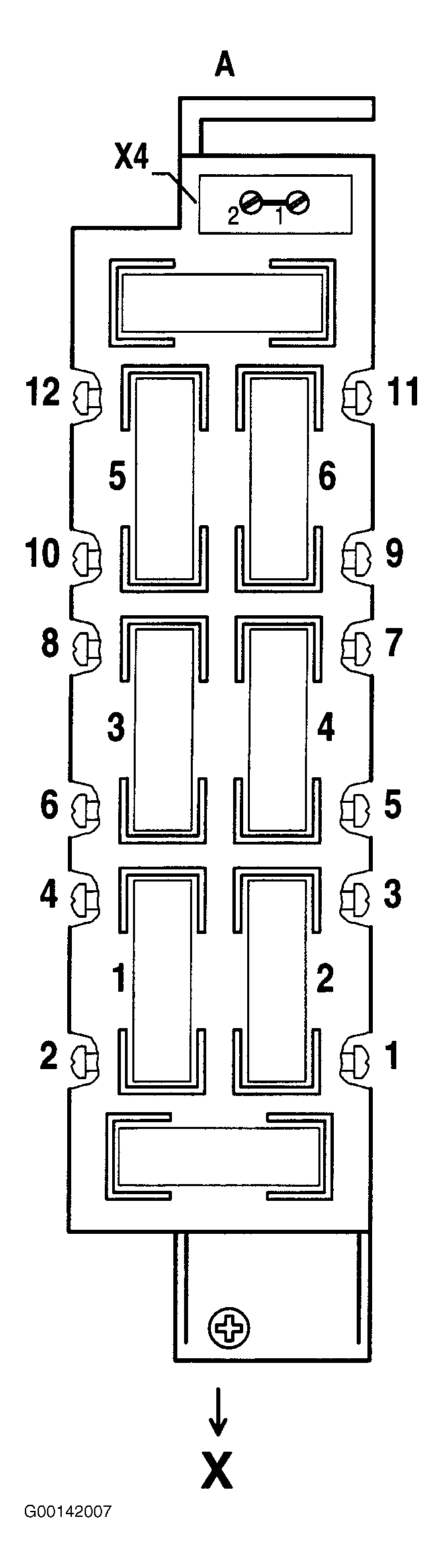

Fig 1: Identifying Engine Compartment Maxi-Fuse Panel F2 (Top View) - Fuse Identification (1 Of 4)
G00142007Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

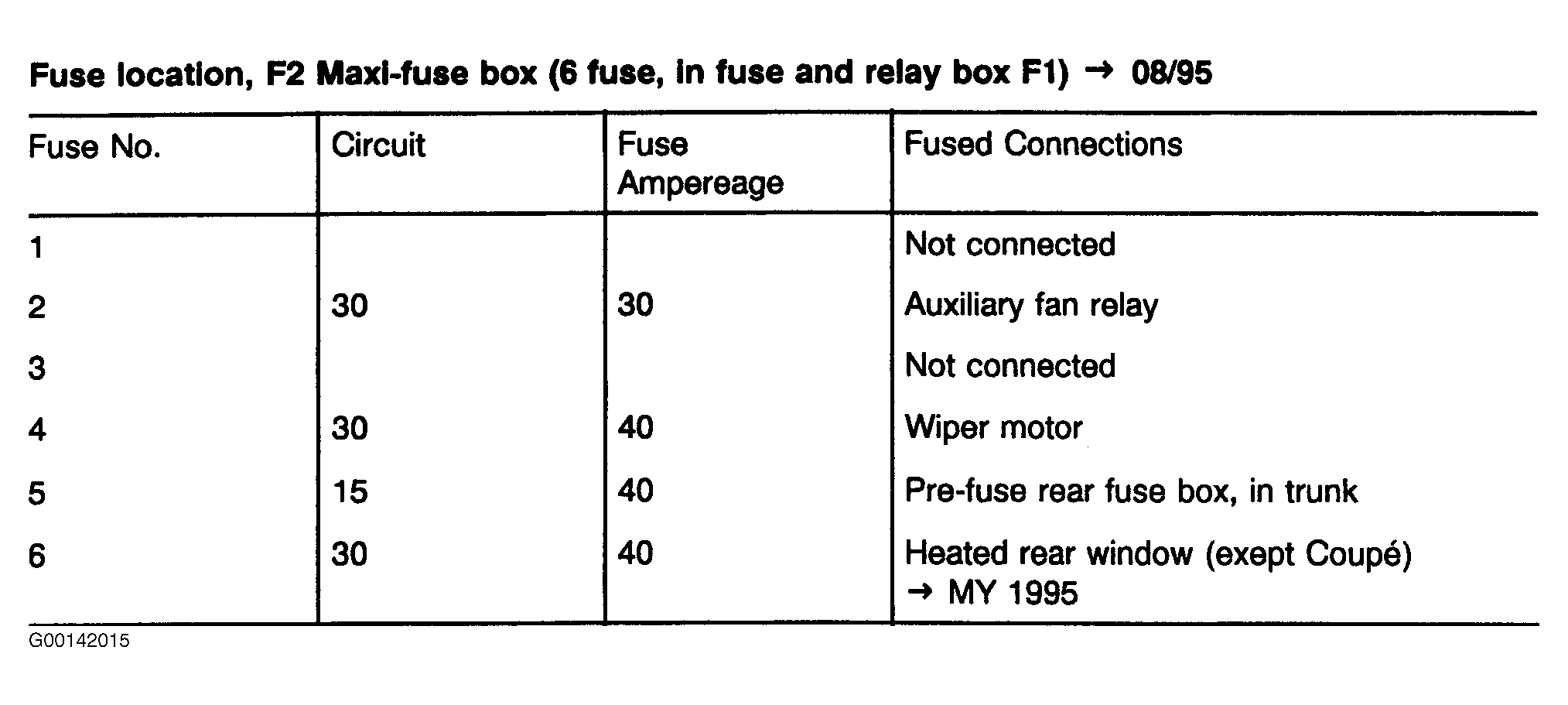

Fig 2: Identifying Engine Compartment Maxi-Fuse Panel F2 - Fuse Identification (2 Of 4)
G00142015Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

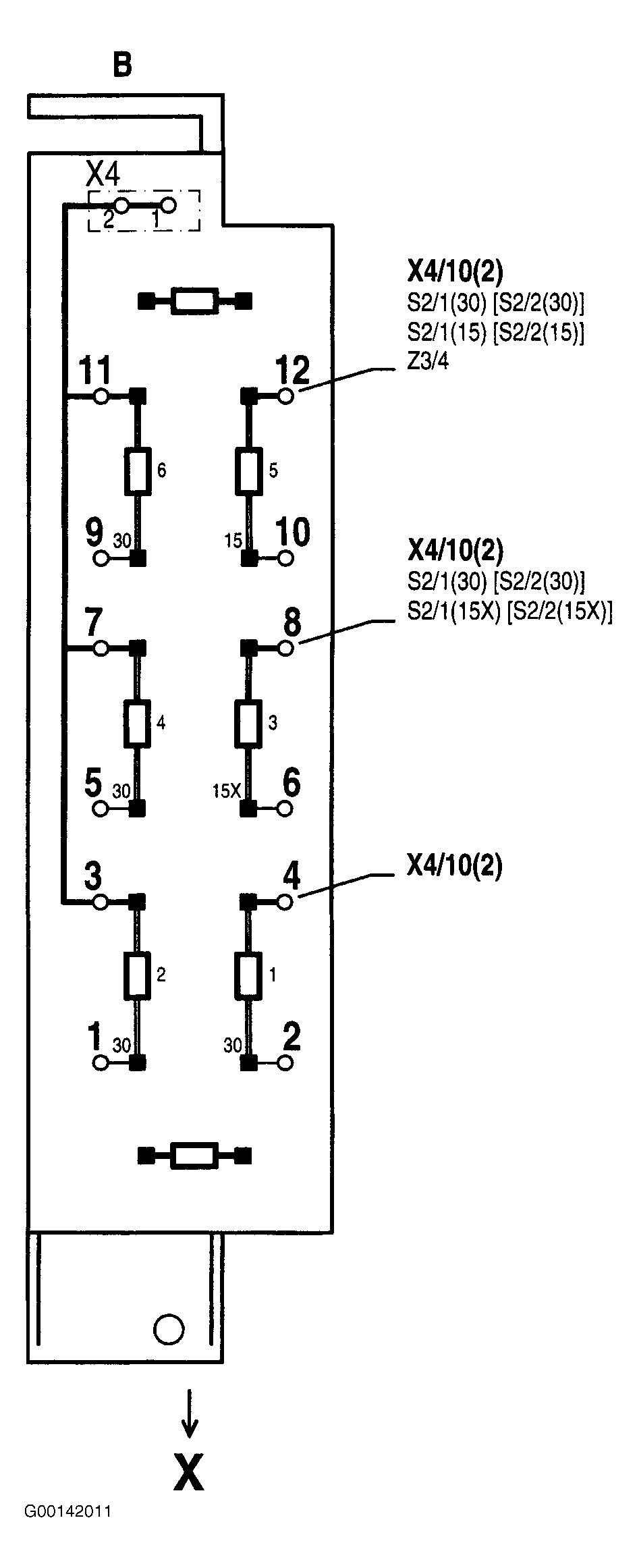

Fig 3: Identifying Engine Compartment Maxi-Fuse Panel F2 (Bottom View) - Circuit Identification (3 Of 4)
G00142011Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

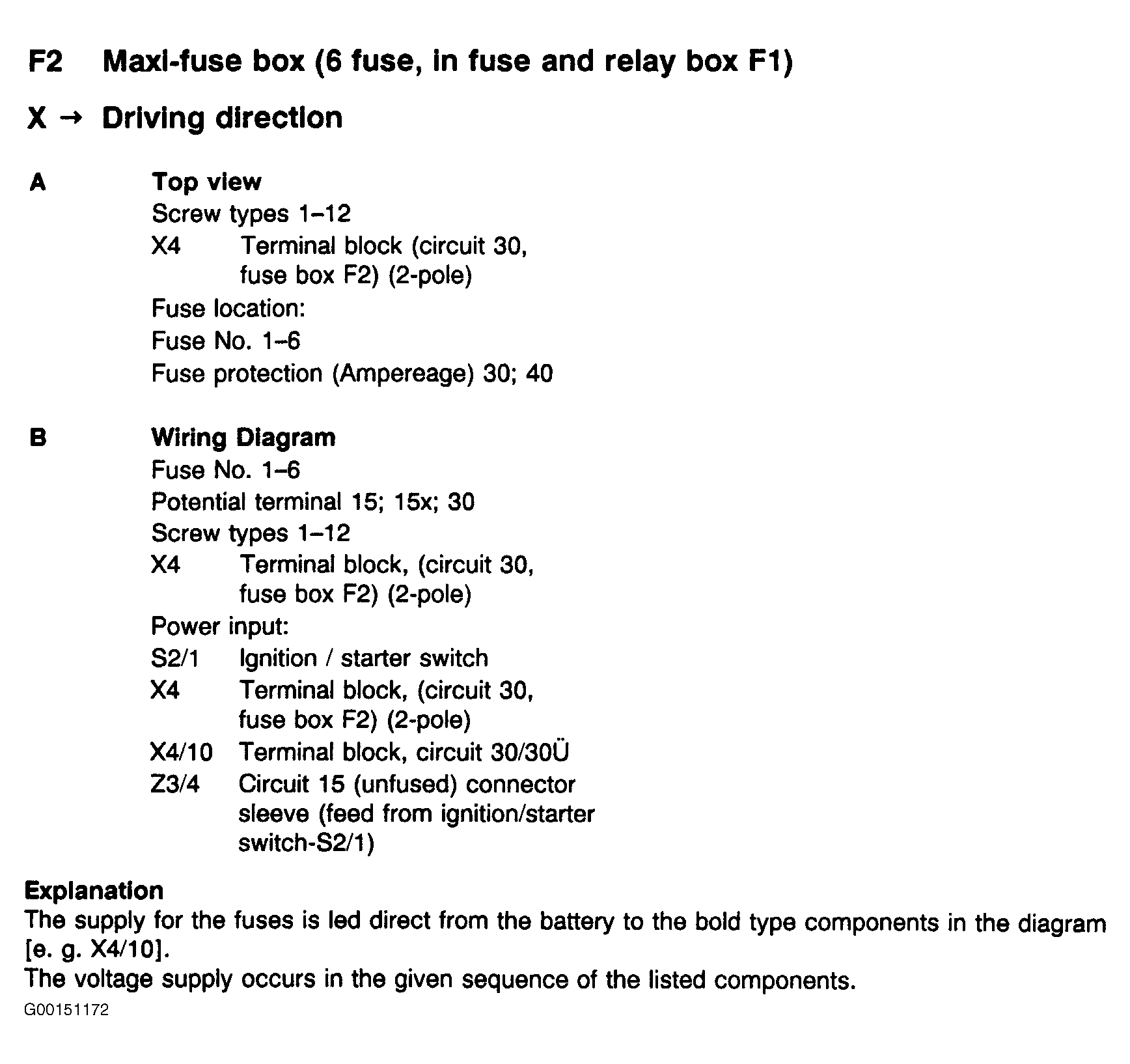

Fig 4: Identifying Engine Compartment Maxi-Fuse Panel F2 - Legend (4 Of 4)
G00151172Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
