Engine Compartment Fuse Panel F3

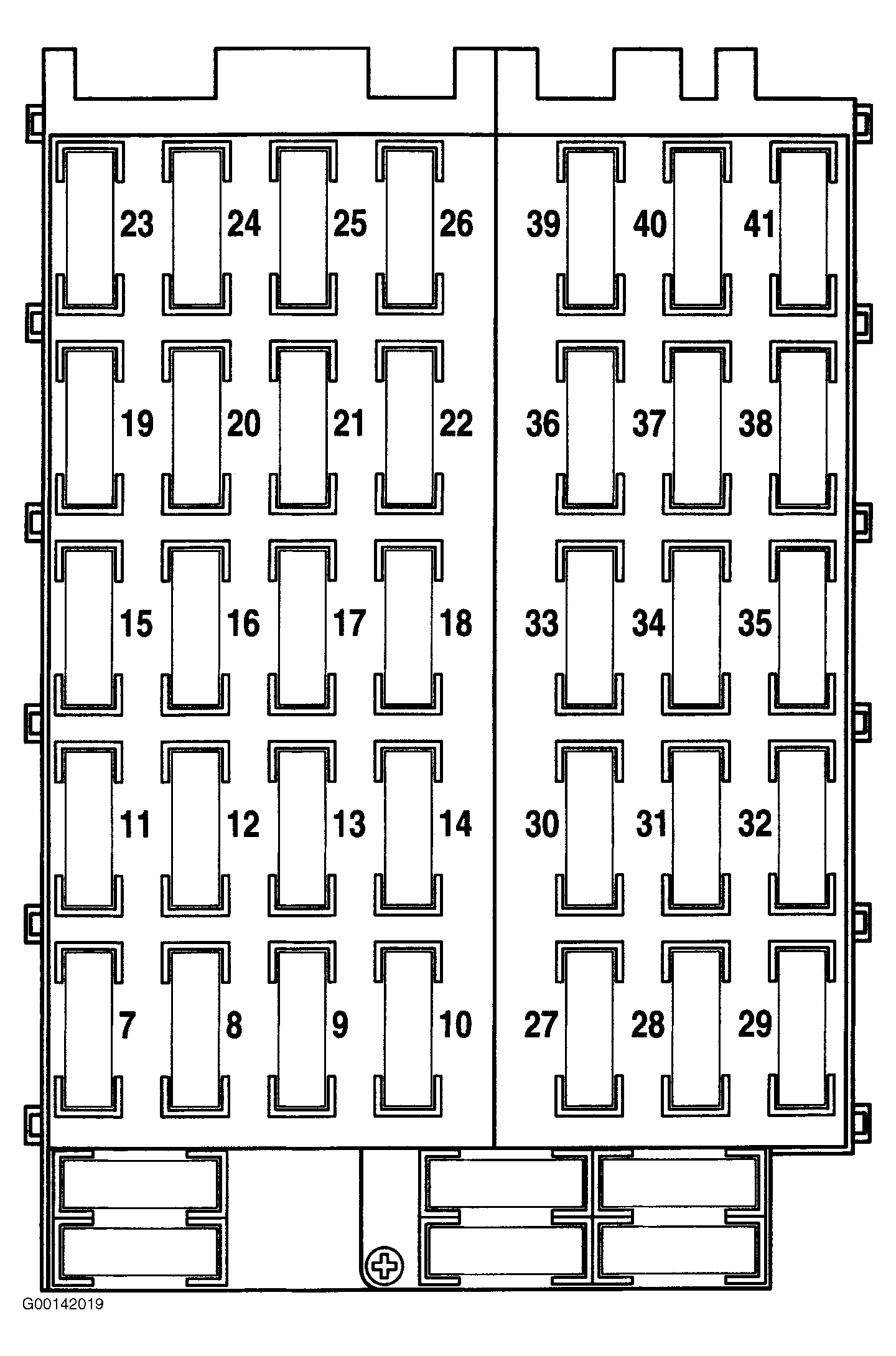

Fig 1: Identifying Engine Compartment Fuse Panel F3 (Top View) - Fuse Identification (1 Of 7)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

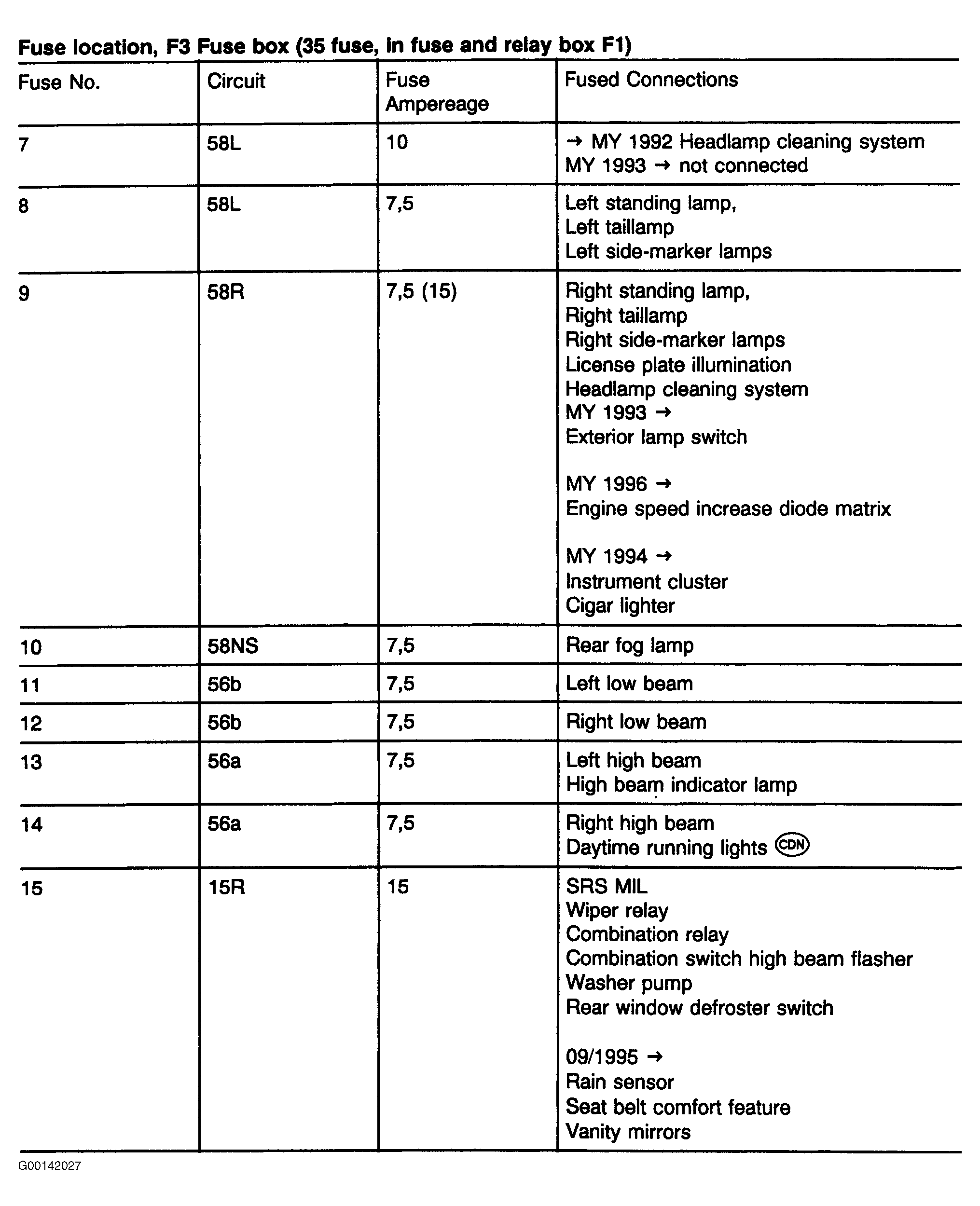

Fig 2: Identifying Engine Compartment Fuse Panel F3 - Fuse Identification (2 Of 7)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

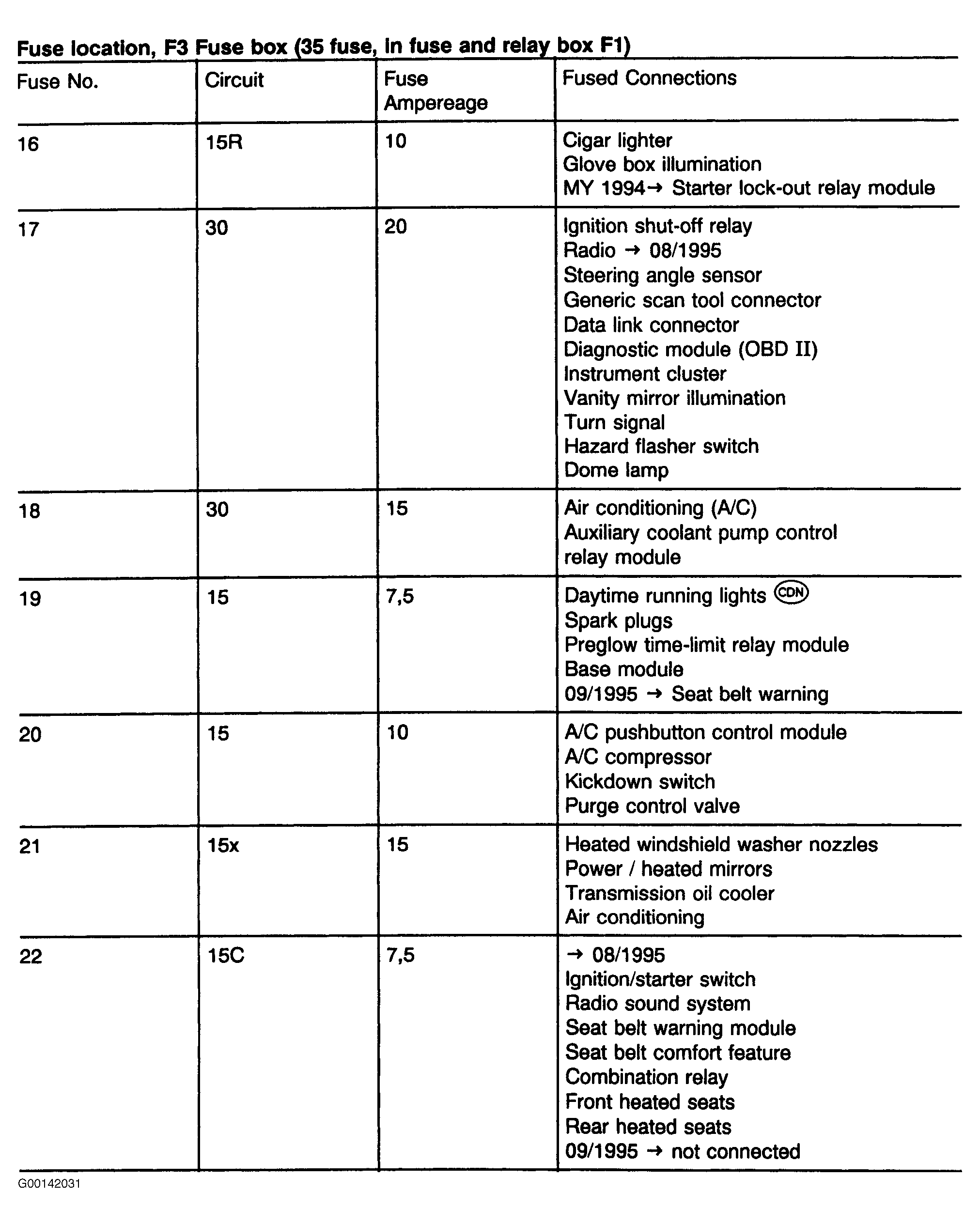

Fig 3: Identifying Engine Compartment Fuse Panel F3 - Fuse Identification (3 Of 7)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

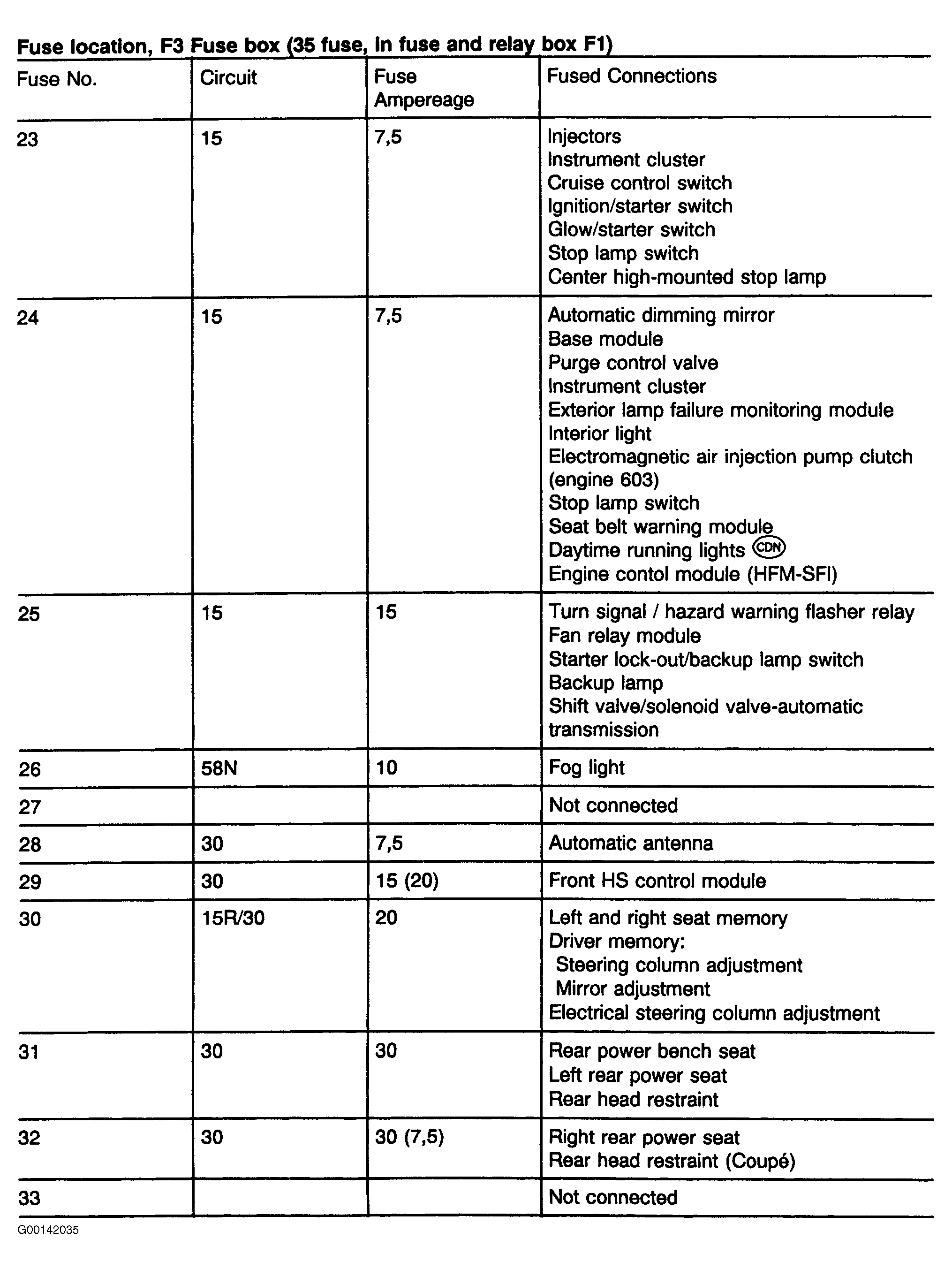

Fig 4: Identifying Engine Compartment Fuse Panel F3 - Fuse Identification (4 Of 7)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

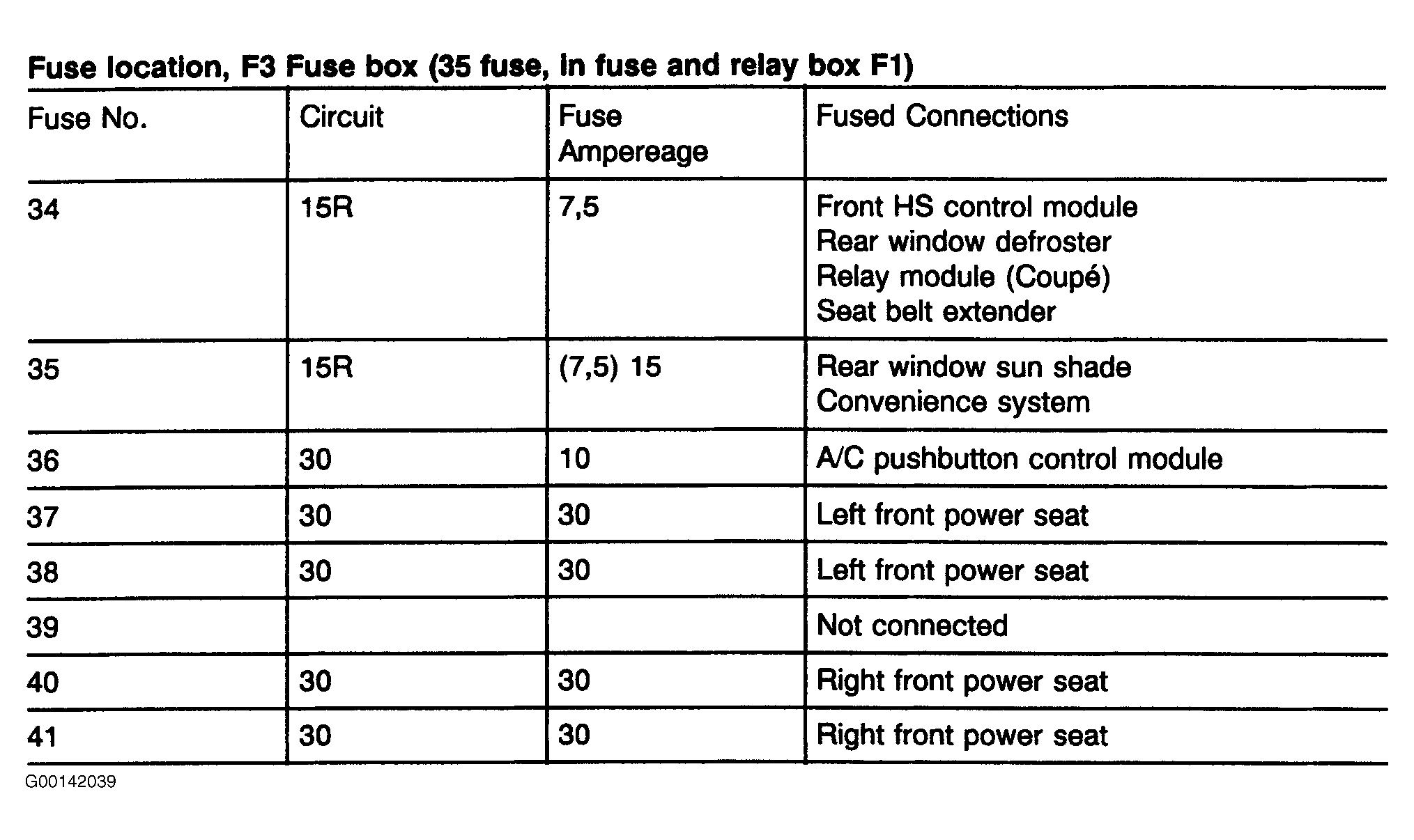

Fig 5: Identifying Engine Compartment Fuse Panel F3 - Fuse Identification (5 Of 7)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

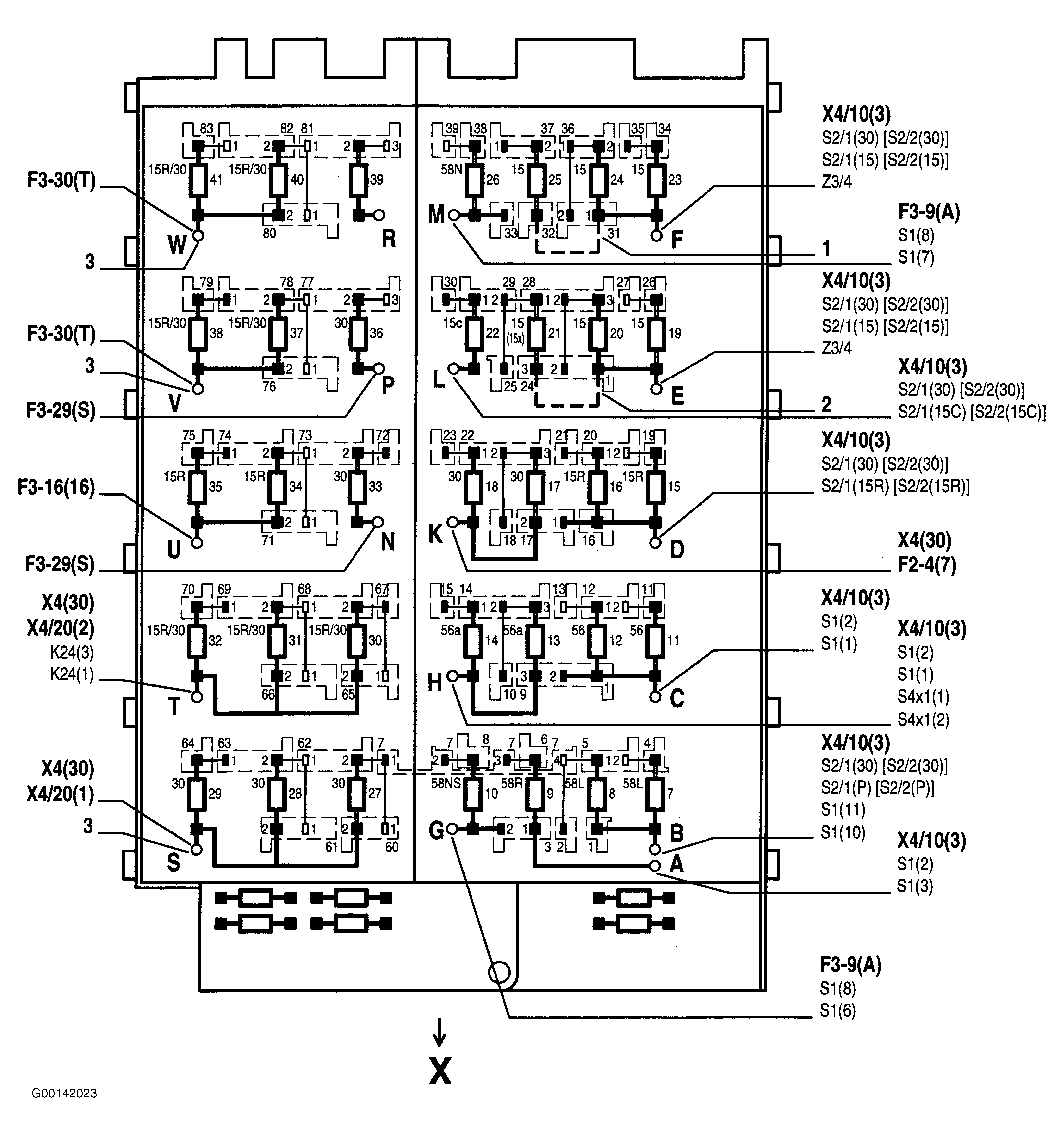

Fig 6: Identifying Engine Compartment Fuse Panel F3 (Bottom View) - Circuit Identification (6 Of 7)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

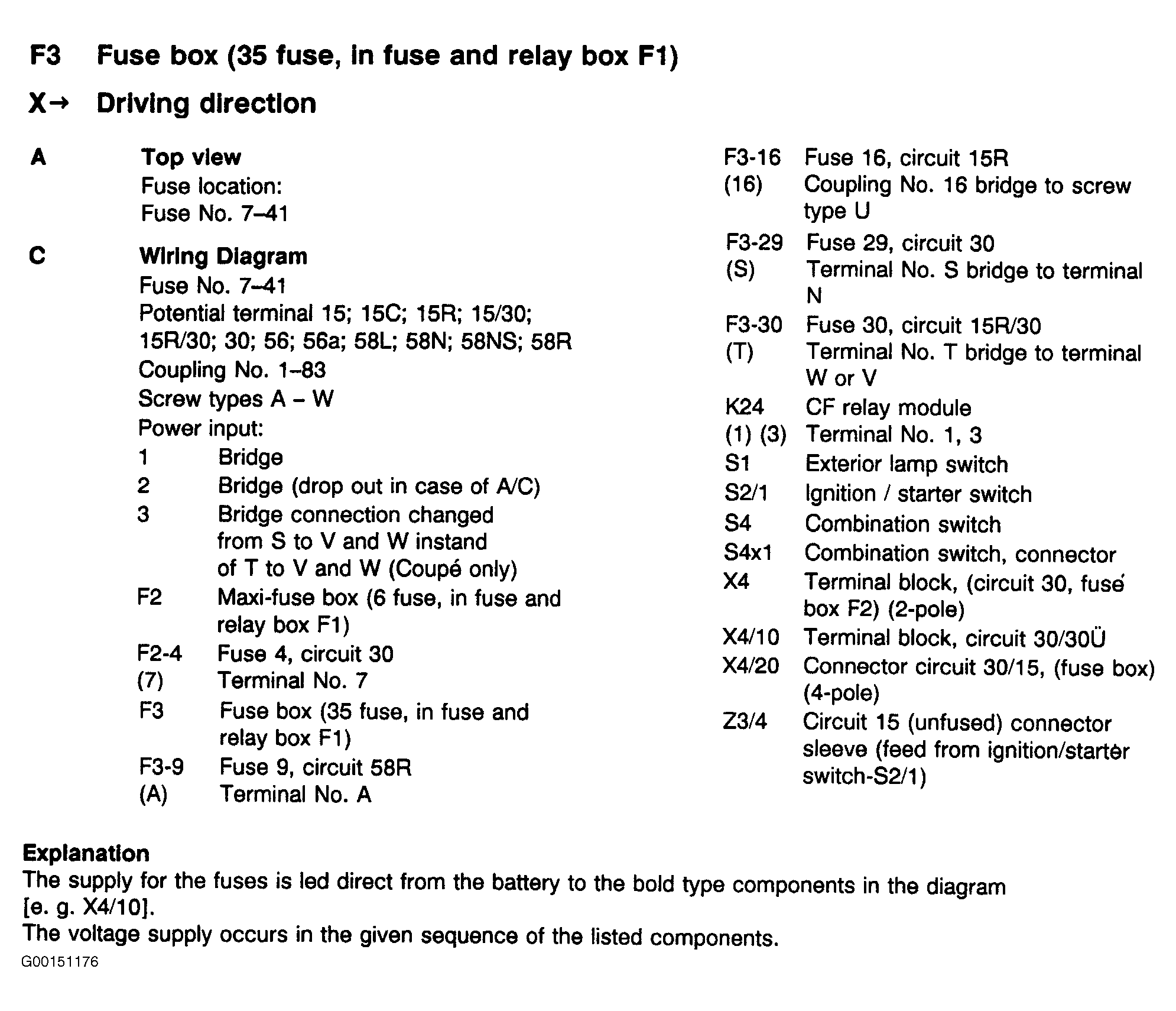

Fig 7: Identifying Engine Compartment Fuse Panel F3 - Legend (7 Of 7)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
