Component Location

Vehicle has one relay panel and 3 fuse panels, located in the following areas:

• Engine Compartment - Relay Panel (In Fuse & Relay Box F1)
• Engine Compartment - Maxi-Fuse Panel F2 (6-Fuse, In Fuse & Relay Box F1)
• Engine Compartment - Fuse Panel F3 (35-Fuse, In Fuse & Relay Box F1)
  NOTE: Fuse box F3 is a two piece design. It consists of a fuse carrier with 20 fuses and a fuse carrier with 15 fuses.
• Trunk - Fuse Panel F4 (17-Fuse)

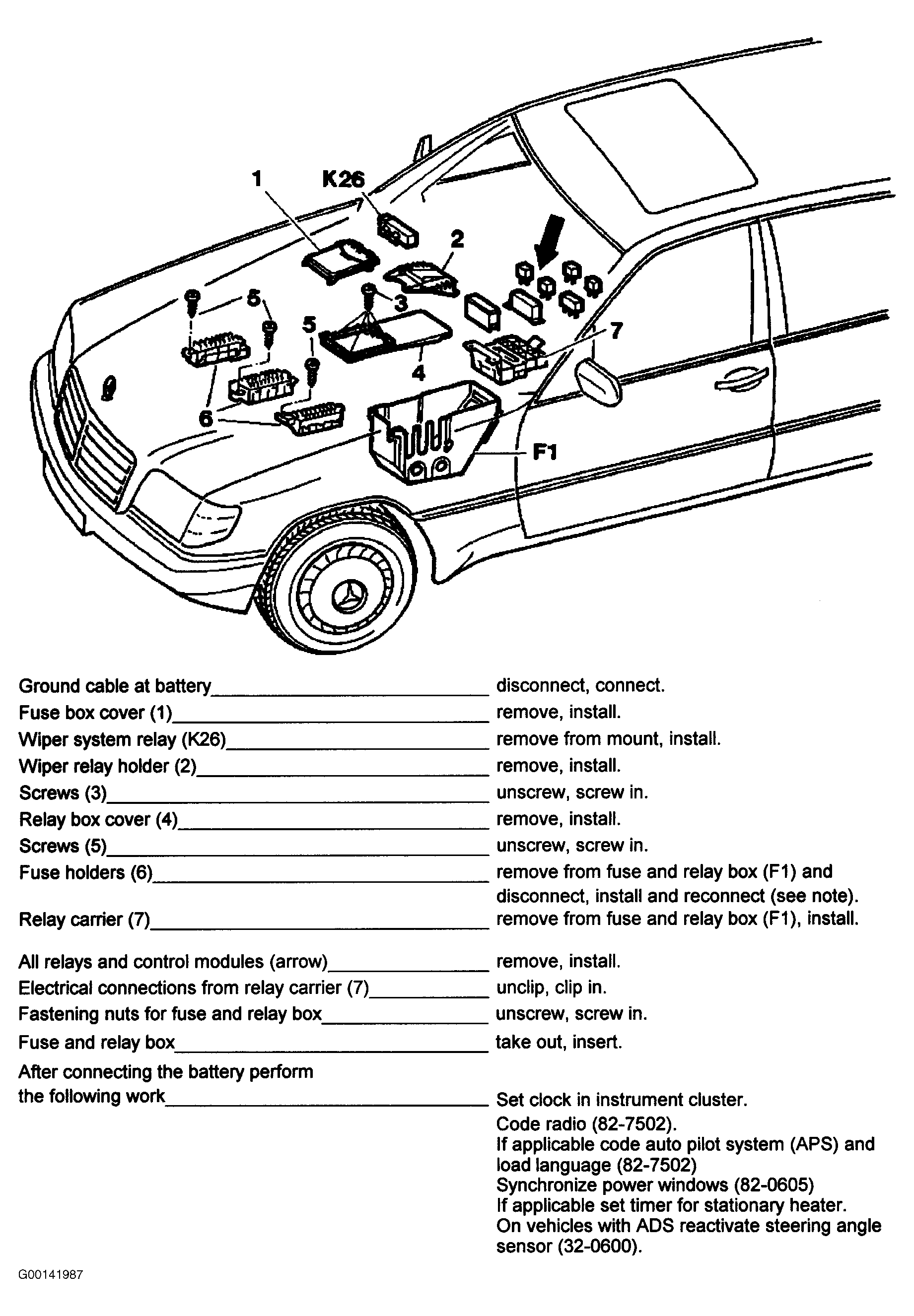

Fig 1: Engine Compartment Fuse & Relay Box F1 - Identification, & Removal & Installation (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

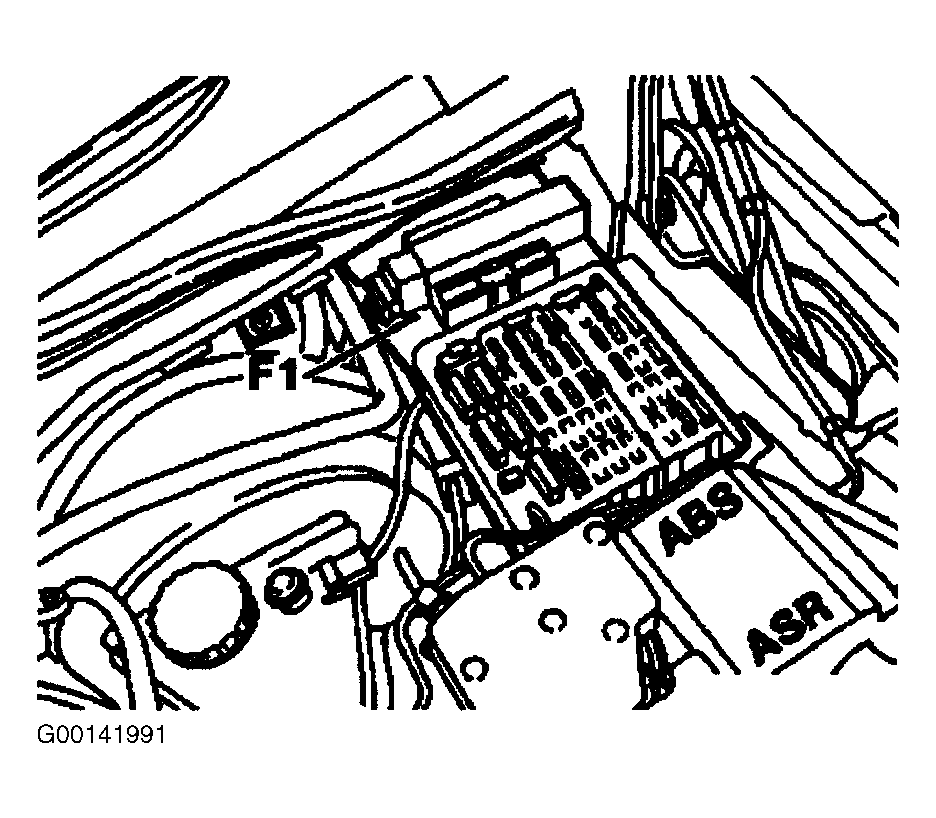

Fig 2: Engine Compartment Fuse & Relay Box F1 - Identification, & Removal & Installation (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

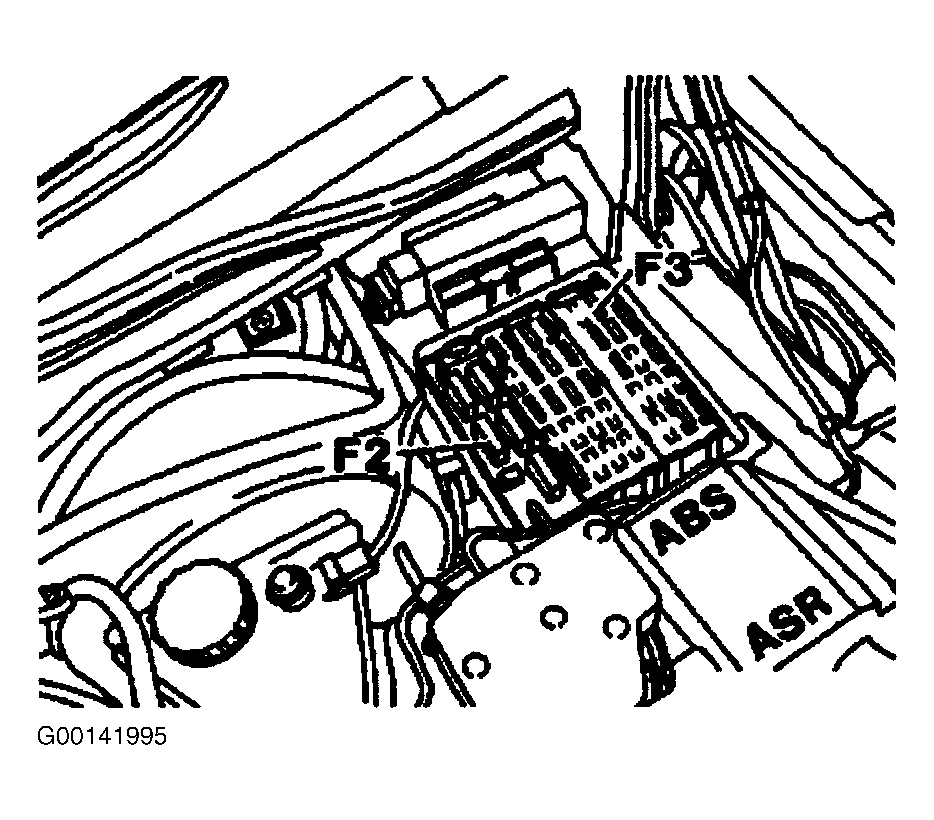

Fig 3: Engine Compartment Maxi-Fuse Panel F2 & Fuse Panel F3 (In Fuse & Relay Box F1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

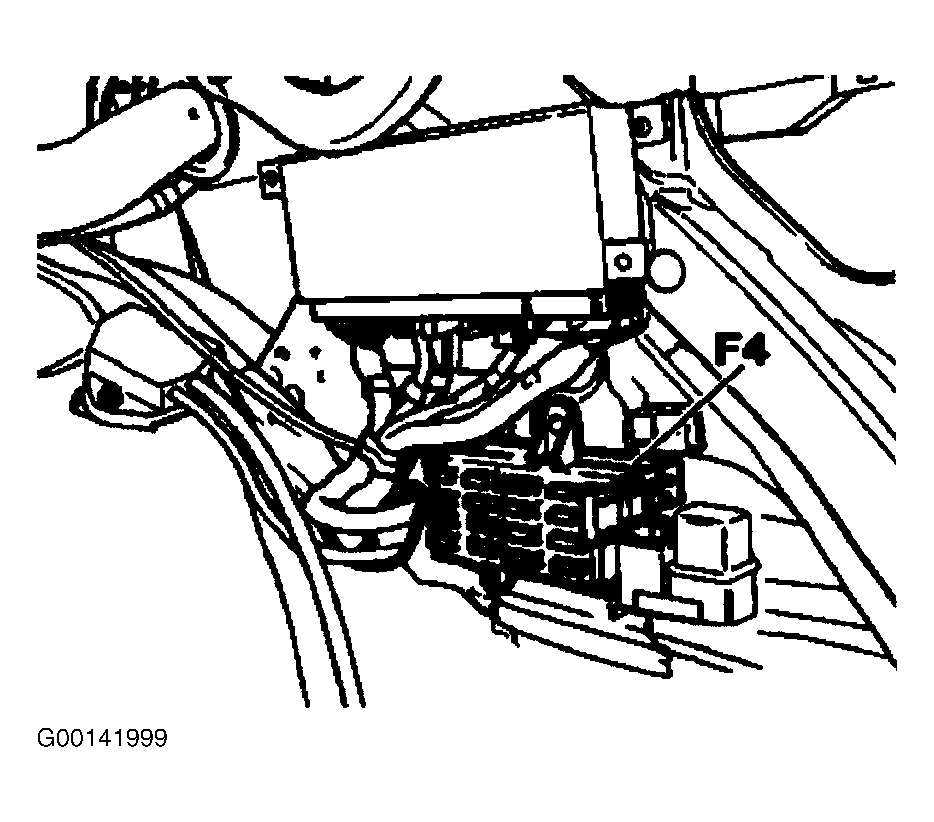

Fig 4: Trunk Fuse Panel F4

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
