Camber Strut: Removal

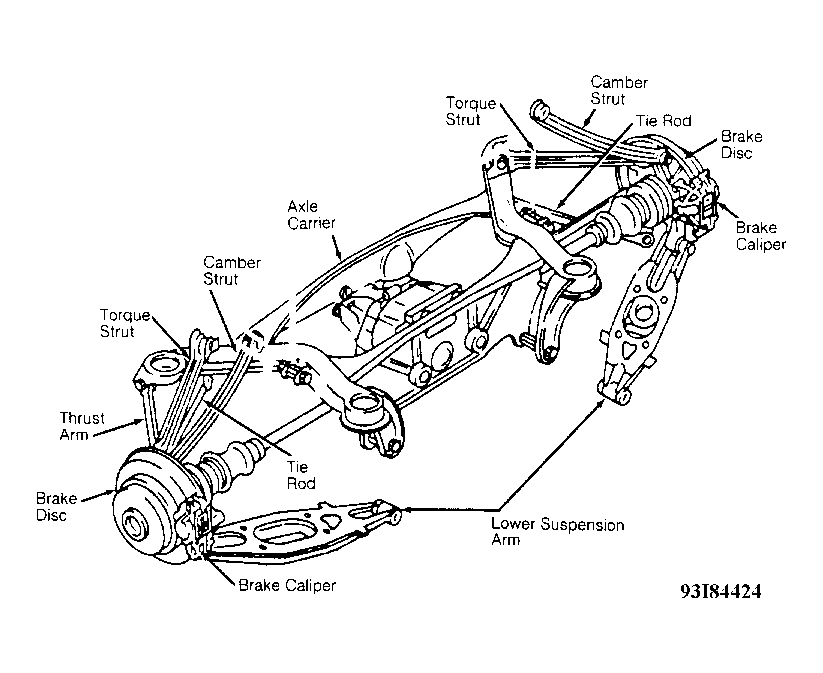

  1. Raise and support vehicle. Remove camber strut-to-axle carrier bolt. See Figure. Remove camber strut-to-wheel carrier bolt. Force strut clamping sleeve from wheel carrier.
  2. While pulling slightly outward on wheel carrier, remove camber strut at axle carrier. Replace camber strut assembly if rubber mounts are worn or damaged.
