Parking Brake Linings: Removal
WARNING: This page is about a different car, the 1992 Mercedes-Benz 300E. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support vehicle. Remove wheel and tire. Disconnect hydraulic line. Remove caliper and rotor. Turn rear axle flange until one threaded hole faces hold-down spring. Compress spring with Spring Installer/Remover (112 589 09 61 00) and turn 90 degrees.

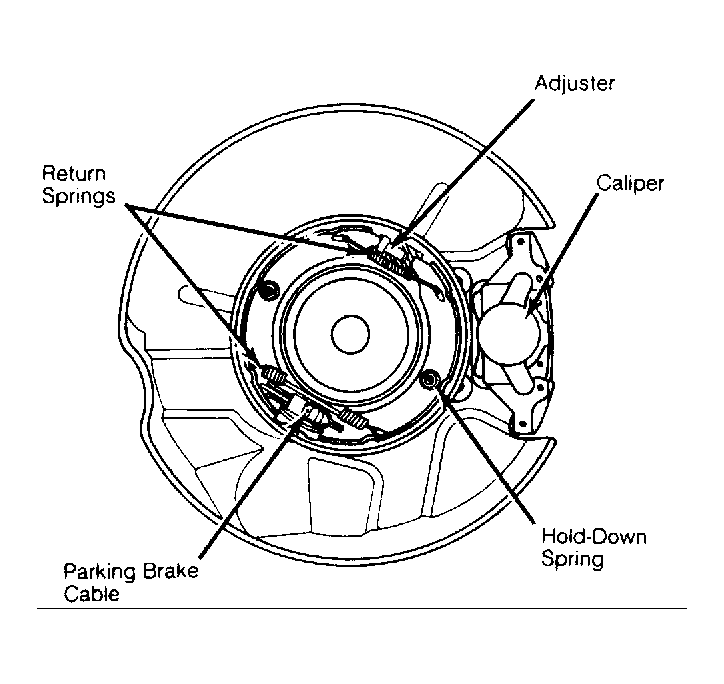

- Remove all retainers and hold-down springs. Detach lower return spring, opposite adjuster. Pull brake shoes apart far enough to remove over rear axle shaft flange. Detach upper return spring. Remove adjuster. See Fig 1 .
