Rear Fender Hole Specifications

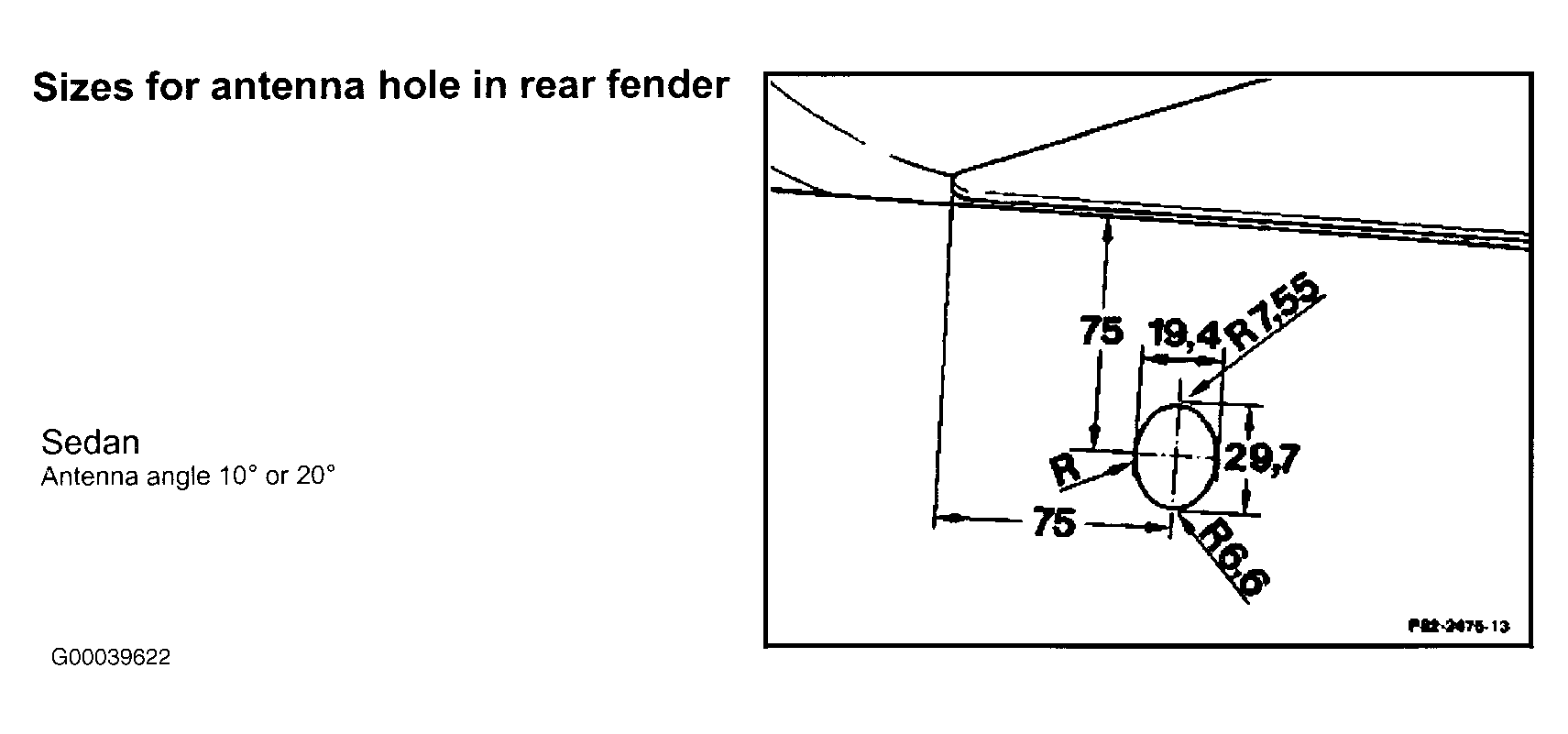

Fig 1: Identifying Rear Fender Antenna Hole (1 Of 2)
G00039622Courtesy of DAIMLERCHRYSLER CORPORATION

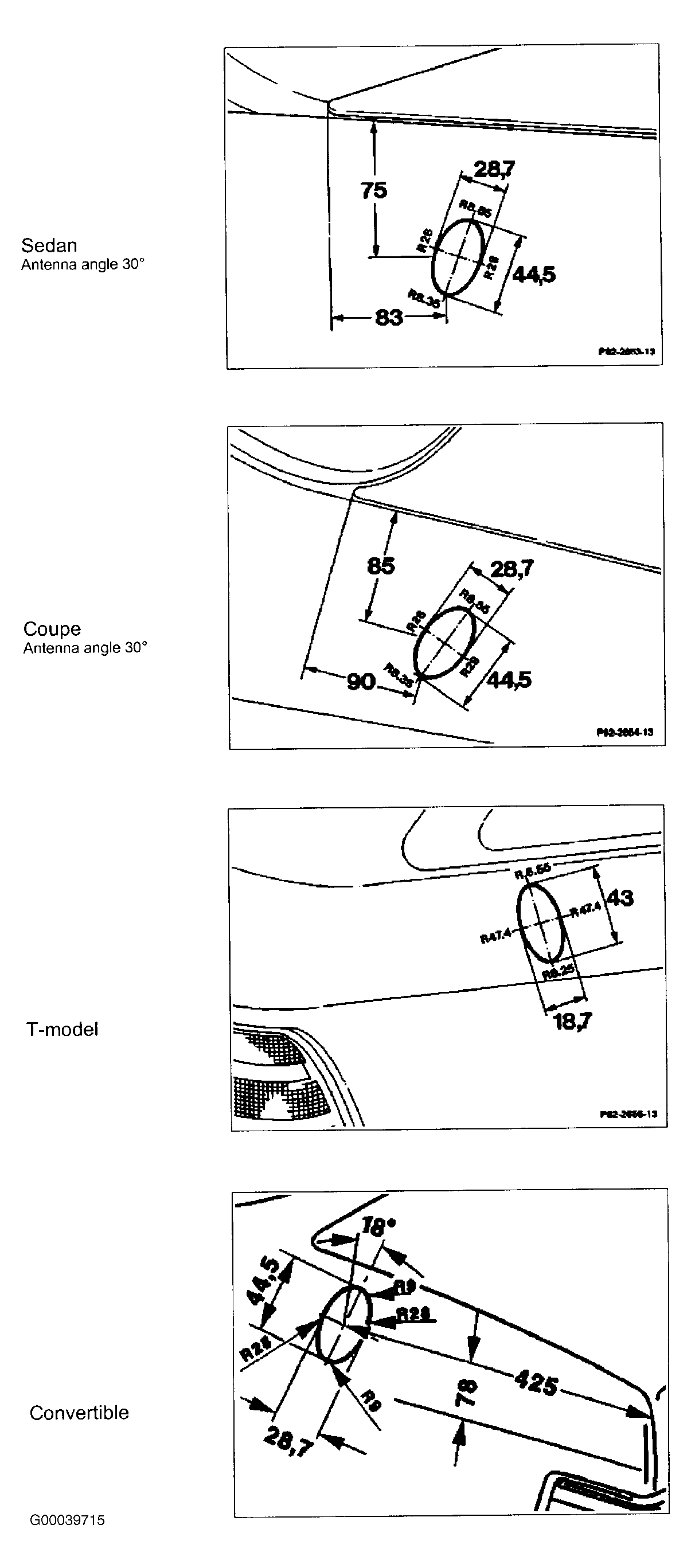

Fig 2: Identifying Rear Fender Antenna Hole (2 Of 2)
G00039715Courtesy of DAIMLERCHRYSLER CORPORATION
