Wiring Diagrams

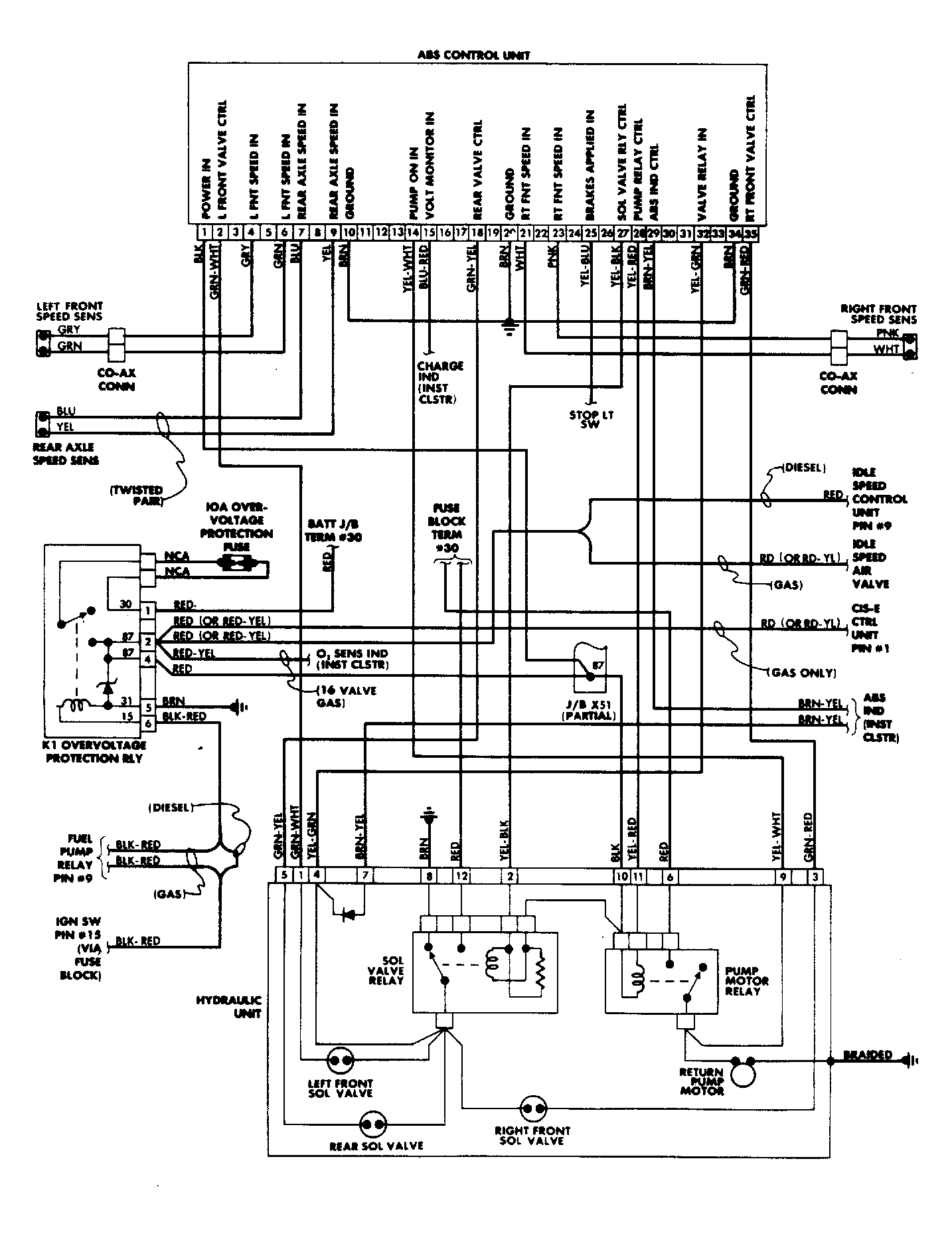

Fig 1: ABS System Wiring Diagram (190 Series)
G52137

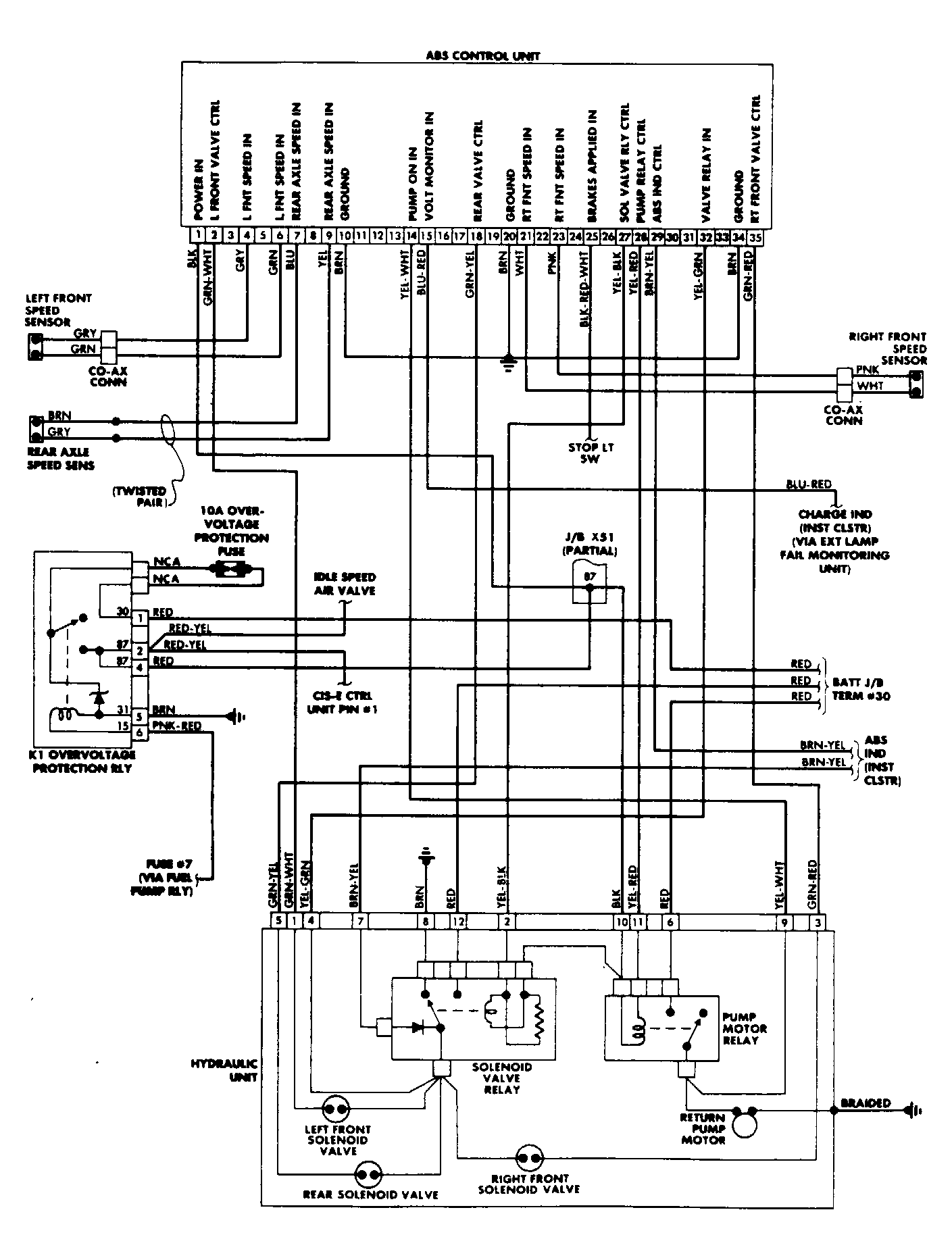

Fig 2: ABS System Wiring Diagram (300 & 260 Series)
G52138

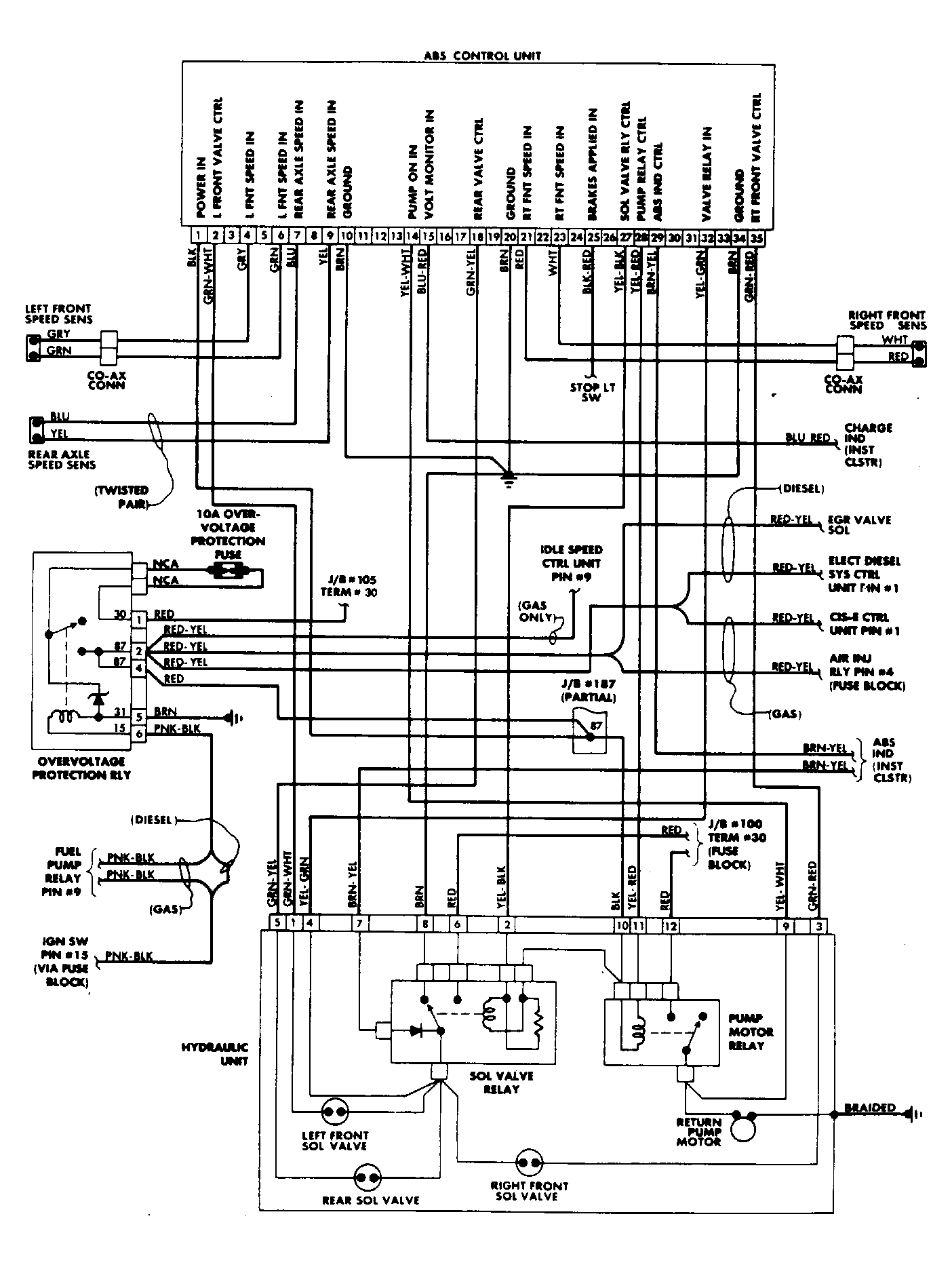

Fig 3: ABS System Wiring Diagram (300SDL, 420/560SEL & 560SEC)
G52139

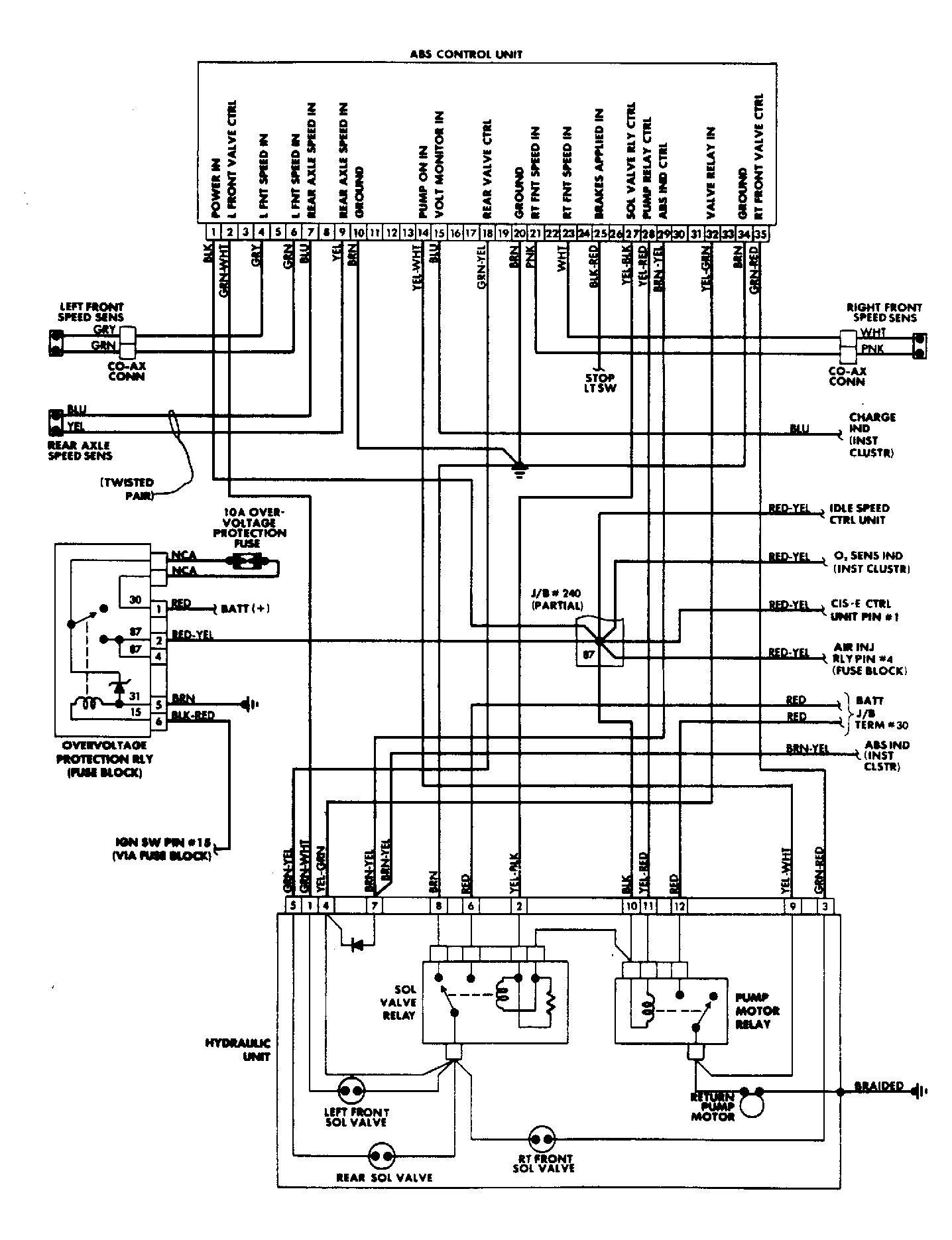

Fig 4: ABS System Wiring Diagram (560SL)
G52140
