Wiring Diagrams

For 190 series wiring diagrams, see Fig 1 and Fig 2 .

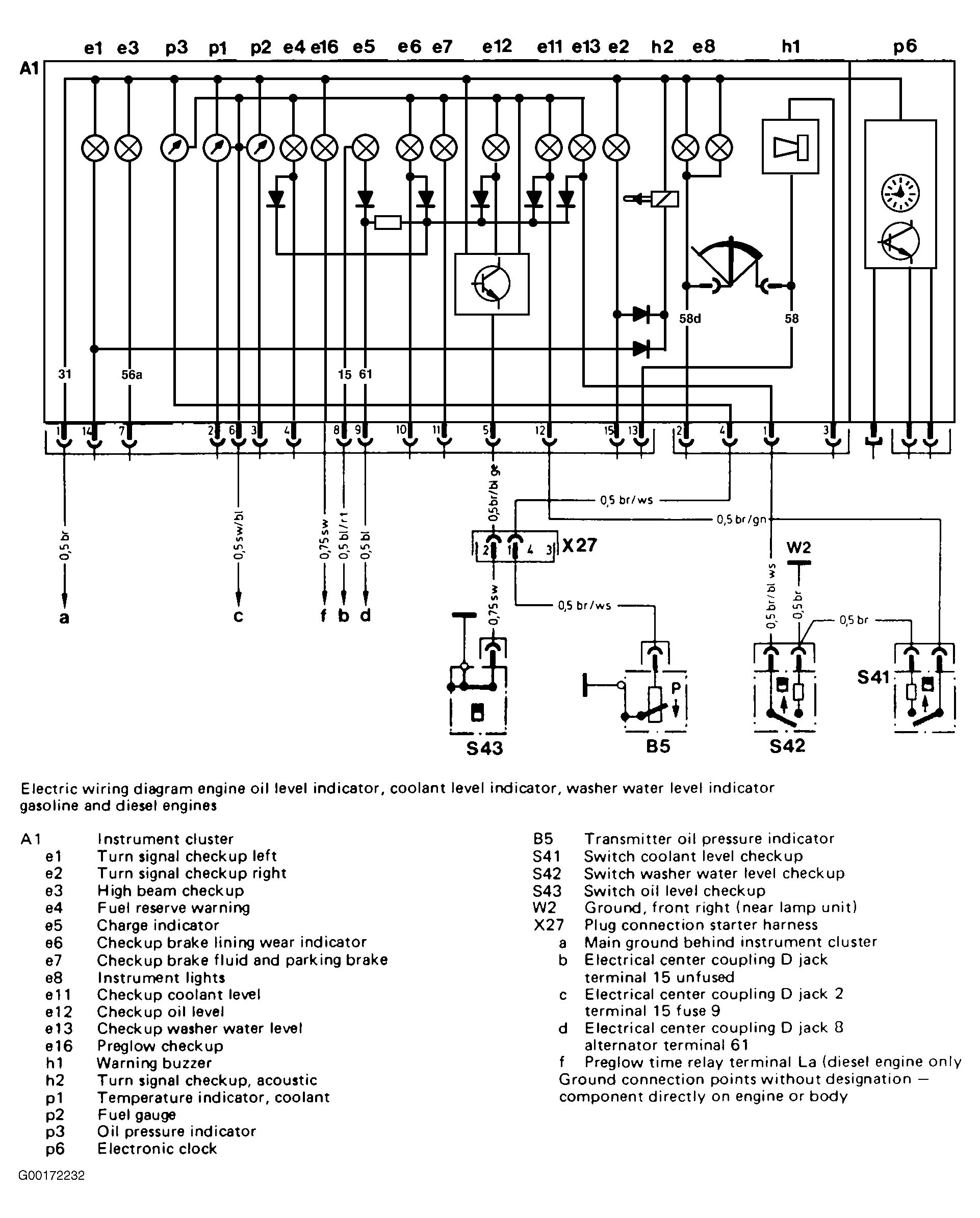

Fig 1: Instrument Cluster Wiring Diagram (190 Series)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

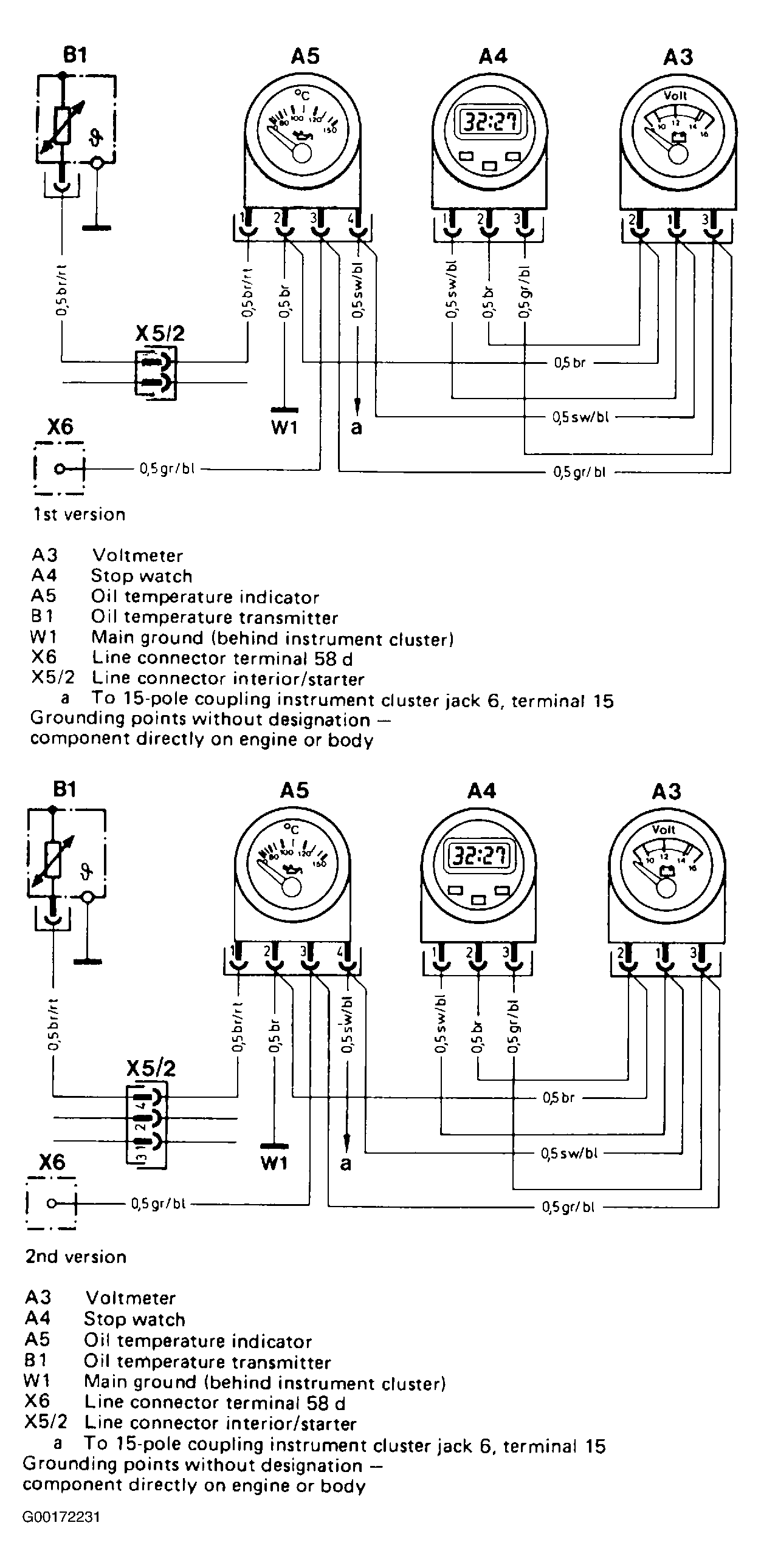

Fig 2: Auxiliary Instruments Wiring Diagrams (190 Series)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
