Indicator Lamp Does Not Light With Engine Running & Washer Water Level Below Minimum

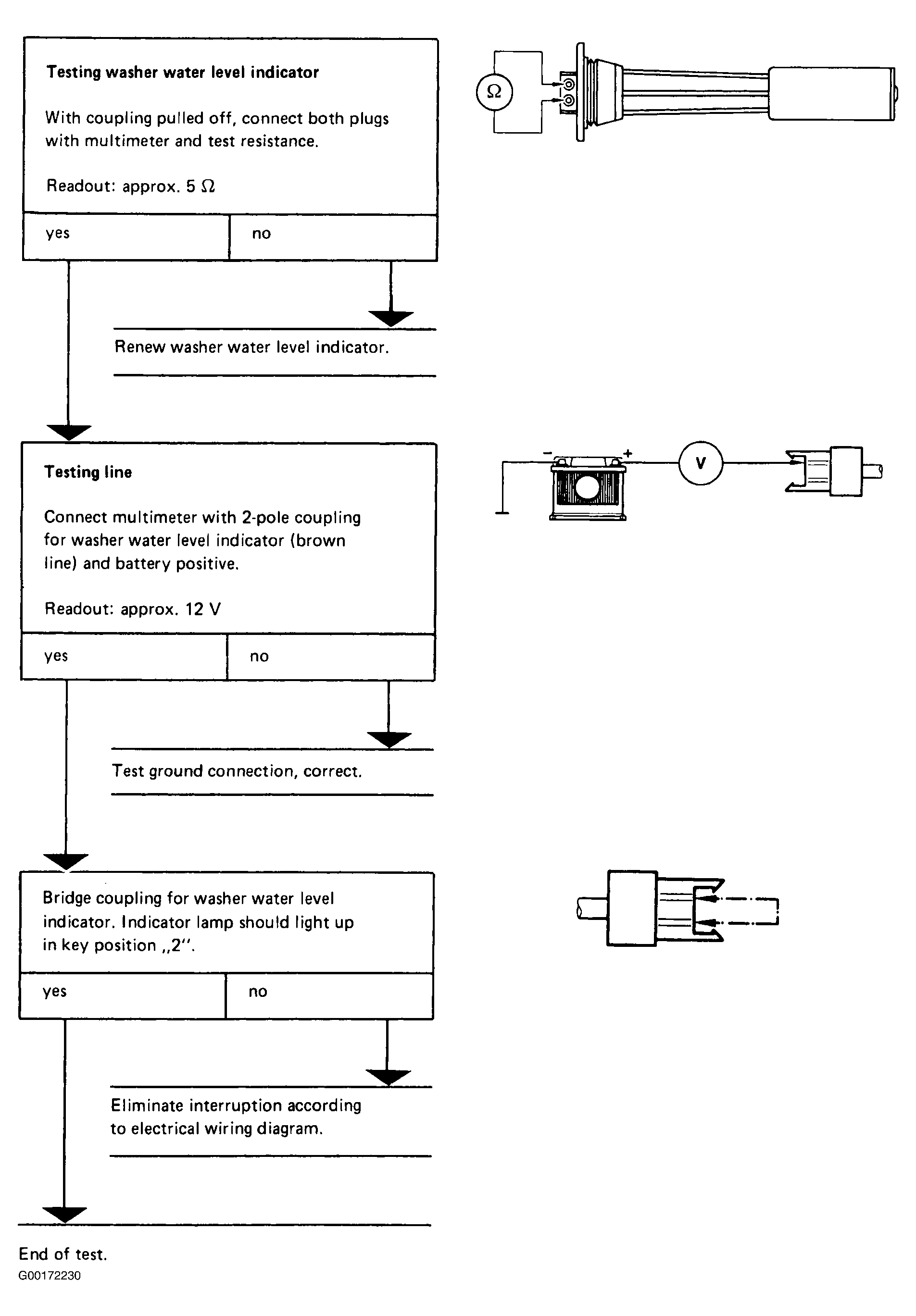

Fig 1: Indicator Lamp Not Lighting Up With Engine Running & Washer Level Below Minimum
G00172230Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
