Removing and installing traffic data memory - AR82.61-P-7483A
MODEL 129 with CODE (351) Auto-pilot system (APS)
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| 2 | Disconnect ground lead from battery | AR54.10-P-0003A | |
| 3.1 | Remove navigation processor | as of 1.1.98 and retrofitted after 1.1.98 | AR82.61-P-7410F |

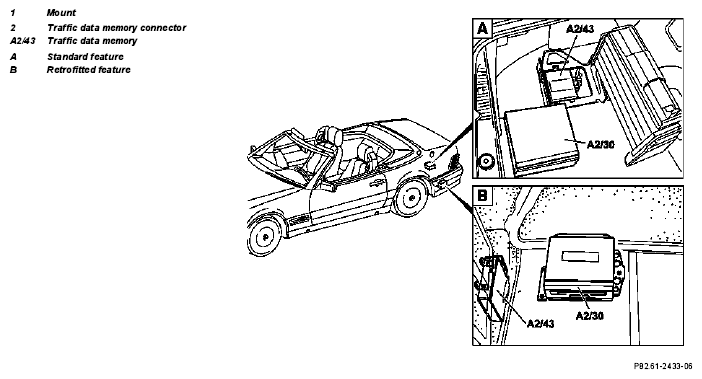

| 4.1 | Remove traffic data memory from mount (1) | as of 1.1.98 and retrofitted after 1.1.98 | |
| 5 | Unlock connector and disconnect traffic data memory connector (2) from traffic data memory (A2/43) | ||
| 6 | Install in opposite order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
