Removing and installing tail lamp - AR82.10-P-4905EA

MODEL 129, 202.01 /02 /12 Illustrated on model 202

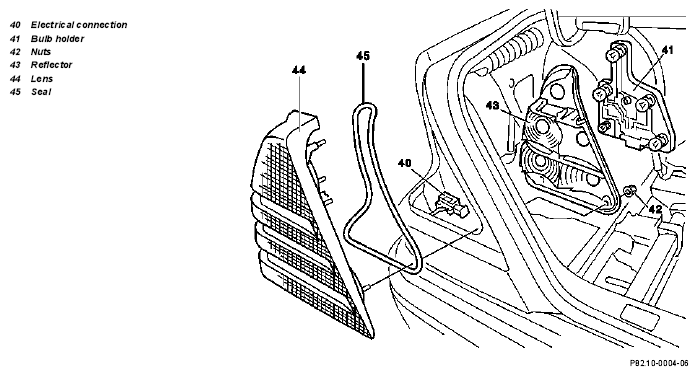

Fig 1: Identifying Tail Lamp Components (1 Of 2)

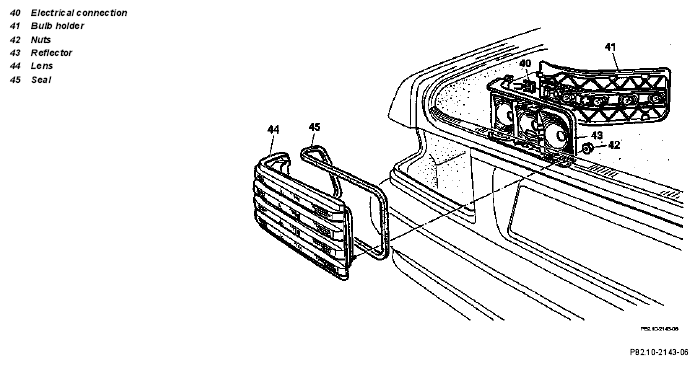

Fig 2: Identifying Tail Lamp Components (2 Of 2)

	Removal, installation
1.1	Remove carpeting in trunk	Model 202
2.1	Remove trim of rear center section	Model 202
3.1	Remove left or right wheelhouse liner	Model 202
4	Unplug electrical connection (40)
5	Release bulb holder (41), take off
6	Unscrew nuts (42)
7	Take off lens (44) to the outside	Installing  : Examine seal (45) for damage. Ensure seal (43) is correctly located
8	Take off reflector (43) to the inside
9	Install in the reverse order
10	Check for proper function
