Removing and installing loudspeakers in front doors - AR82.62-P-7845A

MODEL 129

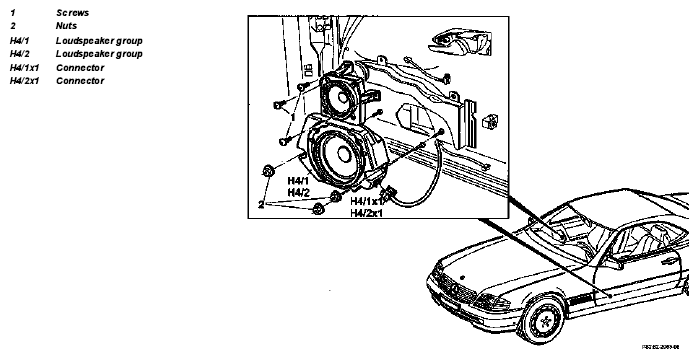

Fig 1: Identifying Loudspeakers In Front Doors

	Removal, installation
1	Remove door trim panel		ra72001290100x
2	Unscrew screws (1)
3	Unscrew nuts (2)
4	Disconnect connector (H4/1x1, H4/2x1)
5	Remove loudspeaker group (H4/1, H4/2)	As of vehicle ident end no. -049666 all loudspeakers will be installed with larger housing.
6	Install in the reverse order
7	Perform function check
