Removing and installing headlamp range adjustment control module - AR82.10-P-4081A

MODEL 129 up to 30.5.96 with CODE (612b) Xenon headlamp unit

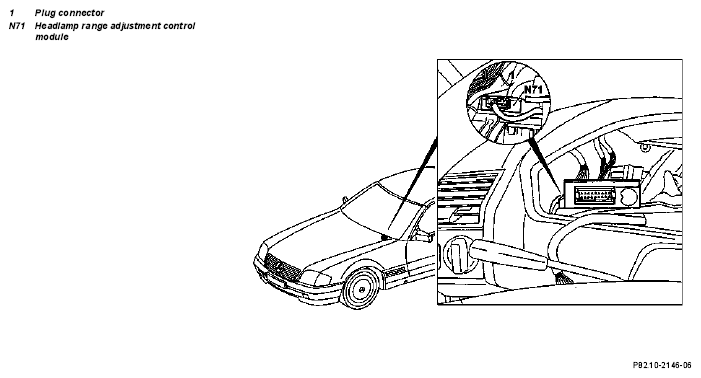

Fig 1: Identifying Headlamp Range Adjustment Control Module (1 Of 2)

	Removing, installing
1	Remove instrument cluster		AR54.30-P-6015EA
2	Remove vent hose	Lay insulating mat down to side.
3	Disconnect plug connector (1) from headlamp range adjustment control module (N71)
4	Remove headlamp range adjustment control module (N71)
5	Install in the reverse order
6	Adjust zero position of headlamps with HHT	See Diagnosis Manual, Body
7	Check headlamp adjustment and if necessary correct.		AP82.10-P-8260A
