Removing and installing center high-mounted stop lamp - AR82.10-P-5375B

MODEL 129 Center high-mounted stop lamp, incandescent bulb version

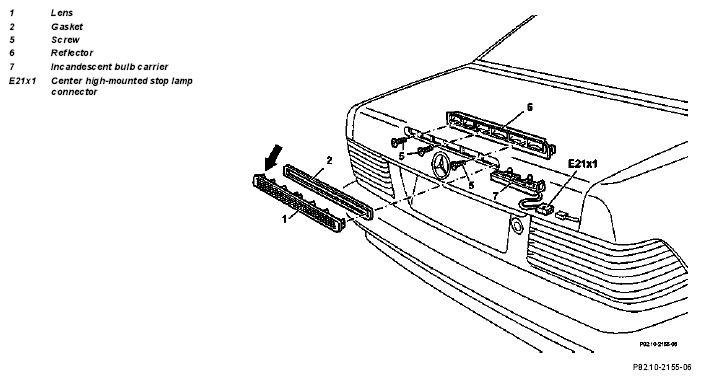

Fig 1: Identifying Center High-Mounted Stop Lamp Components

OPERATION NO. OF OPERATION TEXTS OR OF STANDARD TEXTS AND FLAT RATES

Operation no.

Operation text

	Removal, installation
1	Remove incandescent bulb carrier (7)		AR82.10-P-5385A
2	Disconnect center high-mounted stop lamp connector (E21x1) from incandescent bulb carrier (7)
3	Remove lens (1)	Carefully insert installation wedge between lens and trunk lid. Unclip lens at retaining lugs (arrow).	Fig 2
4	Unscrew screws (5) and remove reflector (6)	For this purpose remove reflector (6) through opening in trunk lid. Check gasket (2) for damage, replace if necessary.
5	Install in opposite order
6	Check function

Fig 2: Identifying Installation Wedge (110 589 03 59 00)
