Removing and installing bracket for cellular telephone - AR82.70-P-8918DD
MODEL 129 as of 1.7.00 with CODE (854) MB cellular telephone

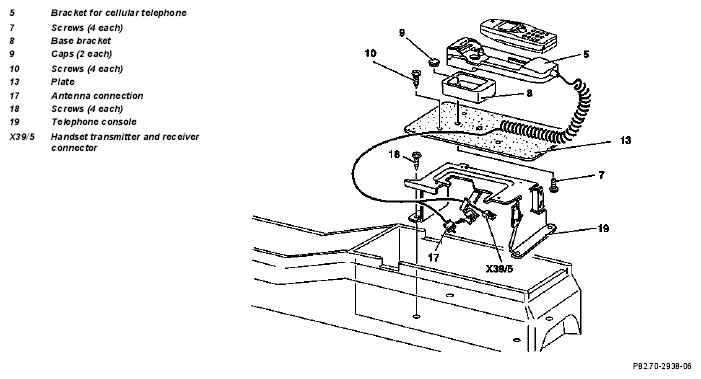

| Removing, installing | |||
| 1 | Remove cellular telephone from bracket (5) | ||
| 2 | Unscrew screws (10) and remove plate (13) | ||
| 3 | Disconnect handset transmitter/receiver connector (X39/5) and antenna connection (17) | ||
| 4 | Disconnect bracket for cellular telephone (5) from base bracket (8) and place to side | ||
| 5 | Unscrew 4 screws (7) from base bracket (8) and remove base bracket (8) | ||
| 6 | Unscrew 4 screws (18) from telephone console (19) | ||
| 7 | Remove telephone console (19) | ||
| 8 | Install in the reverse order |
