Removing and installing paneling on glass roof - AR68.30-P-4370C
MODEL 129 with CODE (415a) Glass roof
| Removal, installation | |||
| 1 | Remove glass roof, turn over and put down on soft surface to avoid damaging glass and paint | ||

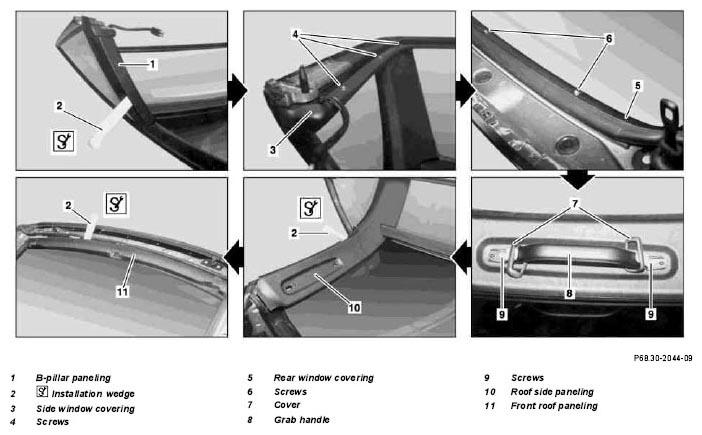

| 2 | Unclip paneling on B-pillar (1) with installation wedge (2) | Fig 2 | |
| 3 | Remove covering on side window (3) by unscrewing screws (4) | ||
| 4 | Remove covering on rear window (5) by unscrewing screws (6) | ||
| 5 | Press cover (7) off of grab handle (8) with long wedge and remove grab handle (8) by unscrewing screws (9) | Fig 3 | |
| 6 | Unclip roof side paneling (10) toward inside with installation wedge (2) | ||
| Fig 2 | |||
| 7 | Unclip front roof paneling (11) toward inside with installation wedge (2) | Fig 2 | |
| 8 | Install in opposite order |
