Removing and installing bulbs in instrument cluster - AR54.30-P-6049CS

MODEL 129

Illustrated on model 129 up to 31.10.93

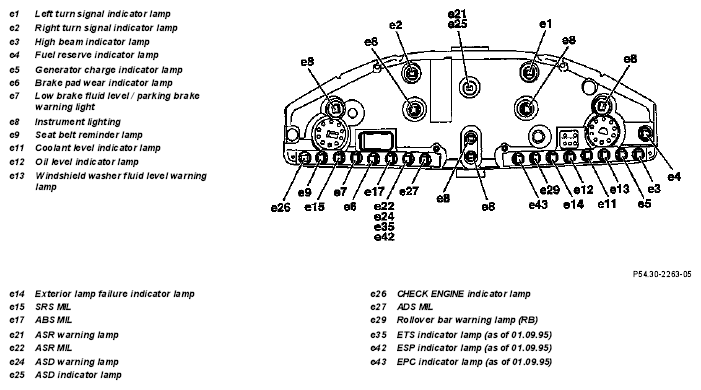

Fig 1: Identifying Bulbs In Instrument Cluster Components - Model 129 Up To 31.10.93

Illustrated on model 129 as of 01.11.93

Fig 2: Identifying Bulbs In Instrument Cluster Components - Model 129 Up To 01.11.93

	Removal, installation
1	Remove instrument cluster		AR54.30-P-6015EA
2.1	Unscrew screws (1)	Model 129 up to 31.10.93
3.1	Fold open electronic plate (2)	Model 129 up to 31.10.93 Do not allow cover in electronic plate to fall out.
4	Turn bulbs 90° to left with special tool and remove		Figure
			Fig 4
5	Install in the reverse order

Fig 3: Identifying Insert Sleeve (129 589 00 09 00)

Fig 4: Identifying Insert Sleeve (129 589 01 09 00)
