Replacing Antenna Mast Assembly

NOTE: Use this procedure to replace antenna guide with assembly removed from vehicle.

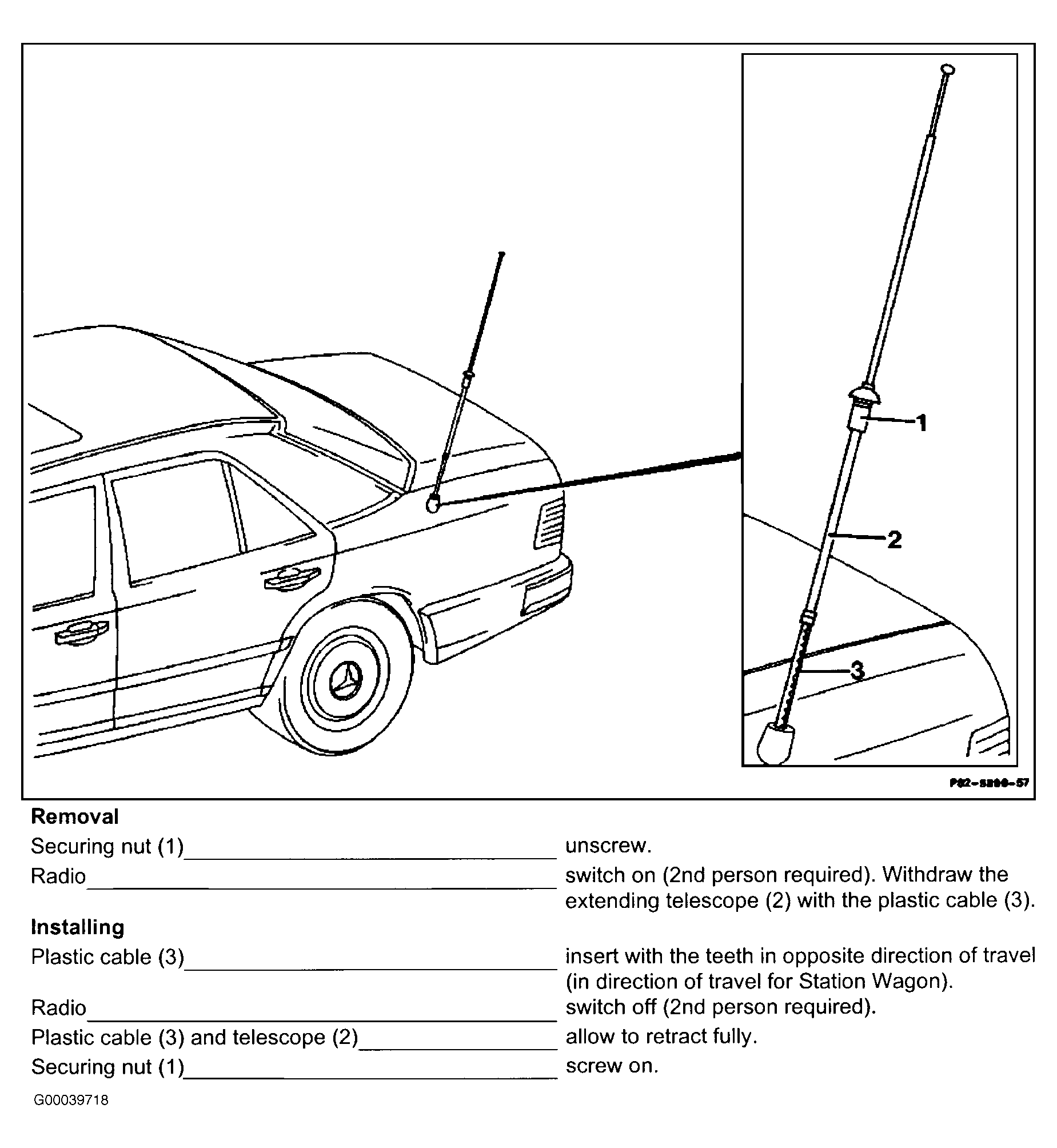

Fig 1: Replacing Mast Assembly

G00039718

Courtesy of DAIMLERCHRYSLER CORPORATION
