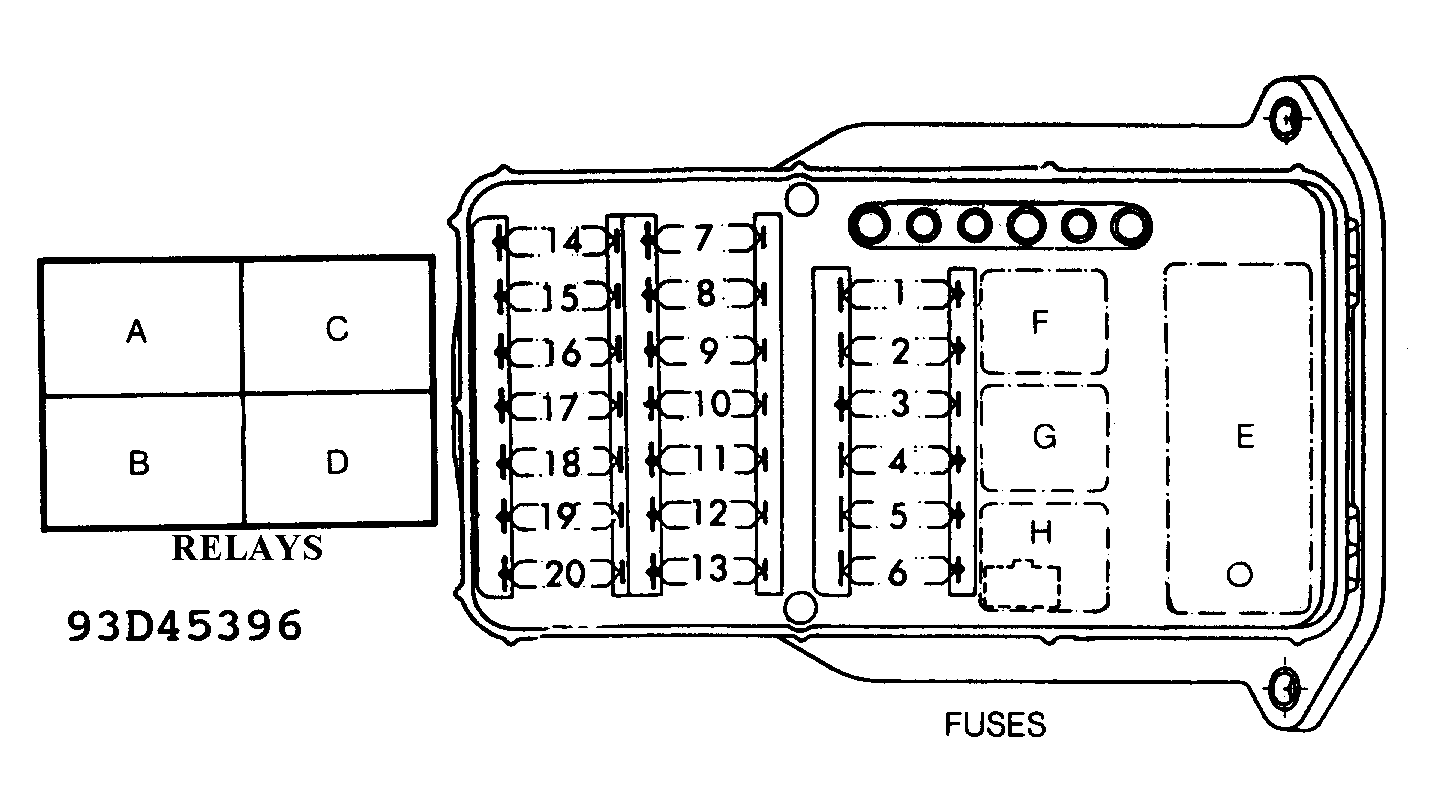

Fuse Box Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
- 1 - 16 Amp
Auxiliary Fan & Climate Control, Compressor Clutch Control (Diesel Engines)
- 2 - 2 Amp
Blank
- 3 - 16 Amp
Auxiliary Fan
- 4 - 8 Amp
Right High Beam Headlight
- 5 - 8 Amp
Left High Beam Headlight
- 6 - 16 Amp
Rear Defogger
- 7 - 16 Amp
Power Windows
- 8 - 16 Amp
Power Windows
- 9 - 8 Amp
Anti-Lock Brake System (1985-86), Stop & Back-Up Lights, Cruise Control, Gauges & Warning Indicators
- 10 - 8 Amp
Coolant Fan & Clock, Cruise Control & Gauges, Heated Seats (If Equipped: 16 Amp), Orthopedic Seat & Tachometer, Wiper/Washer, EGR & Transmission Kickdown (Diesel Engines)
- 11 - 8 Amp
Horn & Warning System, Climate Control & Turn Signal Lights
- 12 - 8 Amp
Courtesy Lights & Power Seats
- 13 - 8 Amp
Automatic Antenna & Clock, Courtesy, Hazard & Trunk Lights, Radio, Tachometer & Warning System
- 14 - 8 Amp
Instrument & Console Illumination, Park, Tail, Side Marker & License Lights, Warning System
- 15 - 8 Amp
Park & Taillights
- 16 - 8 Amp
Foglights
- 17 - 8 Amp
Right Low Beam Headlight
- 18 - 8 Amp
Left Low Beam Headlight
- 19 - 8 Amp
Cigarette Lighter & Glove Box Light, Radio & Rear Defogger, Sliding Roof (If Equipped: 16 Amp)
- 20 - 16 Amp
Headlights & Wiper/Washer
