1987 Wiring Diagrams - 260E, 300D, 300E & 300TD: Wiring Diagram

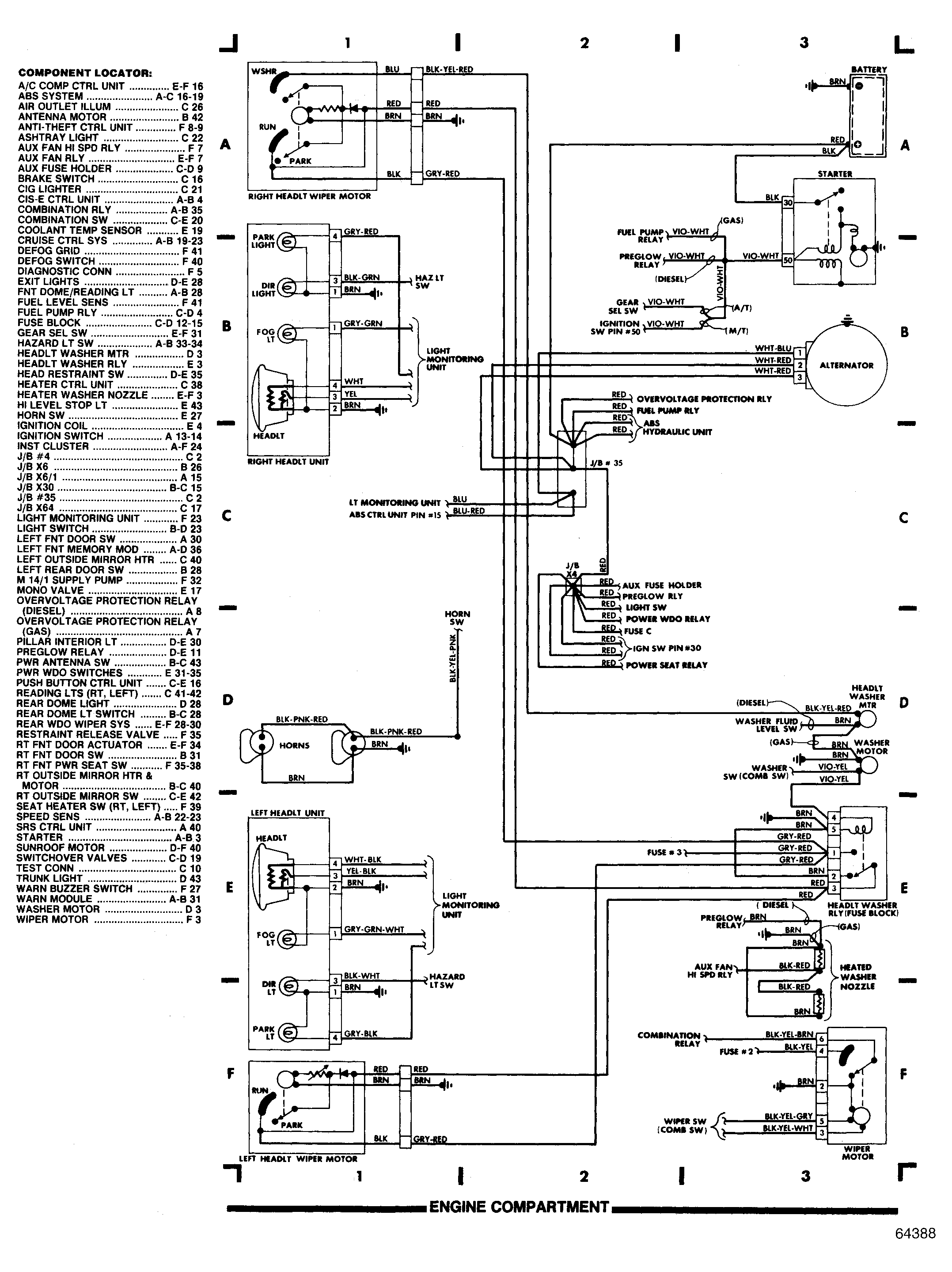

Fig 1: Engine Compartment (Grids 1-3)

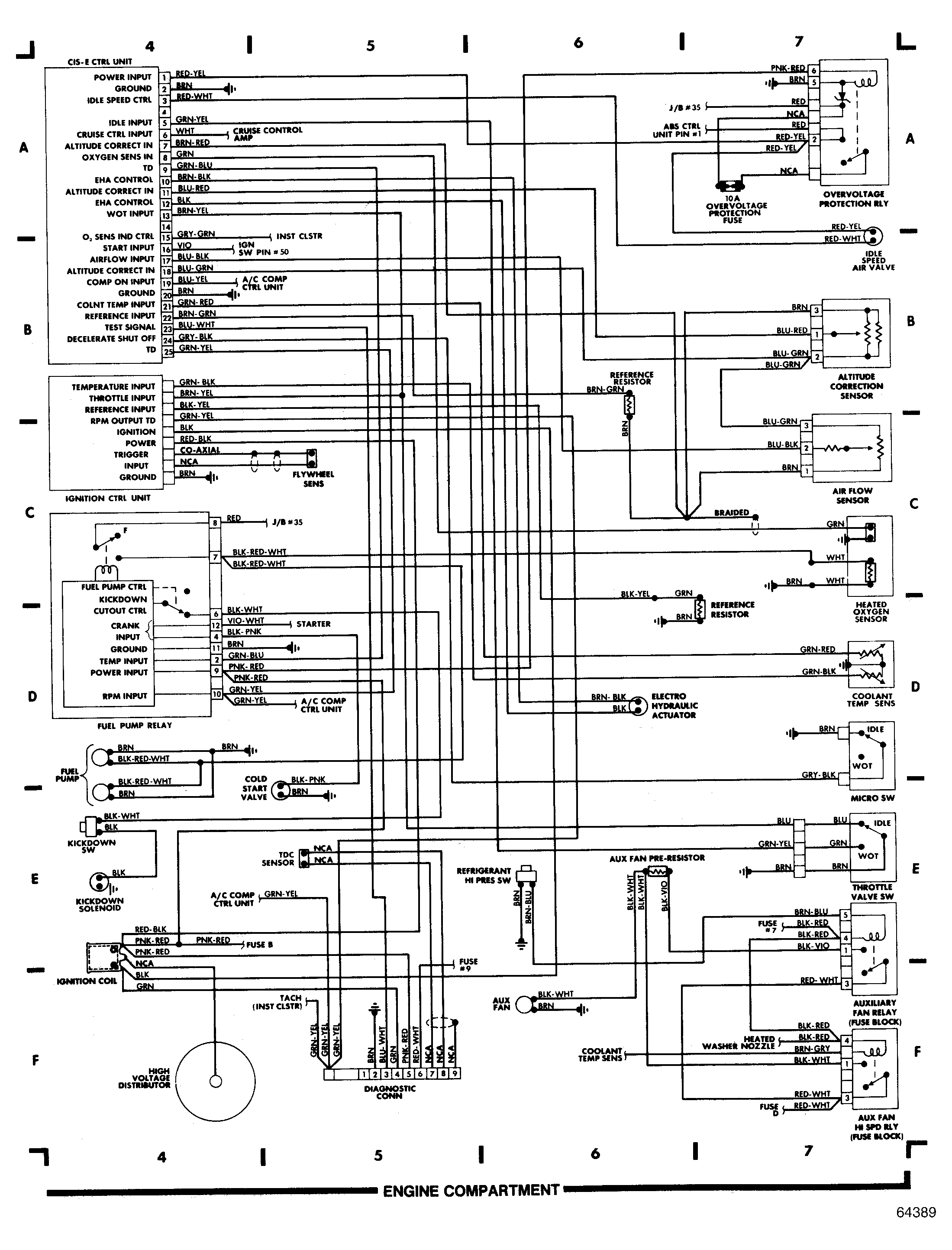

Fig 2: Engine Compartment (Cont.) (Grids 4-7)

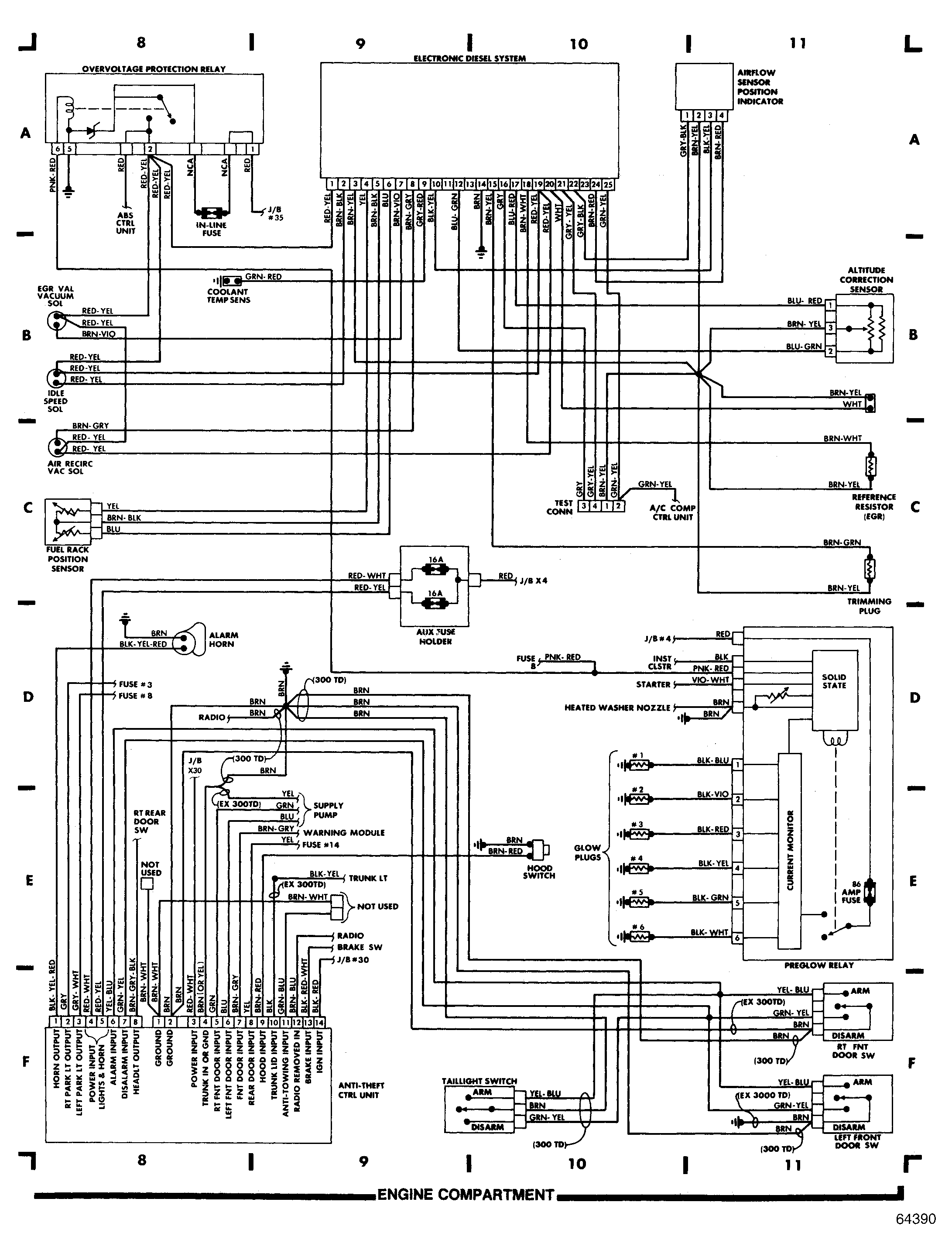

Fig 3: Engine Compartment (Cont.) (Grids 8-11)

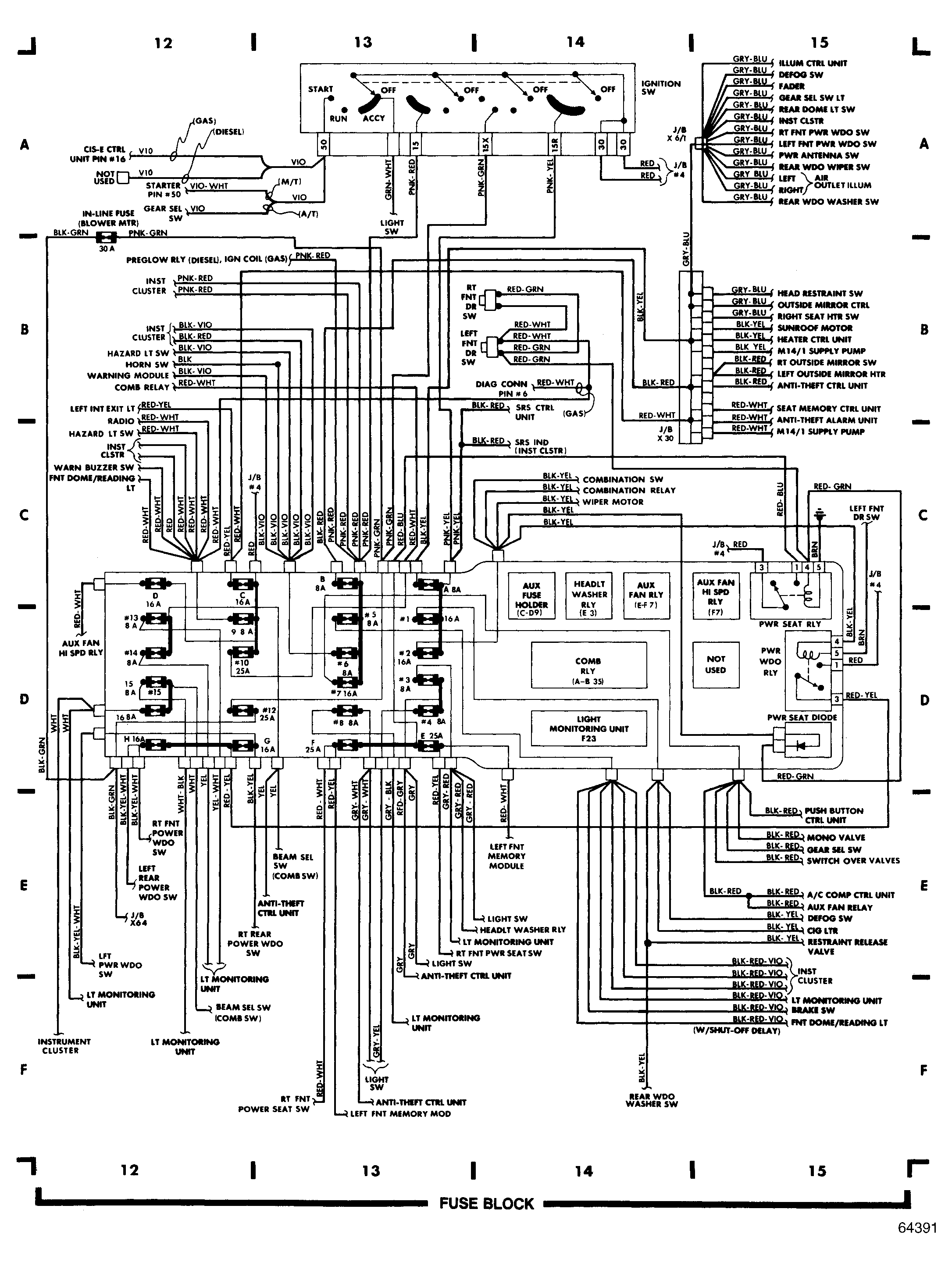

Fig 4: Fuse Block (Grids 12-15)

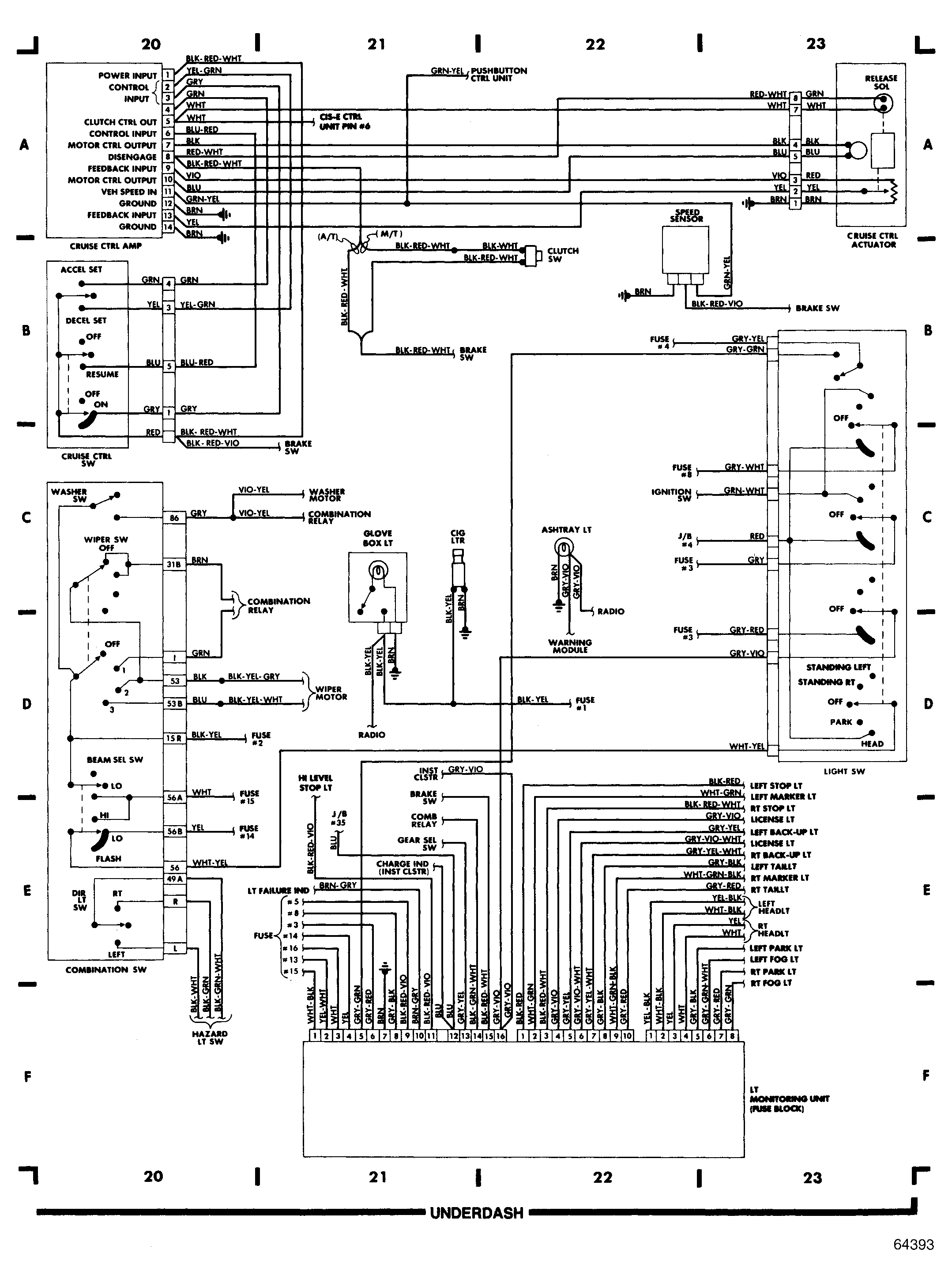

Fig 5: Underdash (Grids 16-19)

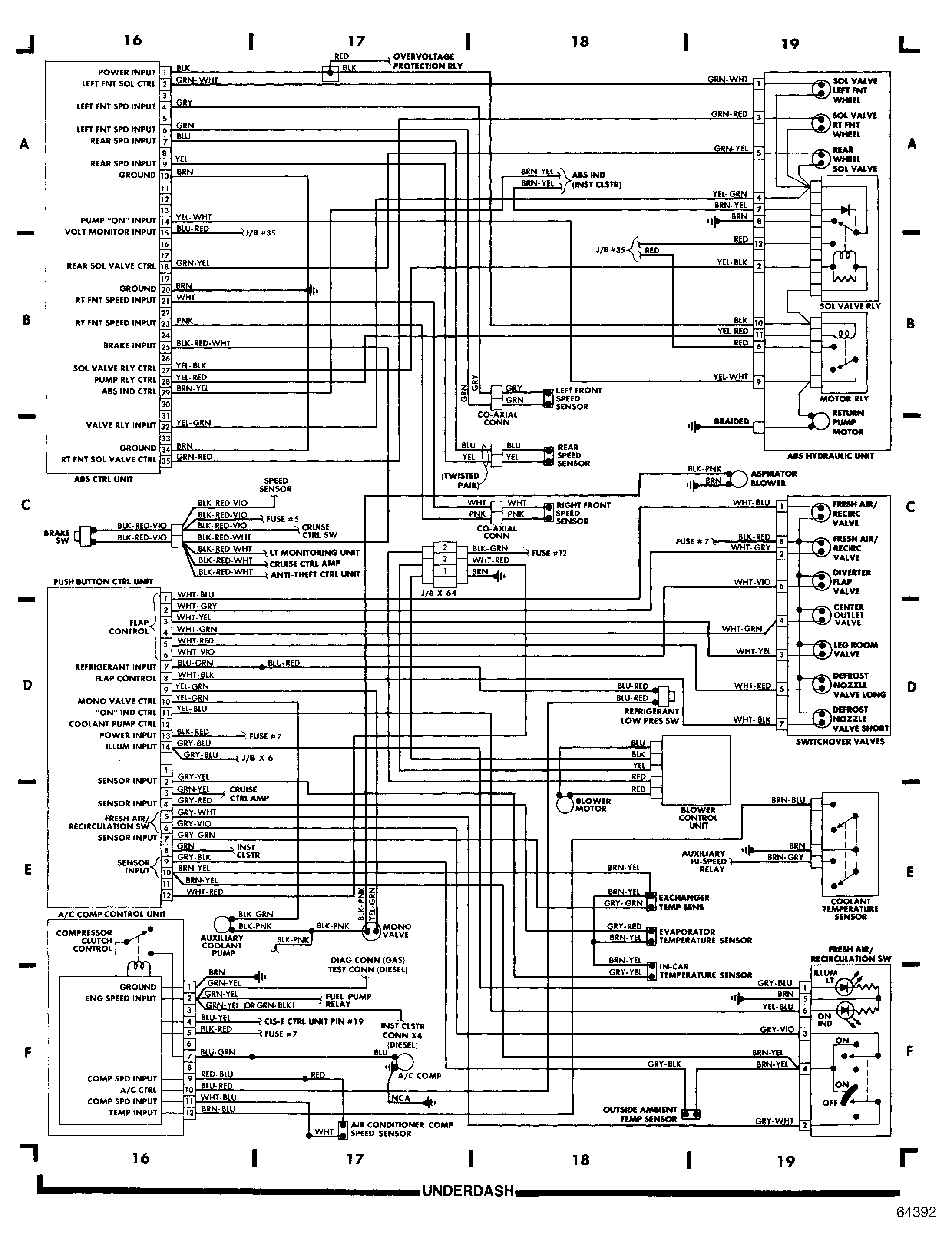

Fig 6: Underdash (Cont.) (Grids 20-23)

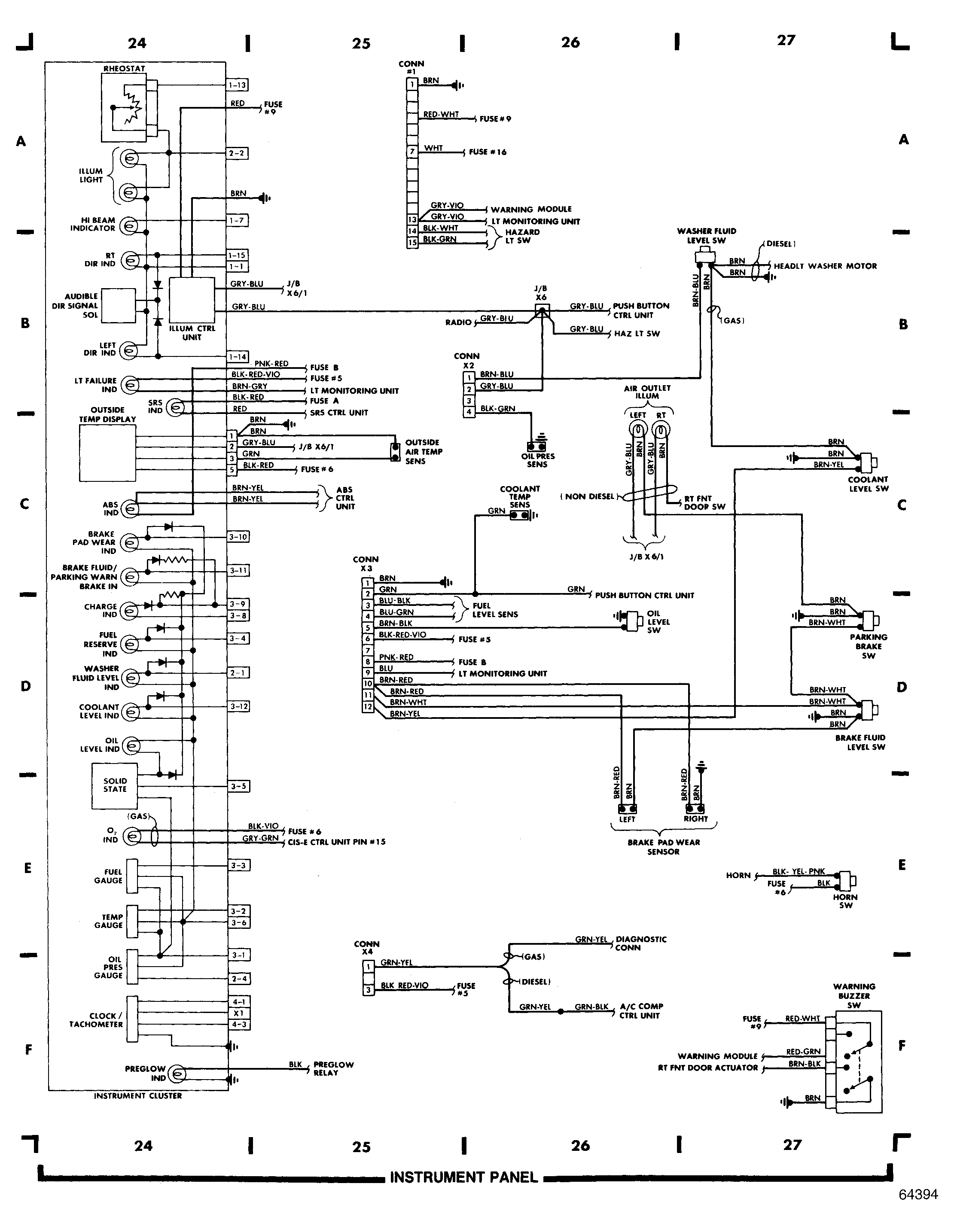

Fig 7: Instrument Panel (Grids 24-27)

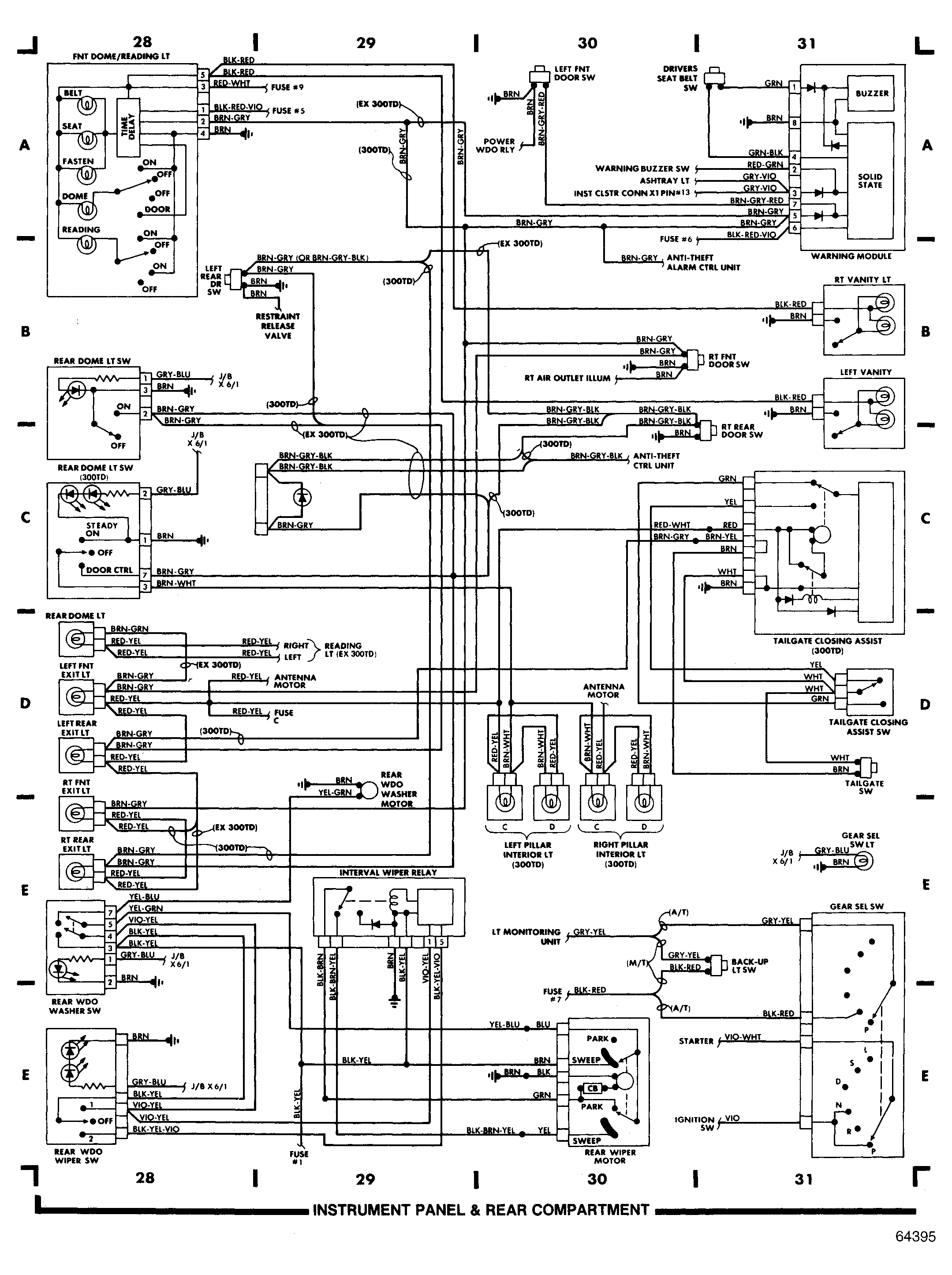

Fig 8: Instrument Panel (Cont.) & Rear Compartment (Grids 28-31)

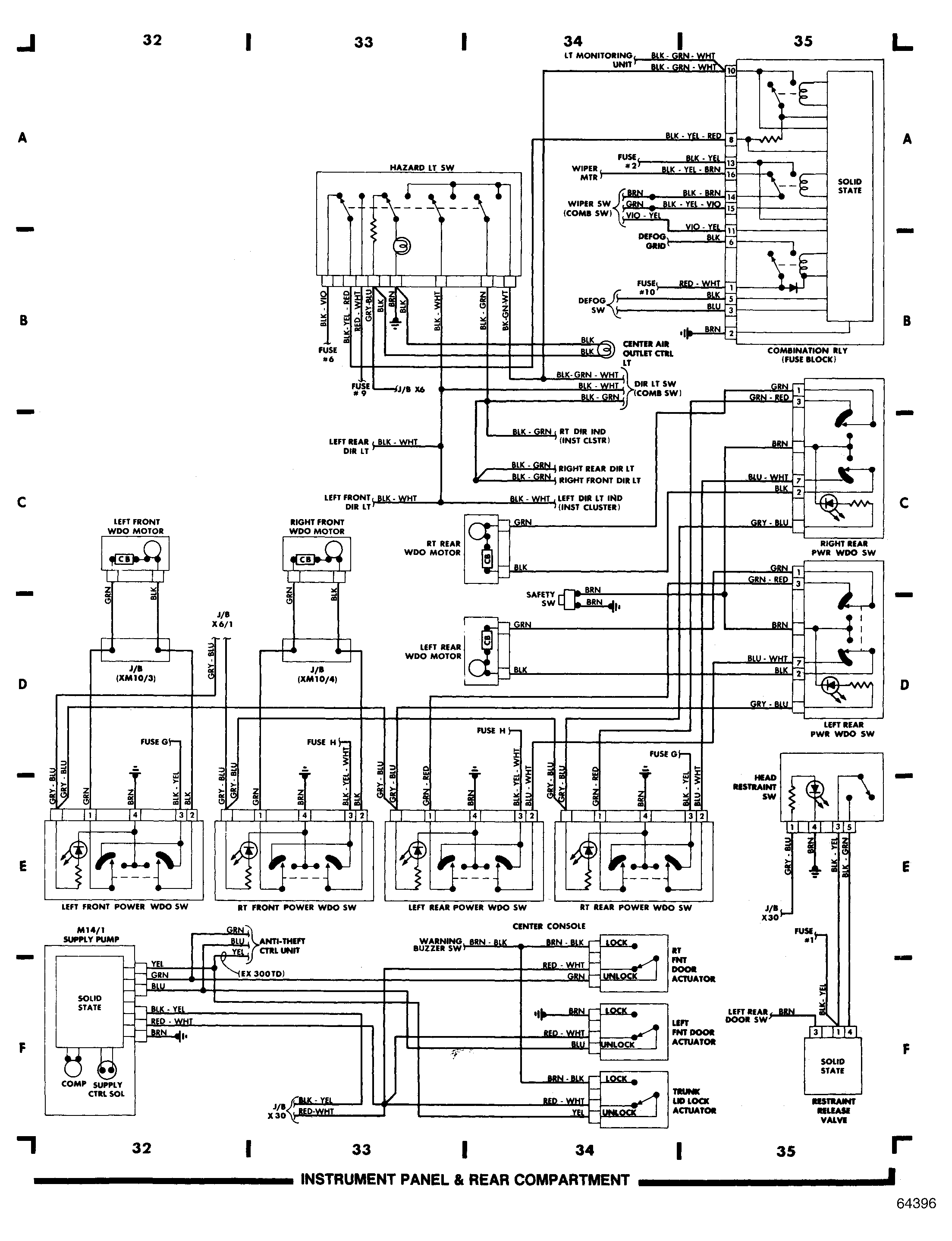

Fig 9: Instrument Panel & Rear Compartment (Cont.) (Grids 32-35)

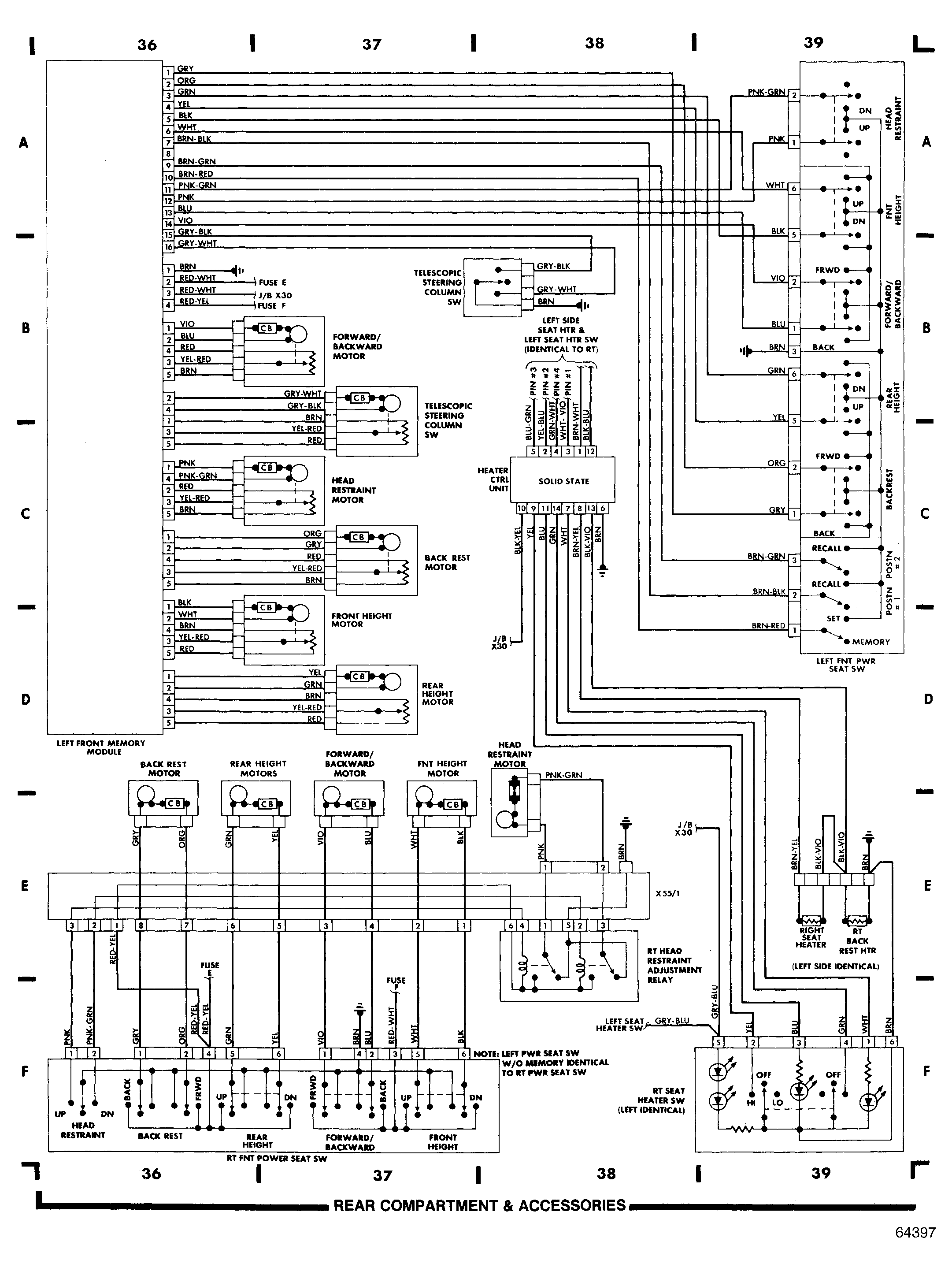

Fig 10: Rear Compartment (Cont.) & Accessories (Grids 36-39)

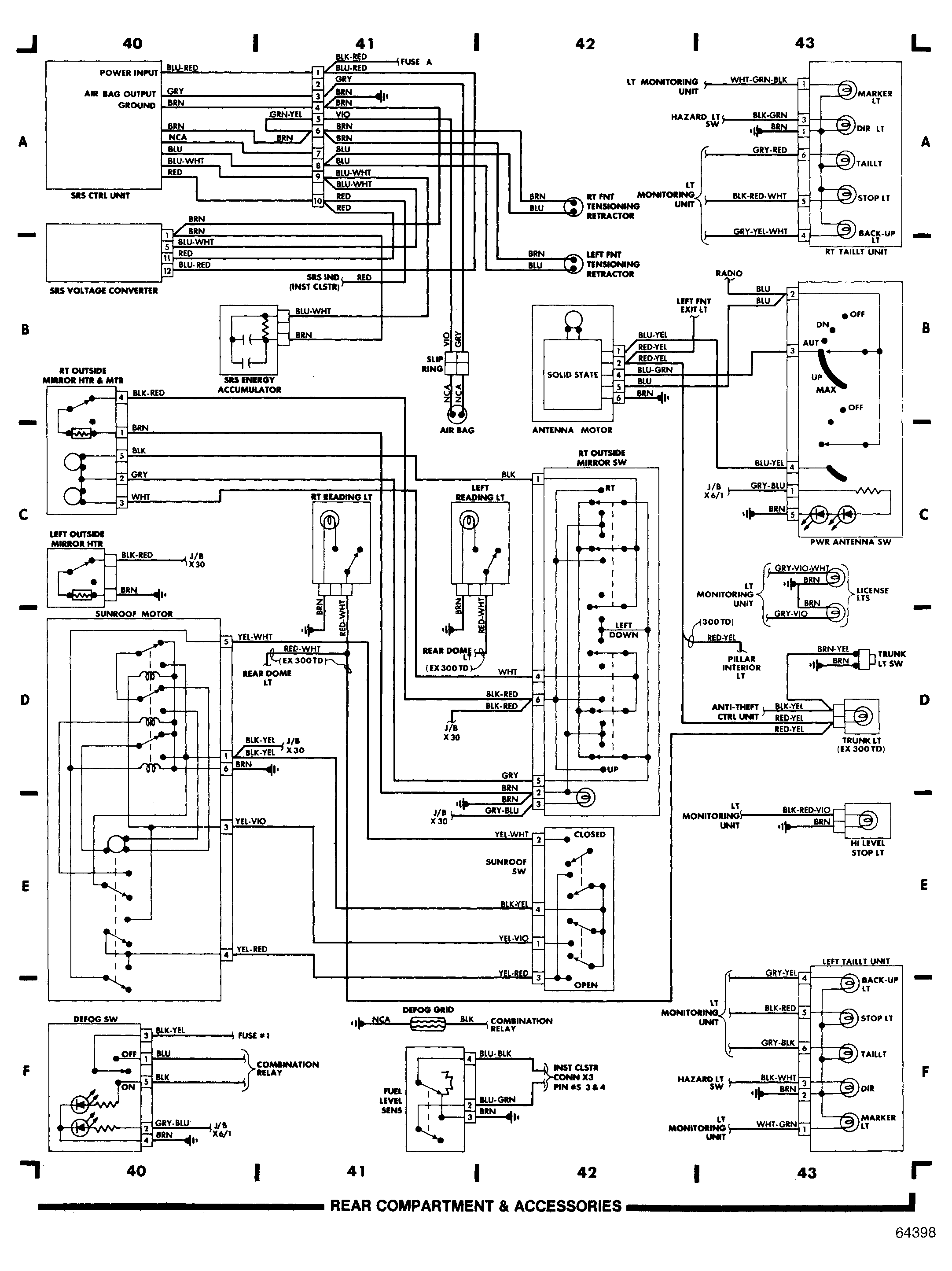

Fig 11: Rear Compartment & Accessories (Cont.) (Grids 40-43)
