Control Pressure Cable: 300SDL

  1. Engine throttle control must be correctly adjusted before adjusting pressure control cable. Disconnect control pressure cable at bellcrank.

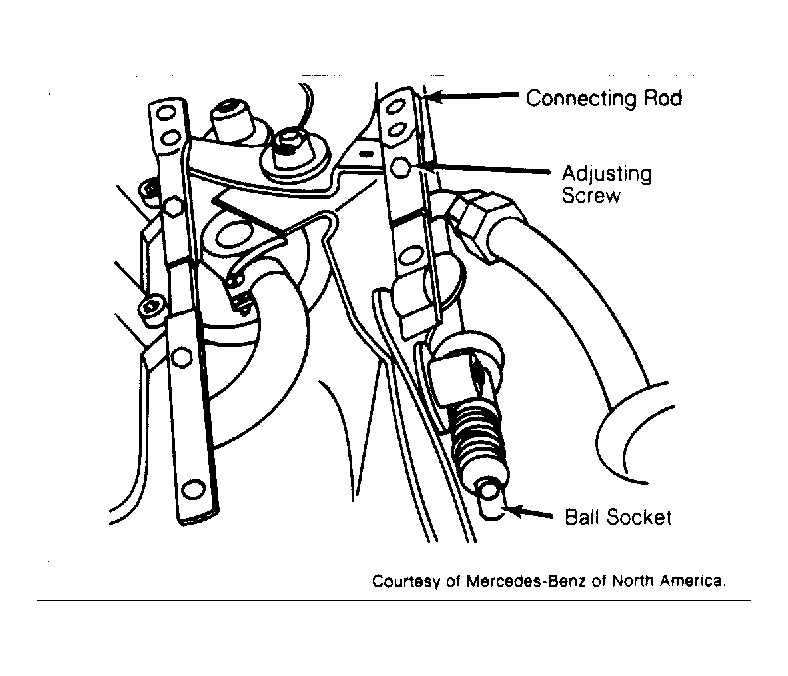

  2. Pull pressure control cable forward until resistance is felt. Hold ball socket in this position. Ball socket should fit freely into ball. Adjust cable length, if necessary. See Figure .
