Control Pressure Cable: 190D

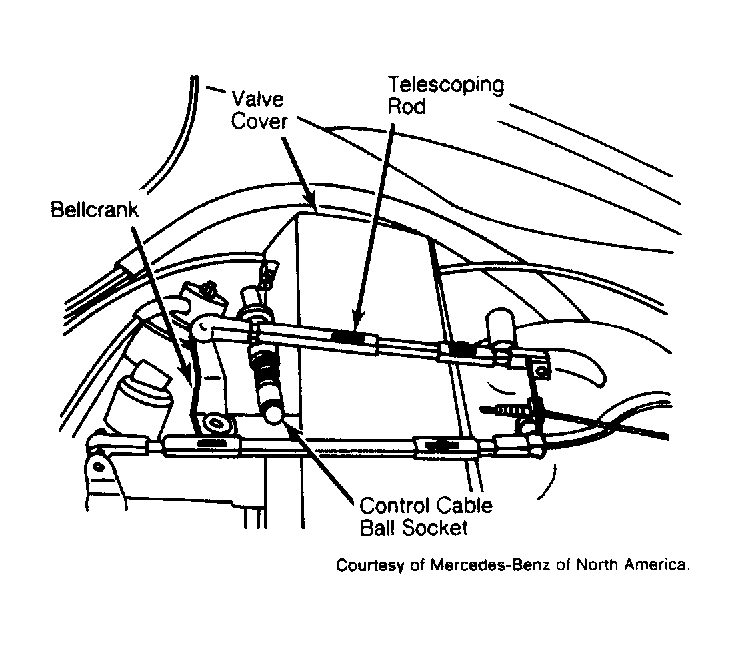

Disconnect control cable at bellcrank. Extend telescoping rod to maximum length. See Fig 1 . Pull control cable forward until a slight resistance is felt. Hold ball socket in this position. Ball socket should fit freely into ball. Adjust rod length, if necessary.
