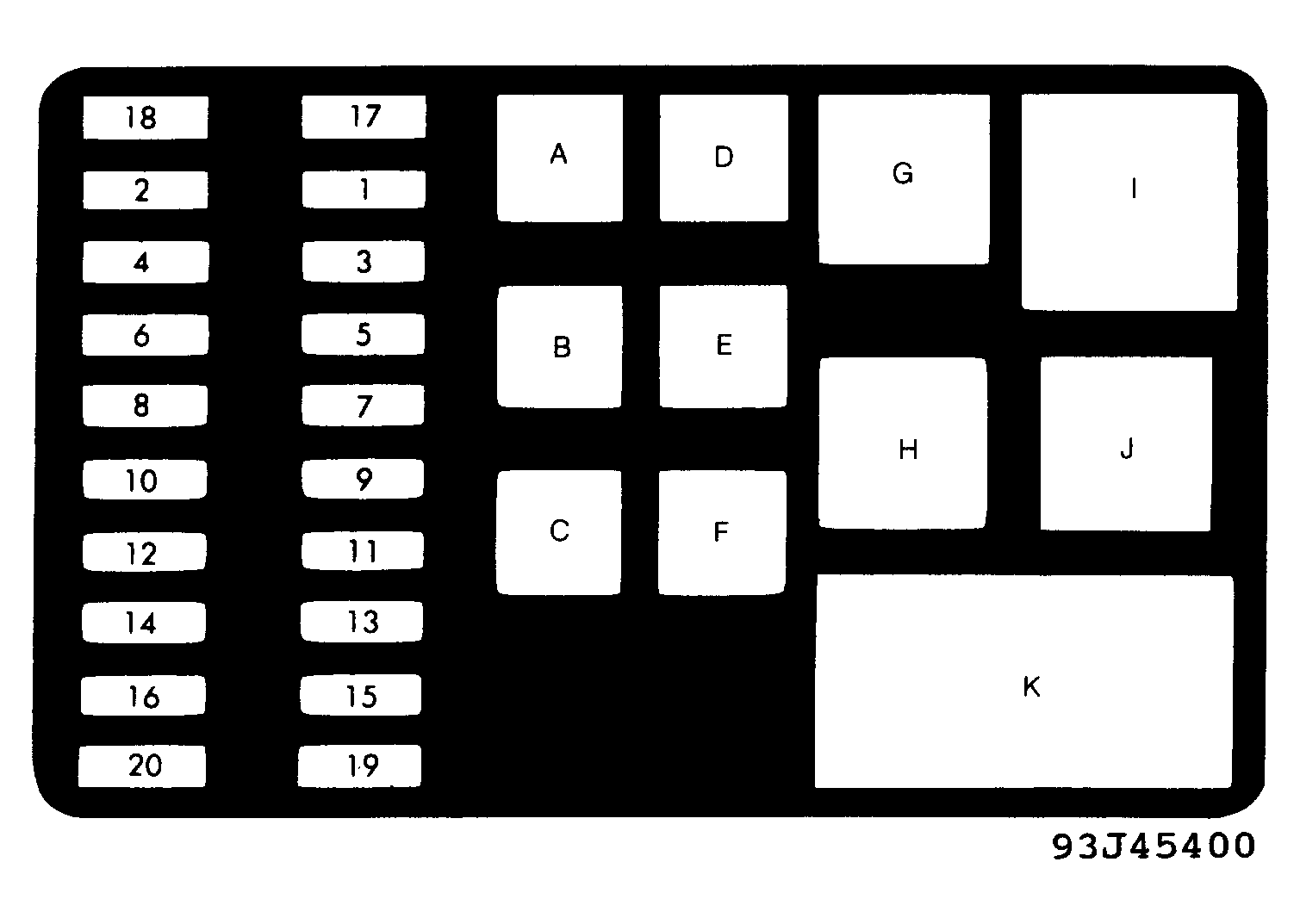

Fuse Block Identification
The fuse block is located in the engine compartment. The fuse specifications are listed on the fuse block lid.
- 1 - 8 Amp Marker & License Lights, Right Side Park & Taillights, Radio & Warning System, Instrument Illumination
- 2 - 8 Amp Headlights (Right High Beam & Indicator)
- 3 - 8 Amp Left Side Park & Taillights
- 4 - 8 Amp Headlights (Left High Beam)
- 5 - 25 Amp Power Seats
- 6 - 16 Amp Headlights (Right Low Beam), Foglights
- 7 - 16 Amp Headlights (Flash), Wipers/Washers & Right Outside Mirror, Power Windows & Seats
- 8 - 8 Amp Headlights (Left Low Beam)
- 9 - 8/16 Amp Glove Box Light & Radio, Wiper/Washer & Cigarette Lighter, Orthopedic Seats (1984), Heated Front Seats (16 Amp)
- 10 - 8 Amp Transmission Kickdown, Outside Temperature Gauge, Back-Up Lights & Auxiliary Fan, Automatic Climate Control
- 11 - 25 Amp Automatic Climate Control
- 12 - 8 Amp Spot & Turn Signal Lights, Gauges & Cruise Control, Warning Indicators & Warning System, Anti-Lock Brake System (1985), Anti-Theft Alarm System (1985)
- 13 - 8 Amp Seat Backrest Locking System, Clock & Radio, Central Locking System & Hazard Lights, Diagnostic Socket
- 14 - 25 Amp Rear Cigarette Lighters & Defogger, Heated Rear Seats & Seat, Belt Extenders, Horns & Warning System
- 15 - 8 Amp Seat Belt Extenders & Automatic Antenna, Trunk & Courtesy Lights, Anti-Theft Alarm & Warning Systems
- 16 - 16 Amp Rear Seat Adjustment & Sliding Roof
- 17 - 16 Amp Power Windows (Right Front & Left Rear)
- 18 - 16 Amp Power Windows (Left Front & Right Rear)
- 19 - 25 Amp Auxiliary Fan
- 20 - Blank
