Removal (Rear)

Raise and support vehicle. Remove rear wheel and tire. Disconnect and plug brake lines. Remove caliper assembly.
Using rear axle shaft Assembly Tool (116 589 24 61 00), pull rotor out from axle shaft flange. See Fig 1 .

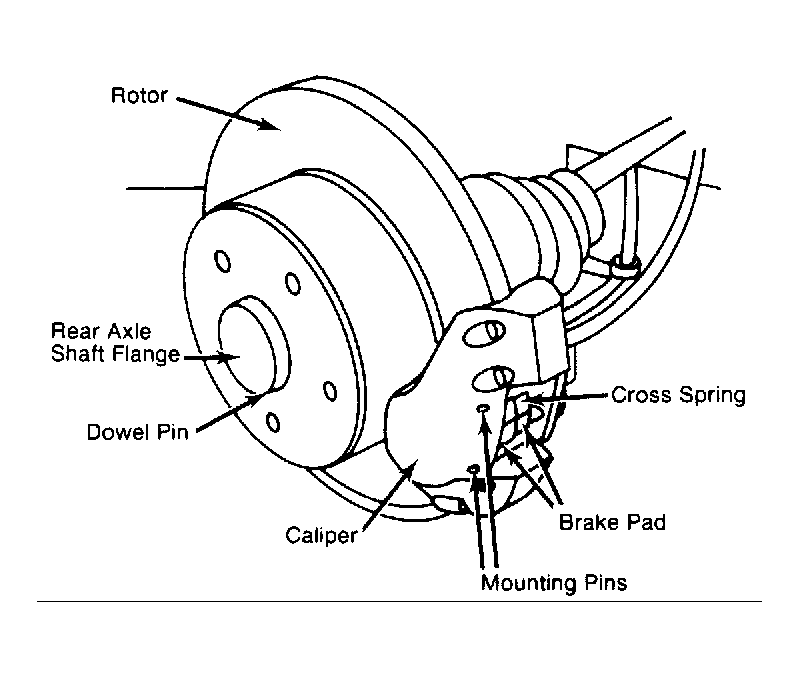

Fig 1: Assembled View of Rear Rotor & Caliper With the caliper removed, the rotor will pull free.
