Fuse Blocks, Flashers & Relays MERCEDES-BENZ - 190D, 190E, 300TD, 380SE, 380SL, 500SEC & 500SEL: Identification

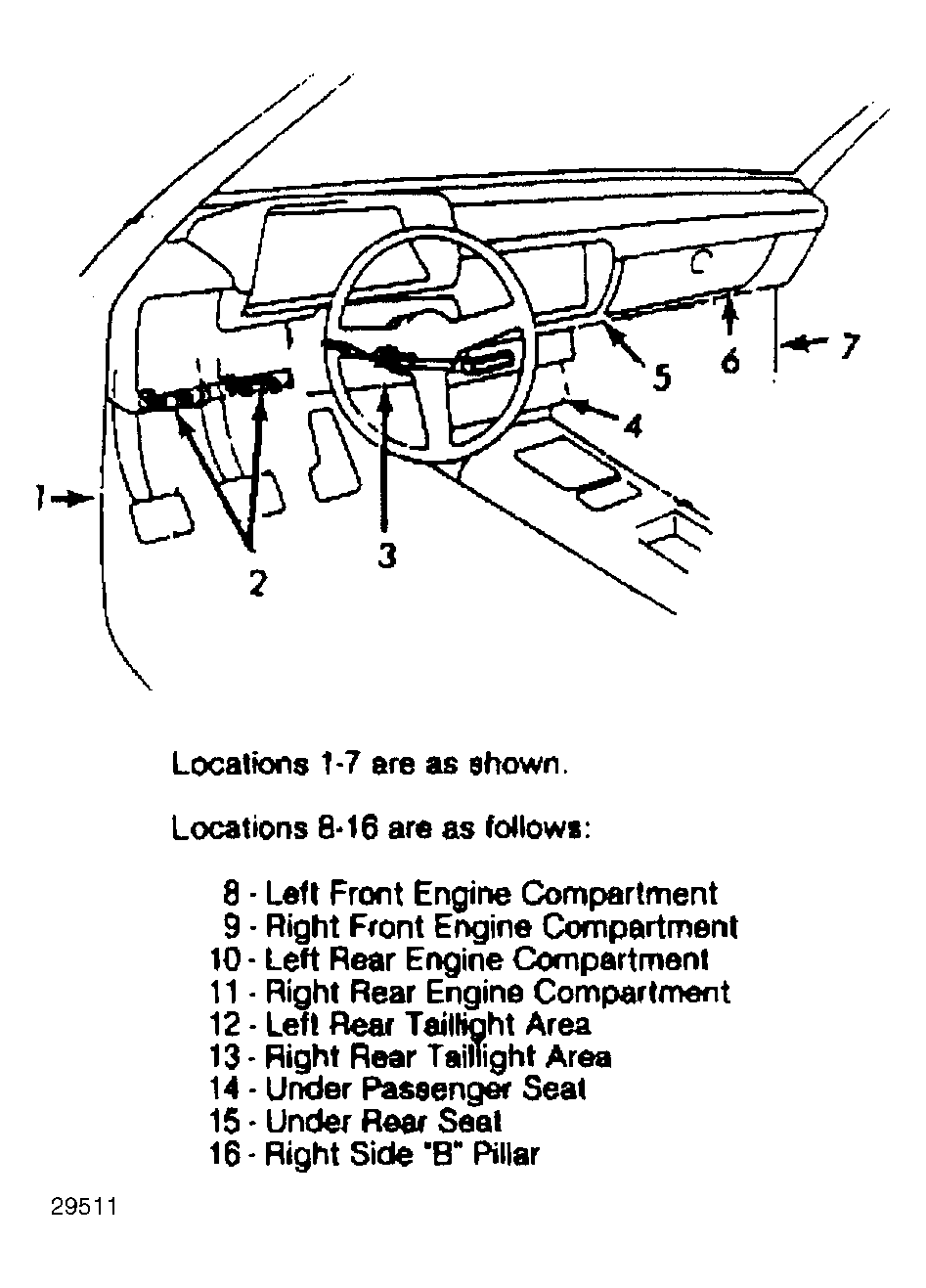

Fig 1: Fuse & Flasher Locations

FUSE BLOCKS, FLASHERS & RELAYS (190D & 190E)

Component	(1) Location
Fuse Locations	(10)
Flasher Locations	(4)
Relay Locations	(2)
(1) For component locations, see Fig 1.

FUSE BLOCKS, FLASHERS & RELAYS (300TD, 380SE, 380SL, 500SEC & SEL)

Component		(1) Location
Fuse Locations		(10)
Flasher Locations		(4)
Relay Locations
Antenna		(2)
Power Windows		(1)
Others		(2)
(1) For component locations, see Fig 1.
