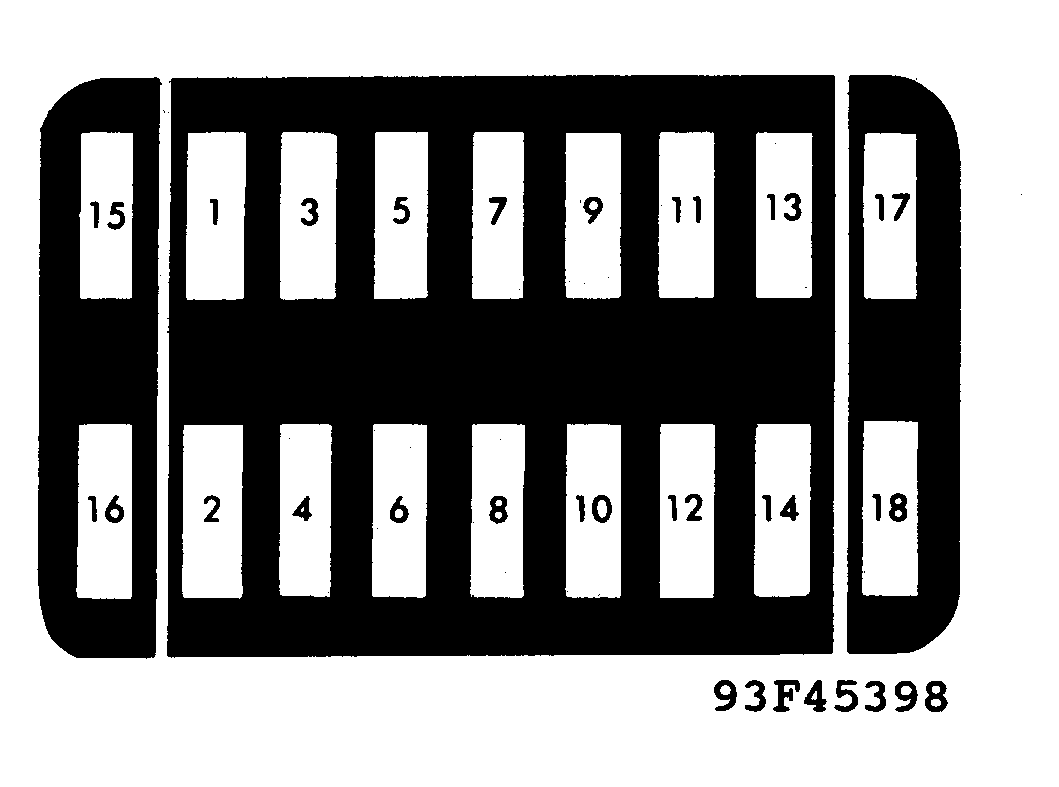

Fuse Box Identification
The fuse box is located in the engine compartment. The fuse specifications are on a label on the fuse box lid.
- 1 - 8 Amp Illumination, Marker & License Lights, Right Side Park & Taillights, Warning System
- 2 - 8 Amp Radio & Automatic Antenna, Clock & Warning System, Courtesy, Trunk & Hazard Lights, Seat Backrest Locking System
- 3 - 8 Amp Left Side Park & Taillights
- 4 - 8/16 Amp Radio & Cigarette Lighter, Glove Box Light & Right Outside Mirror, Heated Front Seats (16 Amp)
- 5 - Blank
- 6 - 16 Amp Headlights (Flash), Wiper & Washer
- 7 - 8 Amp Headlights (Right High Beam)
- 8 - 16 Amp Automatic Climate Control
- 9 - 8 Amp Headlights (Left High Beam & Indicator)
- 10 - 16/25 Amp Rear Defogger (16 Amp), Rear Heated Seats (25 Amp)
- 11 - 16 Amp Headlights (Right Low Beam), Foglights
- 12 - 8 Amp Turn Signal & Stoplights, Power Windows & Cruise Control, Gauges & Warning Indicators
- 13 - 8 Amp Headlights (Left Low Beam)
- 14 - 8 Amp Automatic Climate Control & Auxiliary Fan, Backup Lights & Transmission Kickdown, Engine Overload Protection, Horns & Warning System
- 15 - 16 Amp Power Windows (Right Front & Left Rear)
- 16 - 16 Amp Power Windows (Left Front & Right Rear)
- 17 - 16 Amp Auxiliary Fan
- 18 - 16 Amp Sliding Roof
