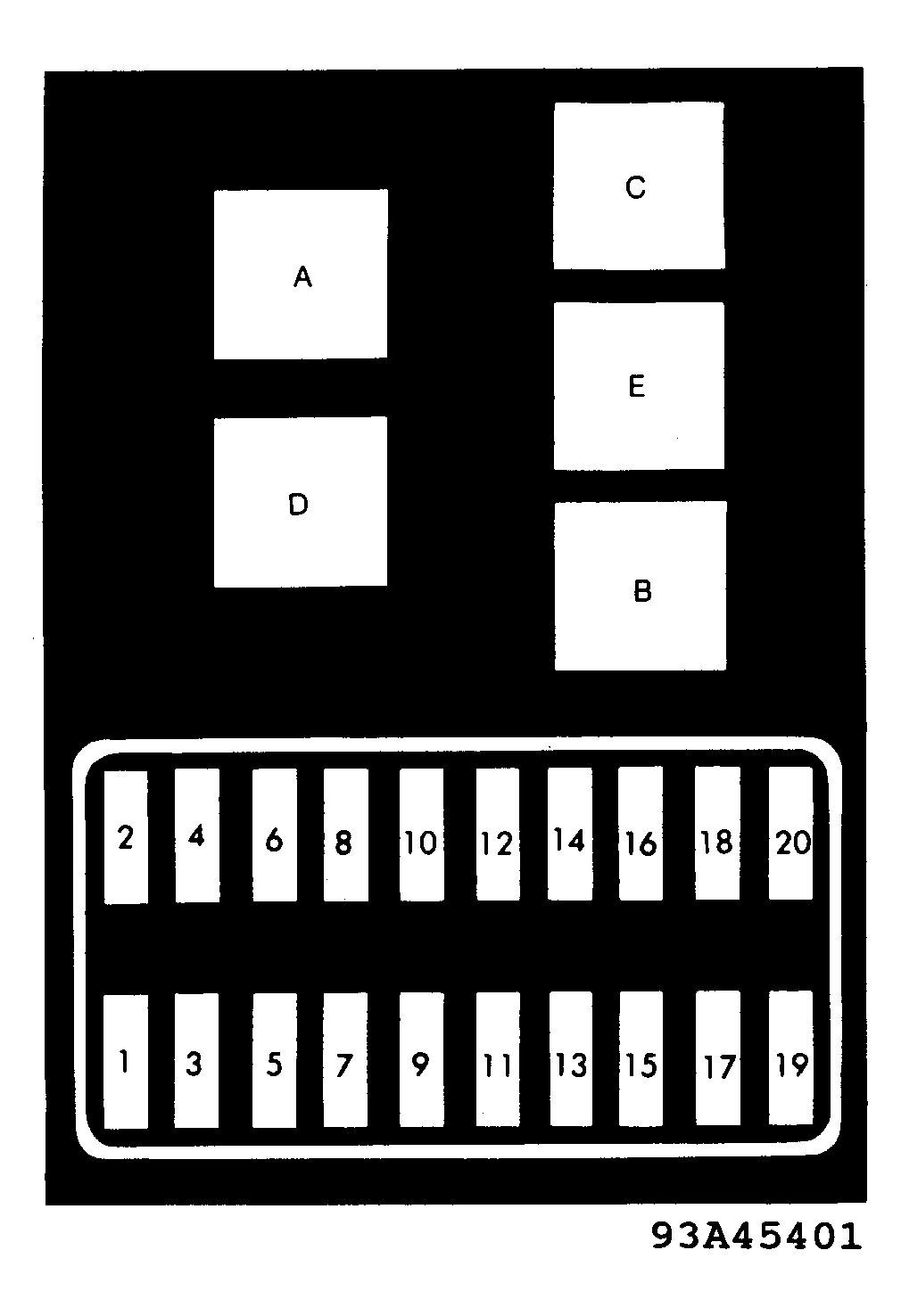

Fuse Box Identification
The fuse box is located in the engine compartment. The fuse specifications are on a label on the fuse box lid.
- 1 - 8 Amp Cigarette Lighter & Radio, Glove Box Light & Heated Seats, Right Outside Mirror
- 2 - 16 Amp Headlights & Wipers/Washer
- 3 - 16 Amp Left Side Power Window
- 4 - 16 Amp Right Side Power Window
- 5 - 8 Amp Stop, Turn Signal & Hazard Lights, Cruise Control & Power Windows, Warning System & Indicators
- 6 - 16 Amp Automatic Climate Control
- 7 - 8 Amp Air Injection & Auxiliary Fan, Climate Control & Back-Up Lights, Warning System
- 8 - 8 Amp Horns
- 9 - Blank
- 10 - 16 Amp Rear Defogger
- 11 - Blank
- 12 - 8 Amp Clock & Radio, Courtesy, Hazard & Trunk Lights, Warning System & Automatic Antenna
- 13 - 8 Amp Instrument Illumination & Warning System, Marker, License & Right Side Park & Taillights
- 14 - 16 Amp Auxiliary Fan
- 15 - Blank
- 16 - 8 Amp Left Side Park & Taillights
- 17 - 8 Amp Headlights (Right High Beam & Indicator)
- 18 - 8 Amp Headlights (Left High Beam)
- 19 - 16 Amp Headlights (Right Low Beam), Foglights
- 20 - 8 Amp Headlights (Left Low Beam)
